SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant DL580 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Sep 04, 2014
SPEC license #: 3 Hardware Availability: Mar-2014 Software Availability: Aug-2014 Publication: Oct 03, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant DL580 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableMar-2014
ModelHP ProLiant DL580 Gen8
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15 Core, 2.80GHz, Turbo Boost Technology up to 3.40 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionP79 05/09/2014
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SAS SSD
File SystemEXT3
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768 MB
Memory Details32 GB 4Rx4 PC3-14900R-13 ECC CL11
# and type of Network Interface Cards (NICs)1 x HP 331FLR 4 Port 1 Gbit Adapter
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 11 SP3
VendorSUSE
Vendor URLhttp://www.suse.com
VersionSP3 - 3.0.101-0.35-default
AvailableJul-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u20
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_20
AvailableAug-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration:
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • Memory Refresh Rate = 1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx150g -Xms150g -Xmn128g -XX:LargePageSizeInBytes=2m -XX:ParallelGCThreads=30 -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=90 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 209101 211151 213201 215251 217301
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 7175 66625 76533 93275 107626 51641
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2050 - / 2050 - / 2050 - / 2050 - / 2050 - / 2050
1000us 2050 / 4100 - / 2050 - / 2050 - / 2050 - / 2050 - / 2050
5000us 106601 / 108651 61500 / 59450 16400 / 18450 14350 / 16400 4100 / 6150 - / 2050
10000us 108651 / 110701 102500 / 104551 67650 / 69700 47150 / 45100 6150 / 8200 - / 2050
20000us 108651 / 110701 106601 / 108651 98400 / 100450 90200 / 86100 8200 / 10250 - / 2050
50000us 110701 / 112751 106601 / 108651 100450 / 102500 98400 / 100450 67650 / 65600 - / 2050
100000us 110701 / 112751 108651 / 110701 102500 / 104551 98400 / 100450 77900 / 73800 - / 2050
200000us 112751 / 114801 110701 / 112751 106601 / 108651 102500 / 104551 92250 / 94300 20500 / 18450
500000us 211151 / 182451 114801 / 116851 110701 / 112751 108651 / 110701 106601 / 108651 92250 / 71750
1000000us 213201 / - 211151 / 209101 147601 / 139401 120951 / 123001 112751 / 114801 102500 / 104551

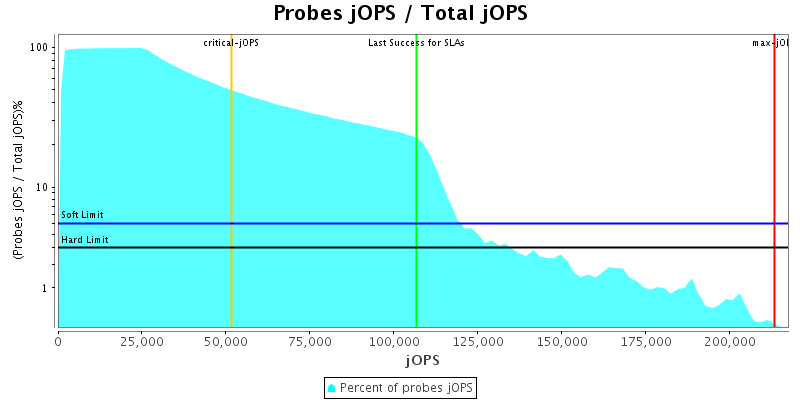

Number of probes
Probes jOPS / Total jOPS

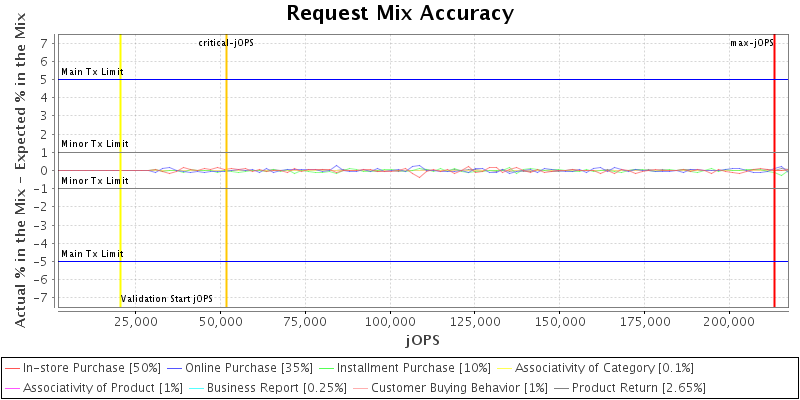

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

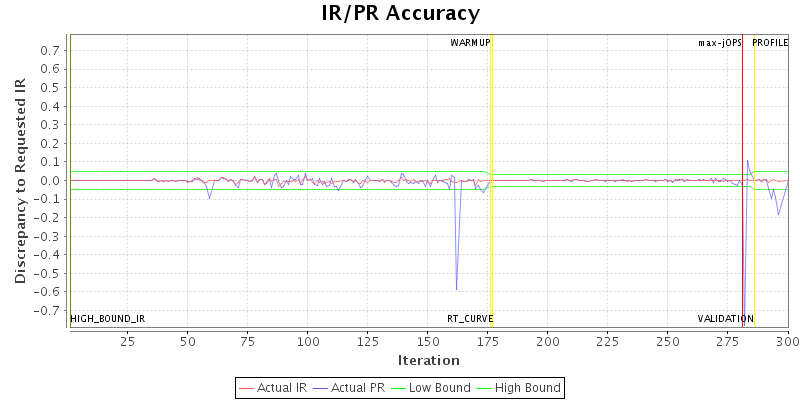

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 120 140
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 205001 IR
High-bound (settled) is 201321 IR
