Cisco Systems Cisco UCS C460 M4 CODE DEFECT (CD) RESULT
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: August 17,2014
SPEC license #: 9019 Hardware Availability: Apr-2014 Software Availability: Jul-2014 Publication: Oct 16, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C460 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableApr-2014
ModelCisco UCS C460 M4
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15-Core, 2.80GHz (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionNone
CPU Frequency (MHz)2800
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache37.5 MB (I+D) on chip per chip
Other CacheNone
Disk1x 100GB SSD
File SystemEXT3
Memory Amount (GB)2048
# and size of DIMM(s)64 x 32768MB (Slots - MEM RSR1(A1,A2,B1,B2,C1,C2,D1,D2), MEM RSR2(A1,A2,B1,B2,C1,C2,D1,D2), MEM RSR3(A1,A2,B1,B2,C1,C2,D1,D2), MEM RSR4(A1,A2,B1,B2,C1,C2,D1,D2), MEM RSR5(A1,A2,B1,B2,C1,C2,D1,D2), MEM RSR6(A1,A2,B1,B2,C1,C2,D1,D2), MEM RSR7(A1,A2,B1,B2,C1,C2,D1,D2), MEM RSR8(A1,A2,B1,B2,C1,C2,D1,D2) populated)
Memory Details32GB 4Rx4 PC3L-12800L-11-12-C0
# and type of Network Interface Cards (NICs)1 X 10 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1400 Watts
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.5 (Santiago)
AvailableDec-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_11
AvailableJul-2014
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory RAS Configuration set to Maximum Performance
  • Processor C6 state set to enabled
  • Processor C1E set to disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms320g -Xmx320g -Xmn280g -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=30
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6G -Xms6G -Xmn5G -XX:+UseParallelOldGC
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 213073 215046 217019 218992 220965
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 34526 83848 86150 95028 109495 76353
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 5919 / 7892 3946 / 5919 1973 / 3946 - / 1973 - / 1973 - / 1973
5000us 108509 / 110482 92726 / 94699 23675 / 25648 21702 / 23675 7892 / 9864 - / 1973
10000us 110482 / 112455 106537 / 108509 72997 / 74970 61160 / 63133 41431 / 27621 - / 1973
20000us 110482 / 112455 106537 / 108509 100618 / 102591 96672 / 94699 72997 / 67079 - / 1973
50000us 110482 / 112455 108509 / 110482 102591 / 104564 98645 / 100618 84835 / 82862 37485 / 3946
100000us 110482 / 112455 110482 / 112455 104564 / 106537 102591 / 104564 92726 / 82862 47350 / 5919
200000us 118374 / 116401 110482 / 112455 106537 / 108509 106537 / 108509 96672 / 86808 47350 / 5919
500000us 185453 / 163751 130211 / 120347 112455 / 114428 110482 / 112455 110482 / 108509 90753 / 82862
1000000us 215046 / - 211100 / 189398 145995 / 138103 134157 / 136130 118374 / 120347 100618 / 102591

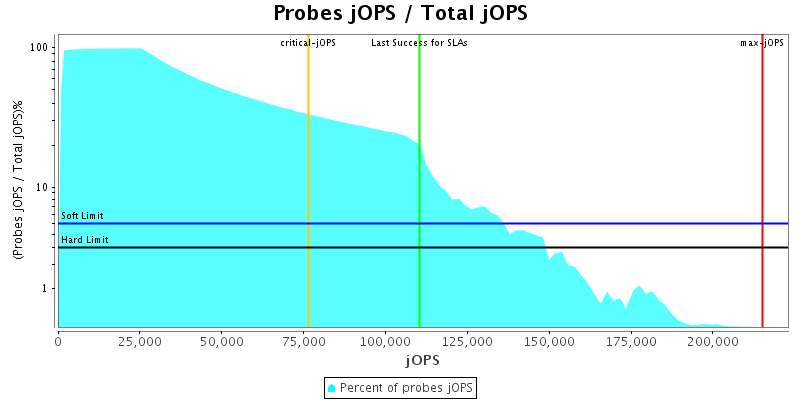

Probes jOPS / Total jOPS

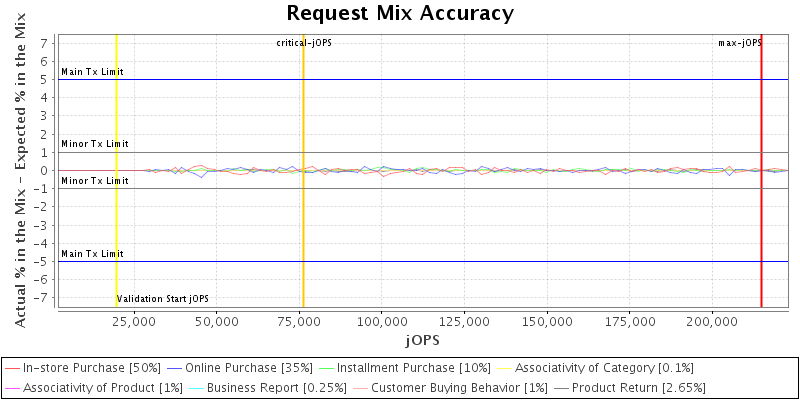

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

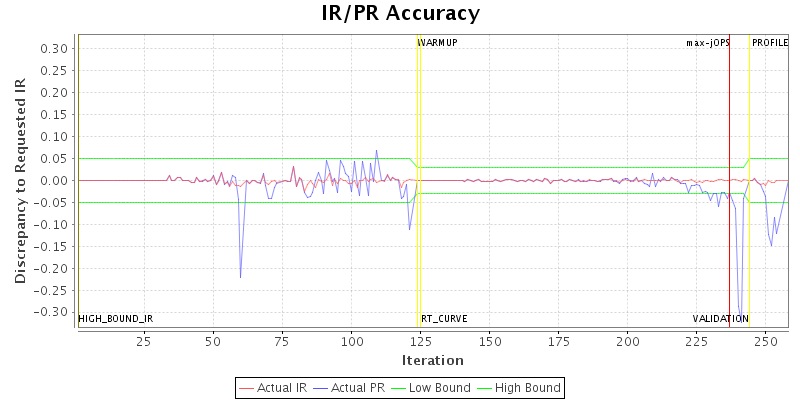

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 120 105
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 1000000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 182877 IR
