Hewlett-Packard Company HP ProLiant ML350 Gen9 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Aug 25, 2014
SPEC license #: 3 Hardware Availability: Sep-2014 Software Availability: Jul-2014 Publication: Sep 18, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

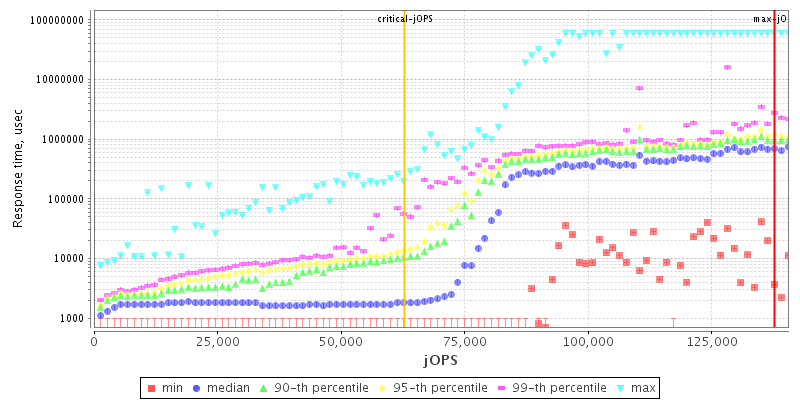

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant ML350 Gen9
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableSep-2014
ModelHP ProLiant ML350 Gen9
Form Factor5U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18 Core, 2.30 GHz, 45 MB L3 Cache (Turbo Boost up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionP92 07/11/2014
CPU Frequency (MHz)2300
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache45 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB 12 G SSD SAS RAID 0
File SystemEXT3
Memory Amount (GB)512
# and size of DIMM(s)16 x 32678 GB
Memory Details32 GB 4Rx4 PC4-2133L-R-10
# and type of Network Interface Cards (NICs)1 x HP 331FLR Quad Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 11 SP3
VendorSUSE
Vendor URLhttp://www.suse.com
VersionSP3 kernel 3.0.101-0.35-default
AvailableJul-2013
Bitness64
Notes
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Java Virtual Machine jvm_1
NameOracle Java SE 8u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_11
AvailableJul-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • QPI Snoop COnfiguration= Early Snoop
  • Memory Refresh Rate = 1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx470g -Xms470g -Xmn390g -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:ParallelGCThreads=72 -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=398 -XX:TargetSurvivorRatio=90 -XX:MaxTenuringThreshold=15 -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 134986 136350 137713 139077 140440
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 41586 60675 66129 71356 82491 62869
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1363 - / 1363 - / 1363 - / 1363 - / 1363 - / 1363
1000us 73629 / 74992 - / 1363 - / 1363 - / 1363 - / 1363 - / 1363
5000us 81810 / 83173 73629 / 74992 39541 / 40905 24543 / 25906 16362 / 17725 - / 1363
10000us 81810 / 83173 76356 / 77719 61357 / 62721 54540 / 55903 40905 / 42268 4090 / 5454
20000us 83173 / 84537 77719 / 79083 70902 / 72265 66811 / 68175 54540 / 55903 17725 / 10908
50000us 83173 / 84537 80446 / 81810 73629 / 74992 70902 / 72265 64084 / 57267 24543 / 10908
100000us 84537 / 85900 81810 / 83173 76356 / 77719 76356 / 74992 65448 / 66811 47722 / 10908
200000us 122715 / 102262 83173 / 84537 80446 / 79083 77719 / 79083 73629 / 66811 62721 / 51813
500000us 137713 / - 124078 / 110443 92718 / 94081 85900 / 87264 81810 / 83173 73629 / 66811
1000000us 137713 / - 137713 / - 137713 / 134986 130896 / 110443 124078 / 107716 80446 / 68175

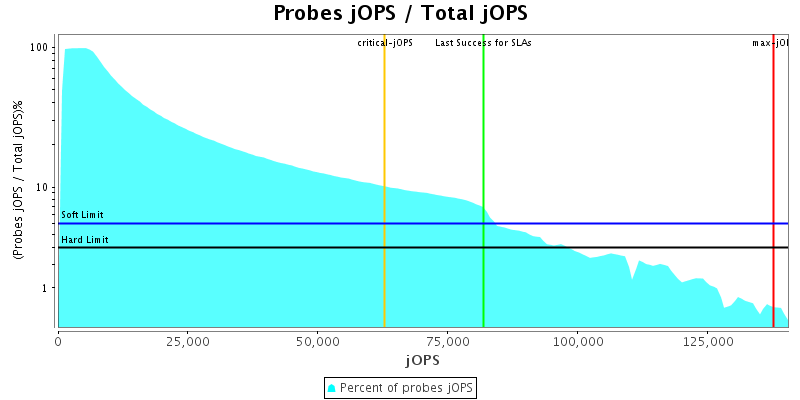

Probes jOPS / Total jOPS

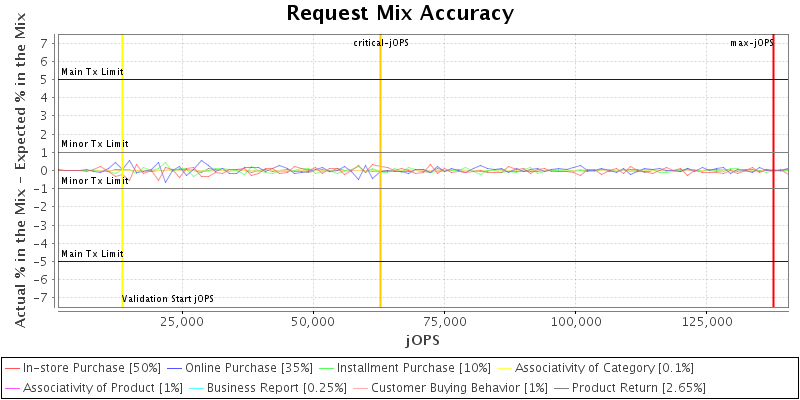

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

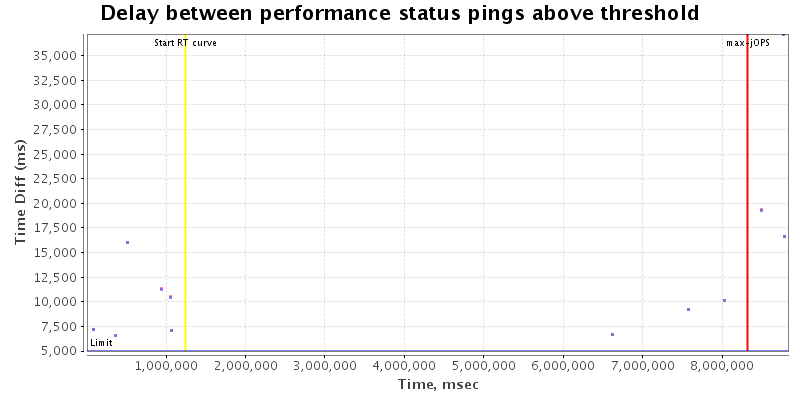

Delay between status pings

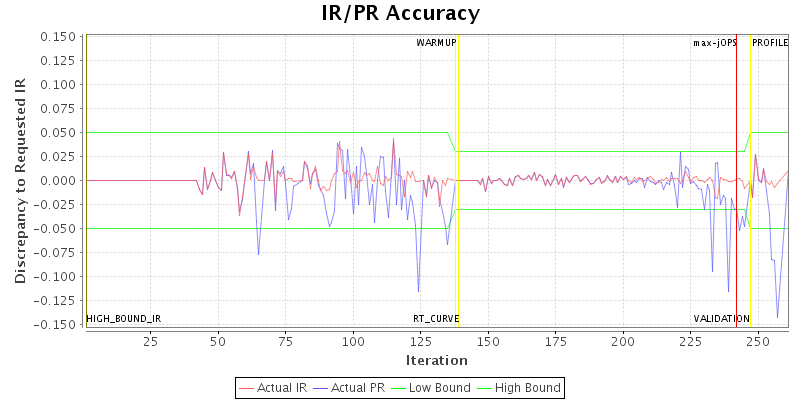

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 480
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {=64, saturate=128}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 136350 IR
High-bound (settled) is 130653 IR
