Cisco Systems Cisco UCS C220 M4 CODE DEFECT (CD) RESULT
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: August 24, 2014
SPEC license #: 9019 Hardware Availability: Dec-2014 Software Availability: Aug-2014 Publication: Sep 26, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

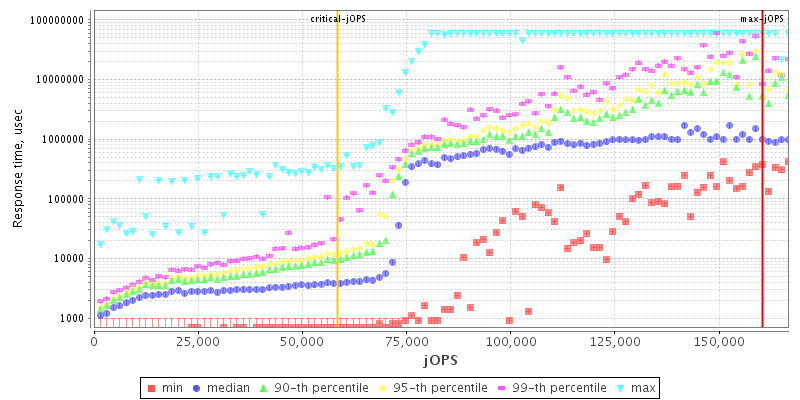

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C220 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableDec-2014
ModelCisco UCS C220 M4
Form Factor1RU
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 300GB 15K SAS
File Systemext4
Memory Amount (GB)1024GB
# and size of DIMM(s)16 x 64GB
Memory Details64GB 2S 4Rx4 PC4-2133P-RA0-10-DC0-ES
# and type of Network Interface Cards (NICs)2 X 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 770W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u20
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava Hotspot 64-bit Server VM, version 1.8.0_20
AvailableAug-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory RAS Configuration set to Maximum Performance
  • Processor C6 state set to enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms400g -Xmx400g -Xmn340g -XX:SurvivorRatio=26 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g -XX:ParallelGCThreads=9
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 158727 160283 161840 163396 164952
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 38385 58096 59911 69249 73917 58478
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1556 - / 1556 - / 1556 - / 1556 - / 1556 - / 1556
1000us 4668 / 6225 - / 1556 - / 1556 - / 1556 - / 1556 - / 1556
5000us 73139 / 74695 68471 / 70027 34235 / 35791 23342 / 24898 17118 / 18674 - / 1556
10000us 73139 / 74695 71583 / 73139 59134 / 60690 51353 / 52909 40460 / 37348 - / 1556
20000us 73139 / 74695 71583 / 73139 70027 / 71583 66914 / 68471 54465 / 46684 1556 / 3112
50000us 74695 / 76251 73139 / 74695 70027 / 71583 70027 / 68471 59134 / 56021 26455 / 10893
100000us 74695 / 76251 73139 / 74695 70027 / 71583 70027 / 71583 63802 / 56021 40460 / 10893
200000us 82476 / 79364 74695 / 76251 71583 / 73139 70027 / 71583 70027 / 68471 40460 / 10893
500000us 121380 / 112043 85588 / 87144 74695 / 76251 74695 / 76251 73139 / 74695 63802 / 60690
1000000us 160283 / - 160283 / 133829 99594 / 94925 88701 / 90257 82476 / 79364 68471 / 70027
Probes jOPS / Total jOPS

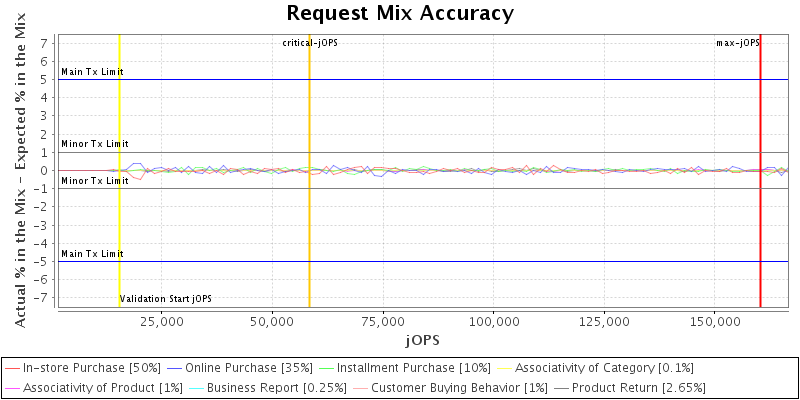

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

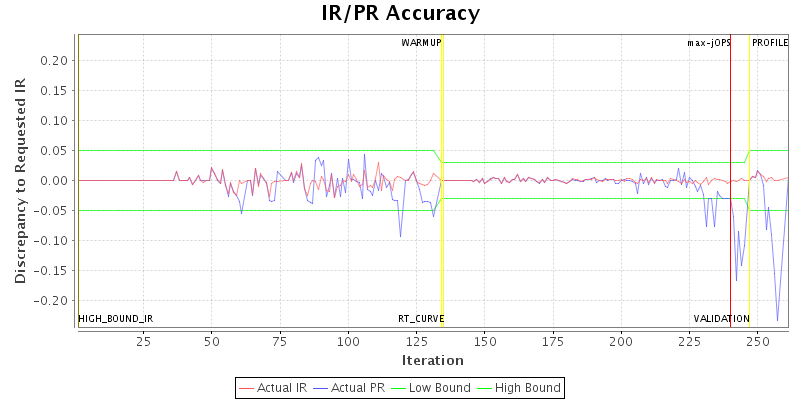

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.forkjoin.workers 72 90
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 155615 IR
High-bound (settled) is 146120 IR
