Hewlett-Packard Company HP ProLiant DL580 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 22, 2014
SPEC license #: 3 Hardware Availability: Feb-2014 Software Availability: Mar-2014 Publication: Apr 17, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

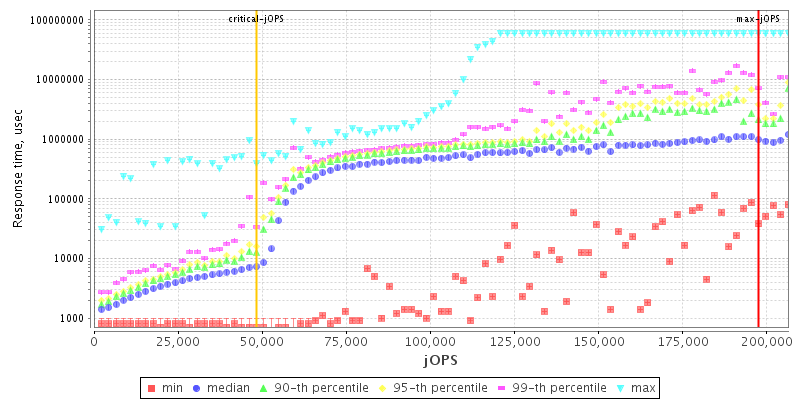

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL580 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableFeb-2014
ModelHP ProLiant DL580 Gen8
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15 Core, 2.80 GHz, 37.5 MB L3 Cache
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionP79 02/21/2014
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 400 GB SAS SSD RAID 1
File SystemEXT3
Memory Amount (GB)1024
# and size of DIMM(s)64 x 16384 MB
Memory Details2Rx4 PC3-14900R-13 ECC
# and type of Network Interface Cards (NICs)1 x HP 331FLR 4 Port 1 Gbit Adapter
Power Supply Quantity and Rating (W)3 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.5 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.5 (Santiago)
AvailableDec-2013
Bitness64
Notes
  • SE Linux = Disabled
  • "GOVERNOR=performance" was set in /etc/sysconfig/cpuspeed
Java Virtual Machine jvm_1
NameOracle Java SE 8
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0
AvailableMar-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration:
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • Thermal Configuration = Maximum Cooling
  • Memory Double Refresh Rate = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms4g -Xmn3g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx240G -Xms240G -Xmn220G -XX:+UseParallelOldGC -XX:+UseLargePages -XX:ParallelGCThreads=30 -XX:-UseBiasedLocking -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6G -Xms6G -Xmn5G -XX:+UseParallelOldGC -XX:ParallelGCThreads=6 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 195286 197481 199675 201869 204063
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 29987 47176 49370 55953 66265 48155
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2194 - / 2194 - / 2194 - / 2194 - / 2194 - / 2194
1000us - / 2194 - / 2194 - / 2194 - / 2194 - / 2194 - / 2194
5000us 52662 / 54856 32913 / 35108 21942 / 24137 19748 / 21942 8777 / 10971 - / 2194
10000us 54856 / 57050 50467 / 52662 41690 / 43885 41690 / 39496 32913 / 28525 - / 2194
20000us 54856 / 57050 52662 / 54856 48273 / 50467 48273 / 50467 41690 / 43885 - / 2194
50000us 59244 / 61438 54856 / 57050 52662 / 54856 50467 / 52662 48273 / 46079 24137 / 8777
100000us 63633 / 65827 57050 / 59244 54856 / 57050 52662 / 54856 52662 / 46079 32913 / 8777
200000us 153596 / 98740 61438 / 63633 57050 / 59244 57050 / 59244 54856 / 57050 32913 / 8777
500000us 188704 / 177733 111906 / 107517 76798 / 78992 72410 / 74604 68021 / 59244 52662 / 43885
1000000us 197481 / - 197481 / 186510 147013 / 136042 129460 / 131654 107517 / 109711 70215 / 59244

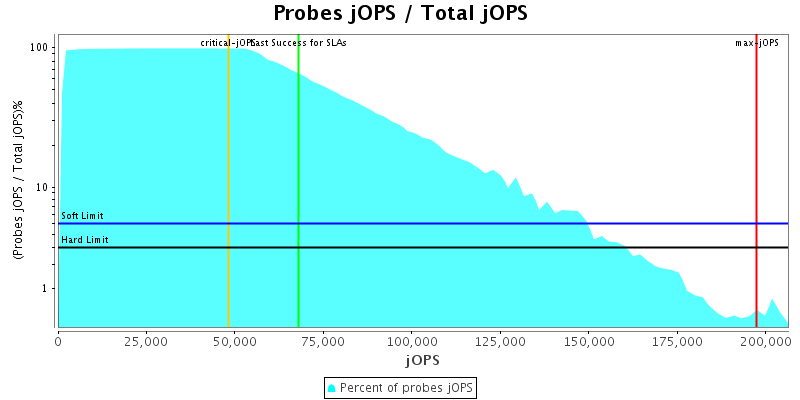

Probes jOPS / Total jOPS

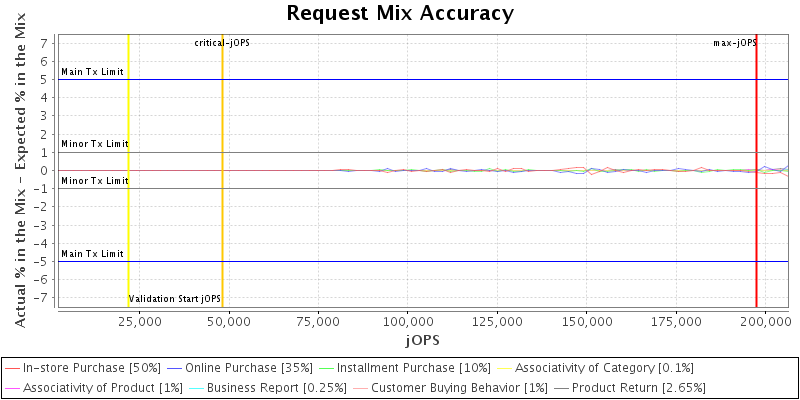

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

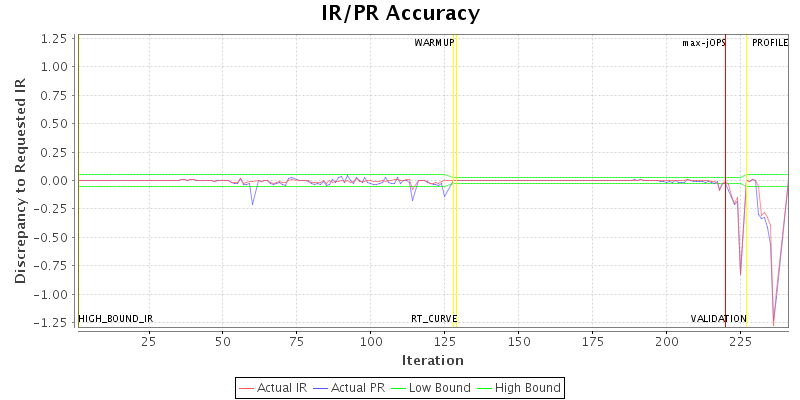

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.customerDriver.threads 64 192
specjbb.forkjoin.workers 120 90
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 219423 IR
High-bound (settled) is 210265 IR
