SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant ML350p Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Nov 28, 2013
SPEC license #: 3 Hardware Availability: Sep-2013 Software Availability: Oct-2013 Publication: Jan 13, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

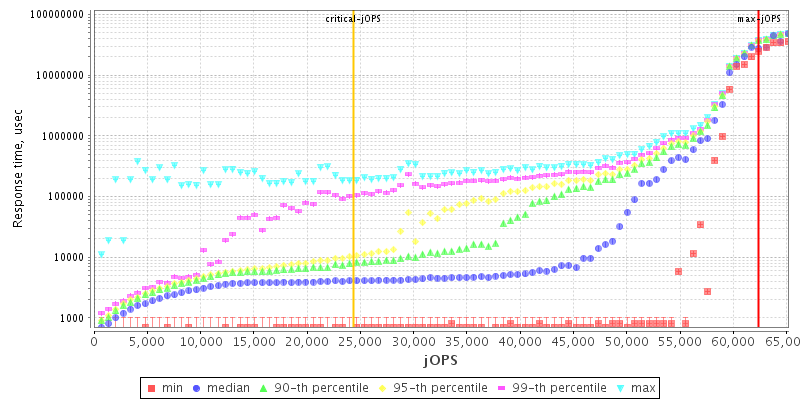

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant ML350p Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
AvailableSep-2013
ModelHP ProLiant ML350p Gen8
Form Factor4U
CPU NameIntel Xeon E5-2697 v2
CPU CharacteristicsIntel Turbo Boost up to 3.50 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionP72 09/08/2013
CPU Frequency (MHz)2700
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache30 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 400 GB SAS SSD
File Systemext4
Memory Amount (GB)128
# and size of DIMM(s)16 x 8192 MB
Memory Details2Rx4 PC3-14900R ECC
# and type of Network Interface Cards (NICs)1 x NC361i Dual Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)2 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.4 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.4 (Santiago)-2.6.32-358.el6.x86_64
AvailableFeb-2013
Bitness64
Notes
  • SELinux = Disabled
  • "GOVERNOR=performance" was set in /etc/sysconfig/cpuspeed
Java Virtual Machine jvm_1
NameOracle Java SE 7u45
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.7.0_45
AvailableOct-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • DIMM Voltage Preference = Optimized For Performance
  • Memory Power Savings Mode = Maximum Performance
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • Memory Refresh Rate = 1x Refresh
  • ACPI SLIT Table = Enabled
  • A7 Memory Address Mode = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes Stopped unnecessary services (see SUT OS notes)
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+UseBiasedLocking -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:-PrintCompilation -Xms29g -Xmx29g -Xmn27g -XX:+UseParallelOldGC -XX:ParallelGCThreads=22 -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=90 -XX:-UseAdaptiveSizePolicy -XX:+AggressiveOpts
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2G -Xms2G -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 61708 62393 63079 63765 64450
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 11199 17484 21769 38481 51766 24310
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 686 - / 686 - / 686 - / 686 - / 686 - / 686
1000us 4114 / 4799 2057 / 2743 1371 / 2057 686 / 1371 - / 686 - / 686
5000us 49366 / 50052 38396 / 39081 10970 / 11656 10285 / 10970 8913 / 9599 - / 686
10000us 50737 / 51423 46624 / 47309 30168 / 29483 23312 / 23997 11656 / 10285 - / 686
20000us 51423 / 52109 48680 / 49366 37710 / 38396 30168 / 28797 12342 / 13027 2743 / 2057
50000us 52794 / 53480 49366 / 50052 39767 / 40453 32225 / 29483 17141 / 17827 2743 / 2057
100000us 53480 / 54166 50737 / 51423 43195 / 43881 37710 / 38396 23312 / 21255 2743 / 2057
200000us 55537 / 54851 52794 / 53480 48680 / 49366 46624 / 47309 39767 / 29483 27426 / 4114
500000us 57594 / 58279 55537 / 56222 52794 / 53480 52109 / 52794 51423 / 52109 50052 / 50737
1000000us 57594 / 58279 57594 / 58279 56222 / 56908 56222 / 56908 55537 / 56222 53480 / 54166

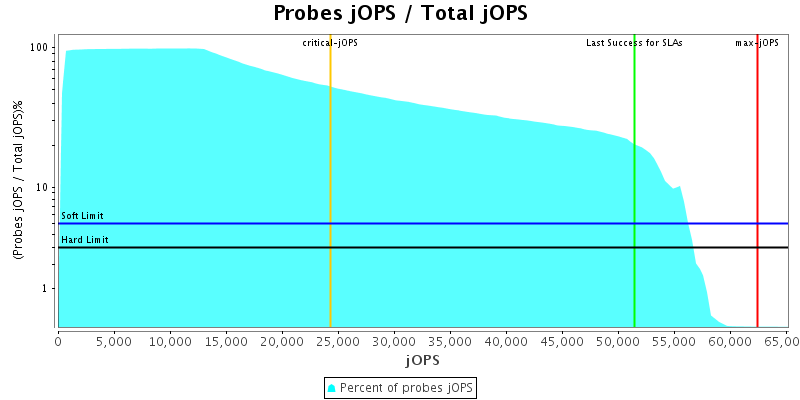

Number of probes
Probes jOPS / Total jOPS

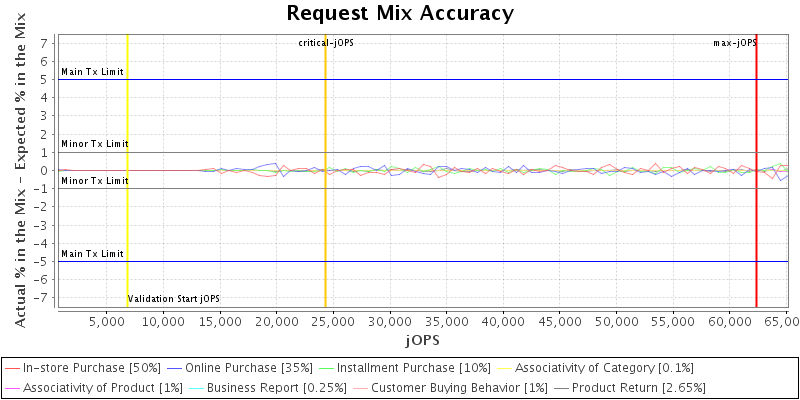

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

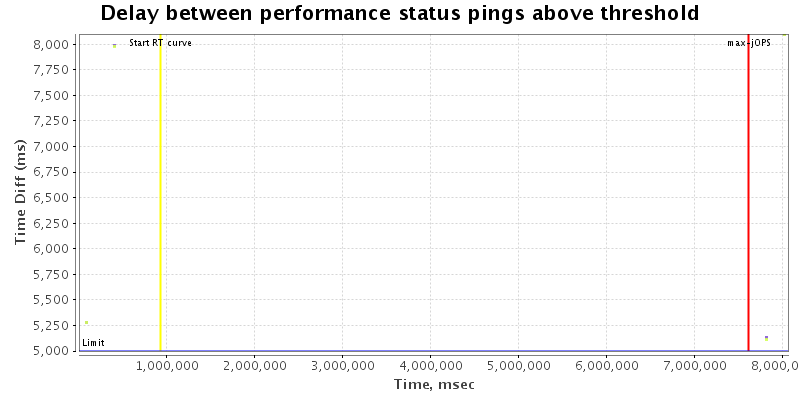

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 48 36
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 68564 IR
High-bound (settled) is 63560 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
