SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Oracle Corporation Sun Server X2-4 CODE DEFECT (CD) RESULT
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Burlington, MA Test date: Mar 20, 2013
SPEC license #: 6 Hardware Availability: Jun-2011 Software Availability: Mar-2013 Publication: Apr 17, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

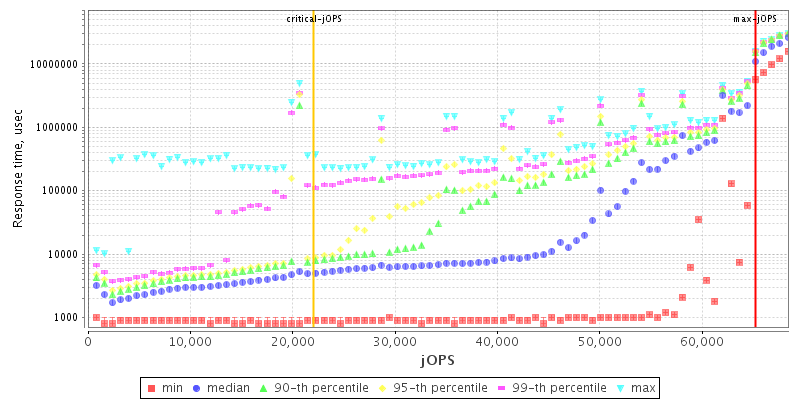

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores40
Total Threads80
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSun Server X2-4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableJun-2011
ModelSun Server X2-4
Form Factor3RU rackmount server
CPU NameIntel Xeon E7-4870
CPU CharacteristicsIntel Turbo Boost Technology up to 2.80 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System40
Cores Per Chip10
Threads Per System80
Threads Per Core2
VersionNone
CPU Frequency (MHz)2400
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache30 MB I+D on chip per chip
Other CacheNone
Disk1x Hitachi HUC106030CSS600 300 GB 10000 RPM disk drive
File SystemZFS
Memory Amount (GB)128
# and size of DIMM(s)32 x 4 GB
Memory Details4GB 2Rx8 PC3-1333 ECC CL9; slots 0, 2, 4, ..., 62 populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)(2) 2000W AC power supplies
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameOracle Solaris 11.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1
AvailableOct-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/technetwork/java
VersionJava HotSpot(TM) 64-bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Run in processor set #2.
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx22g -Xms22g -Xmn17g -XX:+UseParallelOldGC -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:-UseBiasedLocking
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 64416 65211 66007 66802 67597
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 13121 14712 19483 32786 42336 22057
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 795 - / 795 - / 795 - / 795 - / 795 - / 795
1000us - / 795 - / 795 - / 795 - / 795 - / 795 - / 795
5000us 49306 / 50101 22267 / 20677 13519 / 14315 12724 / 13519 7157 / 795 - / 795
10000us 53282 / 54078 44535 / 45330 27039 / 20677 23858 / 19881 13519 / 12724 - / 795
20000us 54873 / 55668 48511 / 49306 32606 / 20677 25448 / 19881 13519 / 12724 3976 / 2386
50000us 55668 / 56463 50897 / 50101 36582 / 20677 29425 / 19881 14315 / 15110 3976 / 2386
100000us 55668 / 56463 52487 / 50101 42149 / 20677 36582 / 19881 19086 / 19881 3976 / 2386
200000us 57259 / 58054 53282 / 54078 48511 / 20677 44535 / 20677 36582 / 19881 3976 / 2386
500000us 61235 / 62030 59644 / 58054 53282 / 20677 52487 / 20677 49306 / 19881 47716 / 19881
1000000us 63621 / 62030 61235 / 62030 61235 / 20677 61235 / 20677 59644 / 19881 56463 / 19881

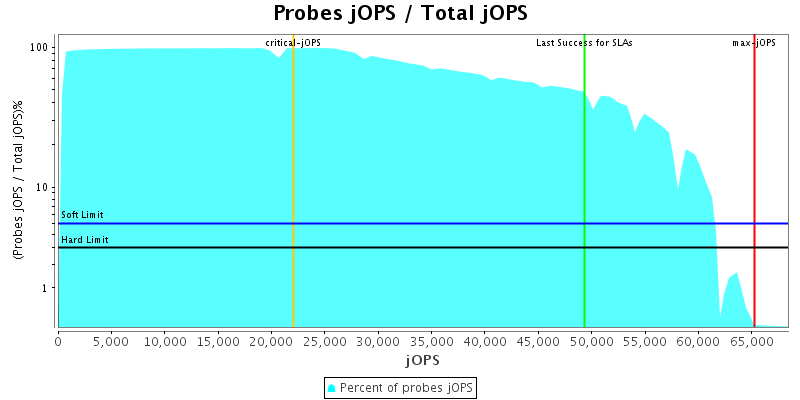

Number of probes
Probes jOPS / Total jOPS

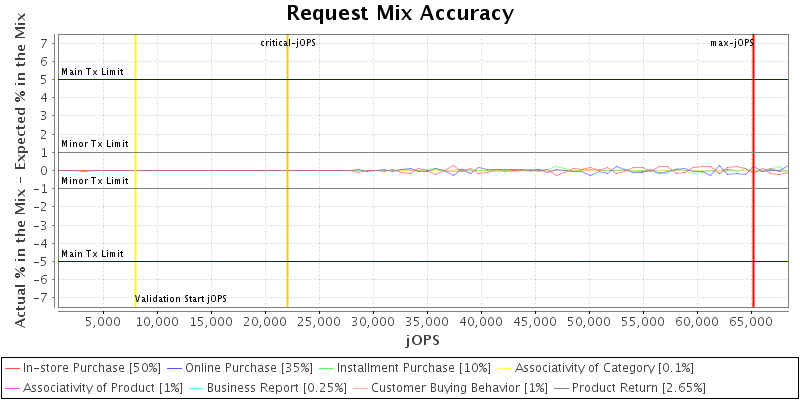

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

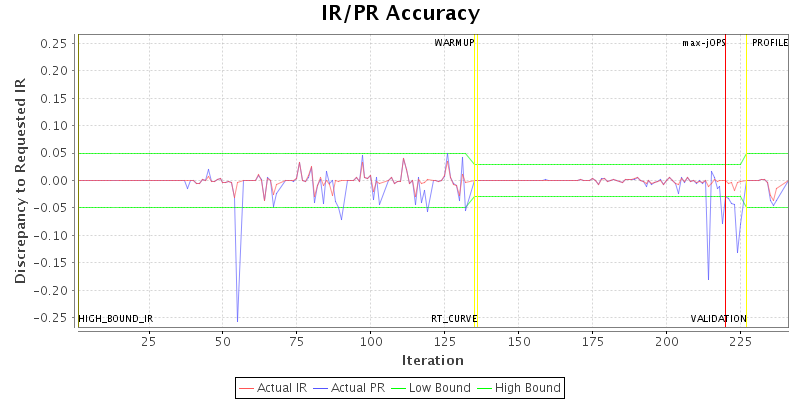

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 20 20
specjbb.group.count 1 4
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 79526 IR
High-bound (settled) is 68251 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
