Oracle Corporation SPARC T5-2 CODE DEFECT (CD) RESULT
Tested by: Oracle Corporation Test Sponsor: Oracle Corporation Test location: Hillsboro, OR Test date: Mar 1, 2013
SPEC license #: 6 Hardware Availability: Mar-2013 Software Availability: Feb-2013 Publication: Apr 17, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

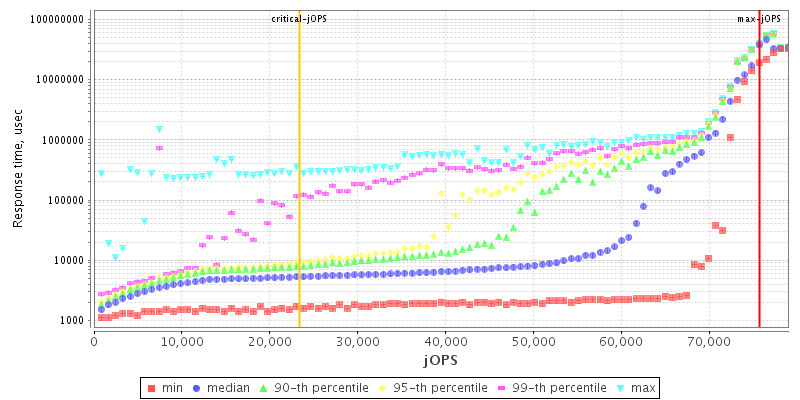

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads256
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSPARC T5-2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
AvailableMar-2013
ModelSPARC T5-2
Form Factor3RU rackmount server
CPU NameSPARC T5
CPU Characteristics3600 MHz SPARC-T5
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System256
Threads Per Core8
VersionNone
CPU Frequency (MHz)3600
Primary Cache16 KB I + 16 KB D on chip per core
Secondary Cache128 KB I+D on chip per core
Tertiary Cache8 MB I+D on chip per chip
Other CacheNone
Disk2x 300 GB 10000 RPM SAS disk drive
File SystemZFS
Memory Amount (GB)512
# and size of DIMM(s)32 x 16 GB
Memory Details16GB 2Rx8 PC3-12800R ECC CL11; each slot populated
# and type of Network Interface Cards (NICs)Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)1x 2060W AC power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameOracle Solaris 11.1 SRU 4.5
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionOracle Solaris 11.1 SRU 4.5
AvailableOct-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u17
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/technetwork/java
VersionJava HotSpot(TM) 64-bit Server VM, version 1.7.0_17
AvailableMar-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Run in processor set #1.
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx96g -Xms96g -Xmn83g -XX:+UseConcMarkSweepGC -XX:+AlwaysPreTouch -XX:+UseCondCardMark -XX:+AggressiveOpts -XX:+UseLargePages -XX:LargePageSizeInBytes=4m
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx2048m -Xms2048m -Xmn1536m
Tuning Each group (backend and transaction injector) is run in its own processor set consisting of all the virtual processors (threads) belonging to the same physical CPU.
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 74836 75658 76480 77303 78125
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 11787 17424 21424 31324 50194 23334
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 822 - / 822 - / 822 - / 822 - / 822 - / 822
1000us - / 822 - / 822 - / 822 - / 822 - / 822 - / 822
5000us 59211 / 60033 18915 / 19737 8224 / 9046 6579 / 7401 6579 / 7401 - / 822
10000us 62500 / 63322 53454 / 54276 31250 / 32072 25493 / 26316 13980 / 7401 - / 822
20000us 64145 / 64967 59211 / 60033 45230 / 46053 37829 / 38651 13980 / 7401 3289 / 822
50000us 64967 / 65790 61678 / 62500 47697 / 48520 40296 / 39474 19737 / 7401 5757 / 822
100000us 65790 / 66612 62500 / 63322 50165 / 50987 41118 / 39474 22204 / 7401 5757 / 822
200000us 67434 / 68257 64145 / 64967 56744 / 53454 48520 / 49342 33717 / 7401 5757 / 822
500000us 69079 / 69901 67434 / 68257 61678 / 62500 58388 / 57566 51809 / 7401 47697 / 7401
1000000us 70724 / 71546 69079 / 69901 68257 / 69079 68257 / 69079 65790 / 66612 62500 / 7401

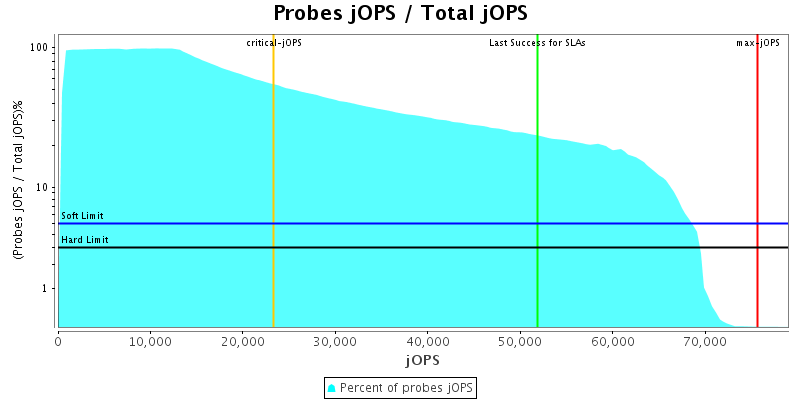

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

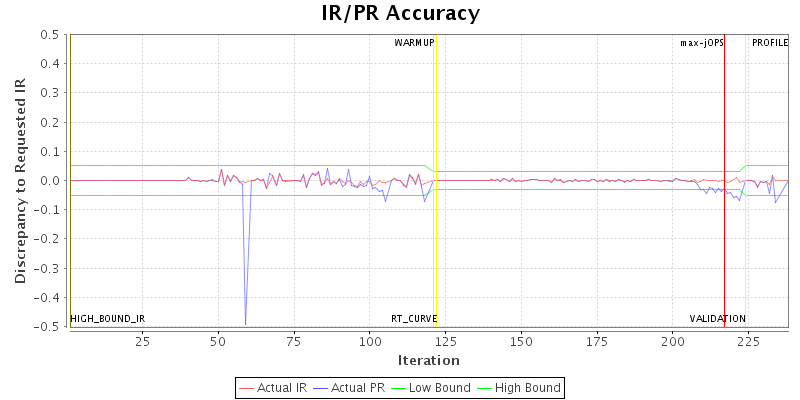

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 128 128
specjbb.group.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 82237 IR
High-bound (settled) is 73889 IR
