Dell PowerEdge R720 (Intel E5-2680, 2.7GHz) CODE DEFECT (CD) RESULT
Tested by: Principled Technologies Inc. Test Sponsor: Red Hat Inc. Test location: Durham, NC Test date: Mar 11, 2013
SPEC license #: 98 Hardware Availability: Mar-2012 Software Availability: Mar-2013 Publication: Apr 5, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

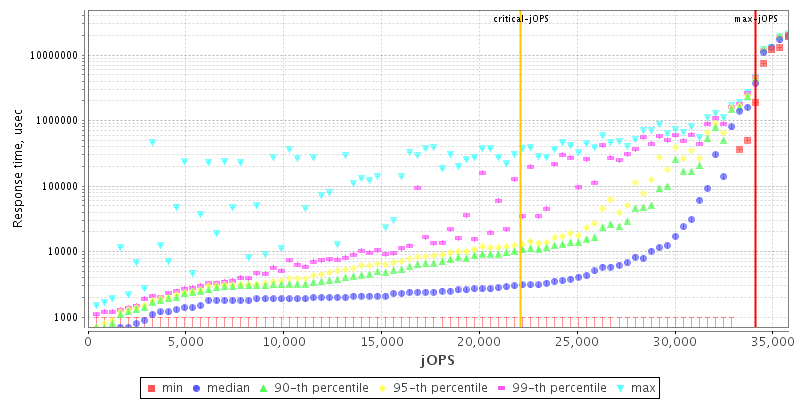

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell PowerEdge R720
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableMar-2012
ModelDell PowerEdge R720
Form Factor2U
CPU NameIntel Xeon E5-2680
CPU Characteristics8-Core, 2.70GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionNone
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache20 MB I+D on chip per chip
Other CacheNone
Disk2 x 100GB SSD SATA (INTEL SSDSA2BZ10)
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16384MB
Memory Details2Rx4 PC3-10600R ECC CL9; Slots A1-8, B1-8 populated
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs onboard
Power Supply Quantity and Rating (W)2 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 6.4
VendorRed Hat Inc.
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux 6.4 (2.6.32-358.0.1.el6.x86_64)
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK Java 1.7.0
VendorOpenJDK community
Vendor URLhttp://openjdk.java.net/
VersionJDK 1.7.0_09-icedtea
AvailableMar-2013
Bitness64
Notesjava version "1.7.0_09-icedtea"
OpenJDK Runtime Environment (rhel-2.3.8.0.el6_4-x86_64)
OpenJDK 64-Bit Server VM (build 23.7-b01, mixed mode)
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tunings
  • Performance Optimized System Profile set in BIOS
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning Operating System Tunings
  • echo 3 > /proc/sys/vm/drop_caches
  • echo 123000 > /proc/sys/vm/nr_hugepages
  • setenforce 0
  • tuned-adm profile latency-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xmx240g -Xms240g -Xmn220g -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:ThreadPriorityPolicy=1 -XX:-UseBiasedLocking -XX:+UseLargePagesIndividualAllocation
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 33718 34129 34540 34951 35362
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 14967 21503 22805 24534 29451 22126
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1234 / 1645 411 / 822 - / 411 - / 411 - / 411 - / 411
1000us 23438 / 23849 2878 / 3290 1234 / 1645 1234 / 1645 - / 411 - / 411
5000us 31250 / 31662 25494 / 25905 15214 / 15625 12336 / 12747 9046 / 9457 5345 / 1645
10000us 32484 / 32073 28372 / 28783 21382 / 21793 18504 / 18915 15625 / 13980 9046 / 1645
20000us 32484 / 32073 30017 / 30428 25905 / 26316 25083 / 25494 20559 / 16859 12747 / 3290
50000us 32484 / 32895 30839 / 31250 28372 / 28783 27139 / 26727 23438 / 16859 15625 / 3290
100000us 32484 / 32895 31662 / 32073 29606 / 30017 28372 / 27961 25083 / 20148 15625 / 3290
200000us 32895 / 33306 32484 / 32073 30839 / 30017 29606 / 29194 25905 / 23849 18092 / 3290
500000us 32895 / 33306 32484 / 32895 31250 / 31662 31250 / 31662 31250 / 28372 27550 / 26316
1000000us 32895 / 33306 32895 / 33306 32484 / 32895 32484 / 32895 32484 / 32073 31250 / 31662

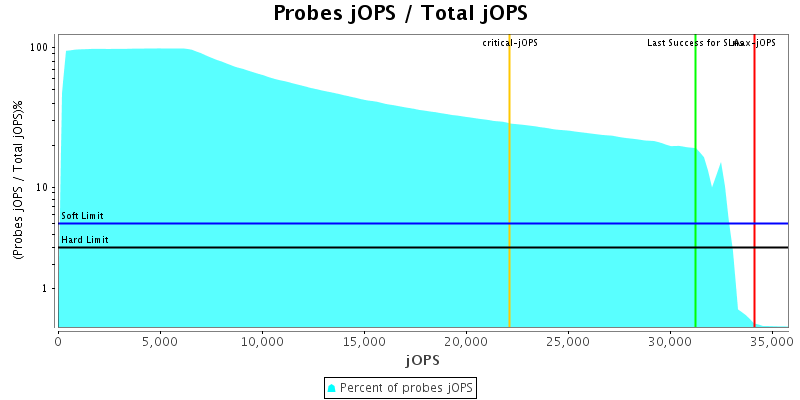

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

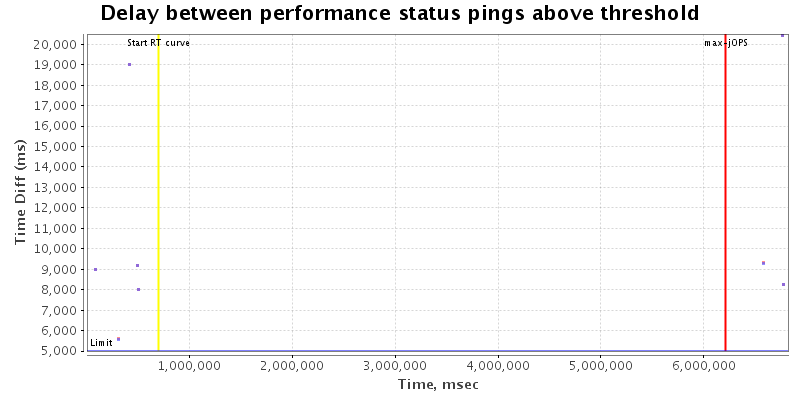

Delay between status pings

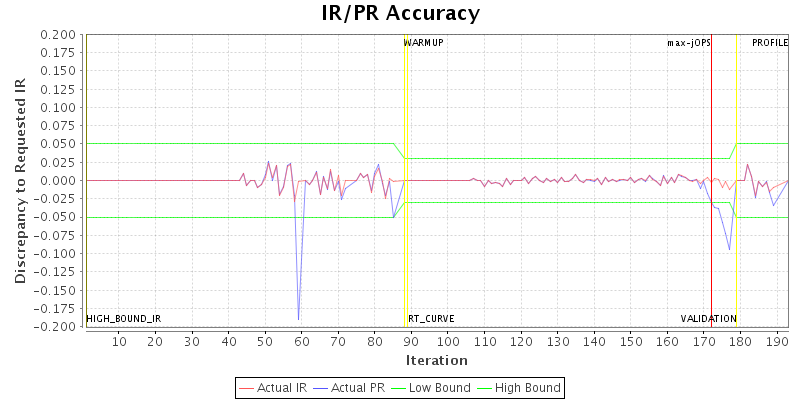

IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 41119 IR
High-bound (settled) is 34282 IR
