SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Supermicro X8DTN+ CODE DEFECT (CD) RESULT
Tested by: Intel Corp. Test Sponsor: Intel Corp Test location: Shanghai, PRC Test date: Feb 3, 2013
SPEC license #: 13 Hardware Availability: Jan-2011 Software Availability: Jan-2013 Publication: Feb 22, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

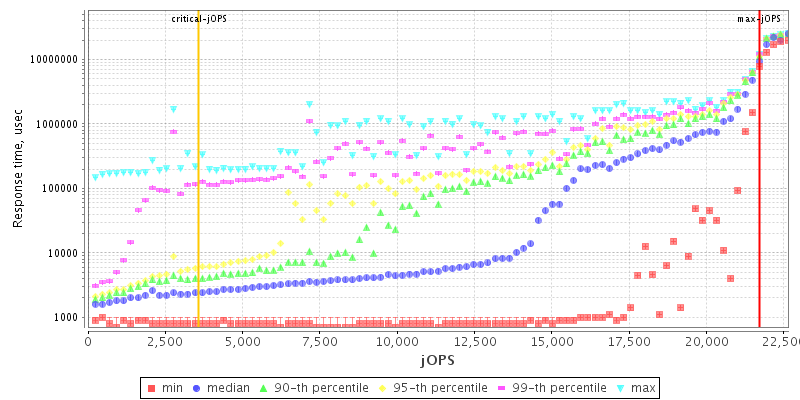

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttp://supermicro.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores12
Total Threads24
Total Memory Amount (GB)48
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSupermicro
VendorSupermicro
Vendor URLhttp://supermicro.com/
AvailableJan-2011
ModelX8DTN+
Form Factor2U
CPU NameIntel Xeon X5690
CPU Characteristics6-Core, 3.46GHz(Turbo Boost Technology up to 3.73GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System12
Cores Per Chip6
Threads Per System24
Threads Per Core2
VersionNone
CPU Frequency (MHz)3460
Primary Cache64KB
Secondary Cache256 KB per core
Tertiary Cache12MB per chip
Other CacheNone
Disk1x 500GB 7200RPM
File SystemNTFS
Memory Amount (GB)48
# and size of DIMM(s)6 x 8192MB
Memory Details2Rx4 PC3-10600R ECC;Slots A1-3,B1-3 populated
# and type of Network Interface Cards (NICs)2x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat, Inc.
Vendor URLhttp:/redhat.com/
VersionRed Hat Enterprise Linux 6.3
AvailableJun-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u11
VendorOracle Corp.
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_11
AvailableJan-2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms4g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms12g -Xmx12g -Xmn10g -XX:+UseParalleOldGC -XX:-UseAdaptiveSizePolicy -XX:UseBiasedLocking
Tuning 1 Backend is affinitized per socket
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms4g -Xmx4g
Tuning 1 Injector is affinitized per socket
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 21478 21709 21940 22171 22402
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 1270 1732 2632 8181 12533 3587
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 231 - / 231 - / 231 - / 231 - / 231 - / 231
1000us - / 231 - / 231 - / 231 - / 231 - / 231 - / 231
5000us 15012 / 15243 10624 / 10855 5312 / 5543 2540 / 2771 924 / 1155 - / 231
10000us 15243 / 15474 13626 / 13857 9238 / 7159 5774 / 6005 1155 / 1386 - / 231
20000us 15474 / 15705 14319 / 14550 9238 / 9007 6236 / 6467 1386 / 1617 - / 231
50000us 15705 / 15936 14781 / 15012 10624 / 10162 7621 / 6467 1617 / 1848 - / 231
100000us 17090 / 17321 15474 / 15705 12240 / 12009 10624 / 7159 3002 / 2079 - / 231
200000us 18476 / 18707 16166 / 15936 15243 / 14781 14319 / 13164 12240 / 2771 5081 / 2079
500000us 20785 / 21016 18707 / 18938 16859 / 16397 16859 / 16397 16166 / 2771 14319 / 2771
1000000us 21016 / 21247 20324 / 20555 19400 / 19169 18476 / 18245 16859 / 7159 16166 / 2771

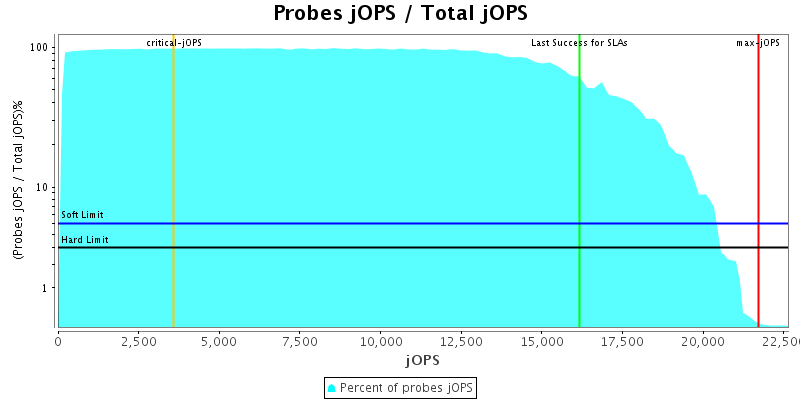

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

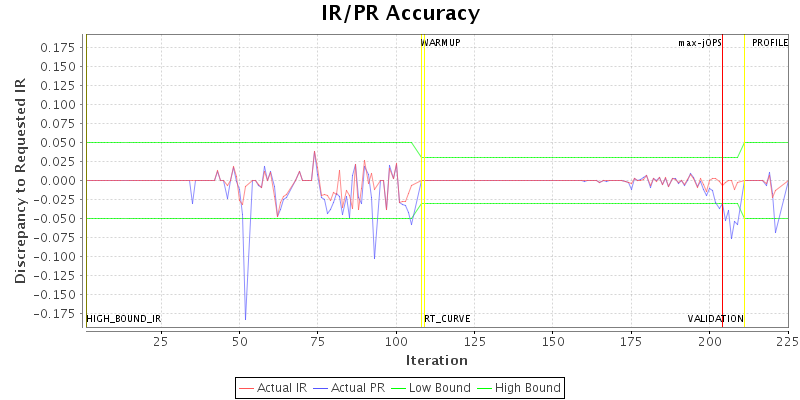

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 24 24
specjbb.group.count 1 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 23095 IR
High-bound (settled) is 21419 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
