SPECjbb2005 SPECjbb2005 bops = 1548121, SPECjbb2005 bops/JVM = 96758
Hewlett-Packard Company ProLiant BL465c Gen8
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

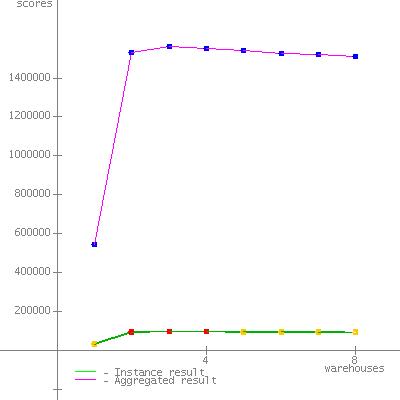

JVM run JVM Scores
197356
295722
397026
497469
597061
697499
797483
895858
996494
1095111
1196692
1297864
1395699
1497992
1596589
1696206
SPECjbb2005 bops = 1548121, SPECjbb2005 bops/JVM = 96758

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model ProLiant BL465c Gen8
Processor AMD Opteron 6380 (AMD Turbo CORE Technology up to 3.40 GHz)
MHz 2500
# of Chips 2
# of Cores 32
# of Cores/Chip 16
HW Threading Enabled? No
Procs Avail to Java 32
Memory (MB) 131002
Memory Details 8 DIMMs filled with 8 GB 2Rx4 PC3-12800R-11, ECC memory per socket
Primary cache 512 KB I + 256 KB D on chip per chip
Secondary cache 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Other cache 16 MB I+D on chip per chip, 8 MB shared / 2 cores
Filesystem NTFS
Disks 2 x 200 GB SSD SAS
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command Line java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeUserCPU -Xgcthreads2
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\java\jre\lib\aggressive.jar;
C:\java\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\java\jre\lib\se-service.jar;
C:\java\jre\lib\math.jar;
C:\java\jre\lib\jlm.jar;
C:\java\jre\lib\ibmorb.jar;
C:\java\jre\lib\ibmorbapi.jar;
C:\java\jre\lib\ibmcfw.jar;
C:\java\jre\lib\ibmpkcs.jar;
C:\java\jre\lib\ibmcertpathfw.jar;
C:\java\jre\lib\ibmjgssfw.jar;
C:\java\jre\lib\ibmjssefw.jar;
C:\java\jre\lib\ibmsaslfw.jar;
C:\java\jre\lib\ibmjcefw.jar;
C:\java\jre\lib\ibmjgssprovider.jar;
C:\java\jre\lib\ibmjsseprovider2.jar;
C:\java\jre\lib\ibmcertpathprovider.jar;
C:\java\jre\lib\xmldsigfw.jar;
C:\java\jre\lib\xml.jar;
C:\java\jre\lib\charsets.jar;
C:\java\jre\lib\resources.jar;
C:\java\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise Edition with SP1 (64-bit)
Other software IBM Websphere Application Server V7.0 for Windows on x86-64-bit
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location Houston, TX
Test date Nov 10, 2012
H/w available Aug-2012
JVM available Mar-2012
OS available Feb-2011
Other s/w available None
AOT Compilation
None
Tuning
  • "Lock pages in memory" enabled for benchmark user.
  • Used "start /AFFINITY 0x3, 0xC, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000"
  • Power Option set to High Performance in OS.
    • Notes
  • Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp
  • BIOS Configuration:
    • HP Power Profile - Maximum Peroformance
    • Dynamic Power Savings Mode Response - Slow
    • Collaborative Power Control - Disabled
    • Thermal Configuration - Maximum Cooling
    • Hardware Prefetch training on Software Prefetch - Disabled
    • DRAM Prefetch on I/O Request - Disabled
    • CPU Cache Stride Prefetcher - Disabled

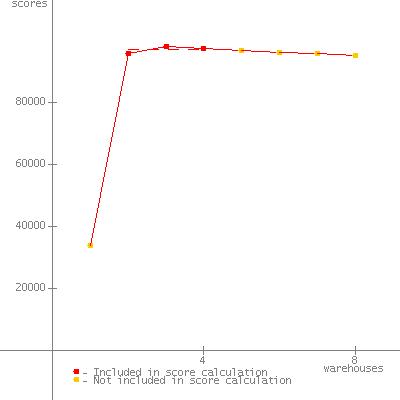

    • JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 36186
    2 96682 *
    3 97874 *
    4 97511 *
    5 96761
    6 96280
    7 95624
    8 94718
    SPECjbb2005 (from 2 to 4) 97356 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 31855
    2 94178 *
    3 97025 *
    4 95962 *
    5 95608
    6 94633
    7 94214
    8 93834
    SPECjbb2005 (from 2 to 4) 95722 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

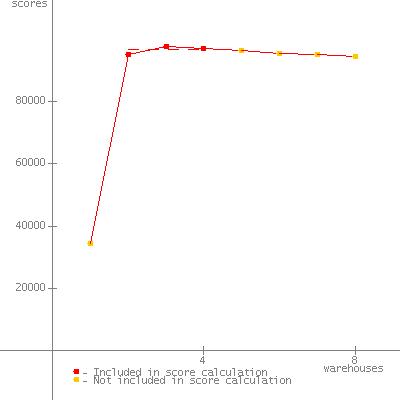

    JVM 3 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 33996
    2 95774 *
    3 98011 *
    4 97293 *
    5 96754
    6 96125
    7 95721
    8 95036
    SPECjbb2005 (from 2 to 4) 97026 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

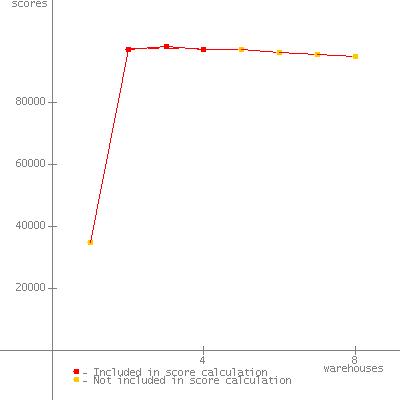

    JVM 4 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34509
    2 96835 *
    3 98202 *
    4 97370 *
    5 96670
    6 96046
    7 94975
    8 94738
    SPECjbb2005 (from 2 to 4) 97469 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

    JVM 5 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35056
    2 95833 *
    3 97694 *
    4 97656 *
    5 96975
    6 96420
    7 95953
    8 95148
    SPECjbb2005 (from 2 to 4) 97061 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

    JVM 6 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34865
    2 97116 *
    3 98149 *
    4 97234 *
    5 97002
    6 96186
    7 95595
    8 94903
    SPECjbb2005 (from 2 to 4) 97499 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

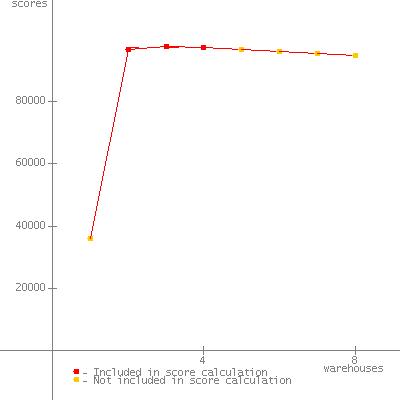

    JVM 7 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35794
    2 96723 *
    3 98201 *
    4 97526 *
    5 97082
    6 96279
    7 95720
    8 95253
    SPECjbb2005 (from 2 to 4) 97483 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

    JVM 8 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35607
    2 95014 *
    3 96742 *
    4 95817 *
    5 95222
    6 94641
    7 93939
    8 93375
    SPECjbb2005 (from 2 to 4) 95858 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

    JVM 9 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 35825
    2 95993 *
    3 97563 *
    4 95925 *
    5 95858
    6 94957
    7 94827
    8 94476
    SPECjbb2005 (from 2 to 4) 96494 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

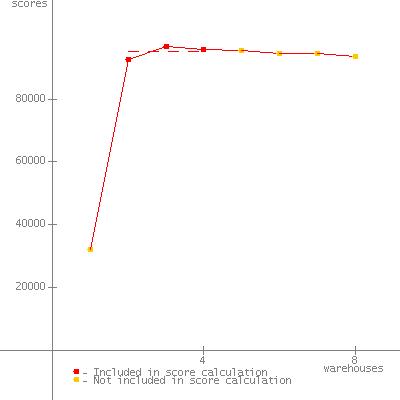

    JVM 10 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 32298
    2 92728 *
    3 96845 *
    4 95760 *
    5 95513
    6 94664
    7 94417
    8 93701
    SPECjbb2005 (from 2 to 4) 95111 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

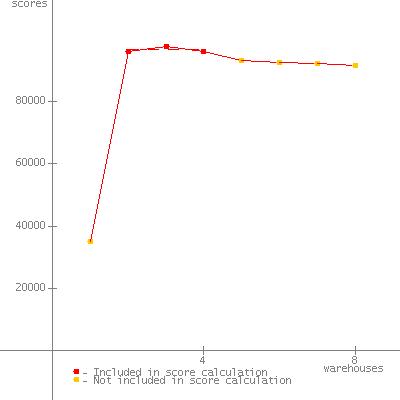

    JVM 11 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34983
    2 95991 *
    3 97833 *
    4 96250 *
    5 93194
    6 92595
    7 92136
    8 91507
    SPECjbb2005 (from 2 to 4) 96692 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

    JVM 12 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 32872
    2 96672 *
    3 98761 *
    4 98158 *
    5 97293
    6 96982
    7 96273
    8 95487
    SPECjbb2005 (from 2 to 4) 97864 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

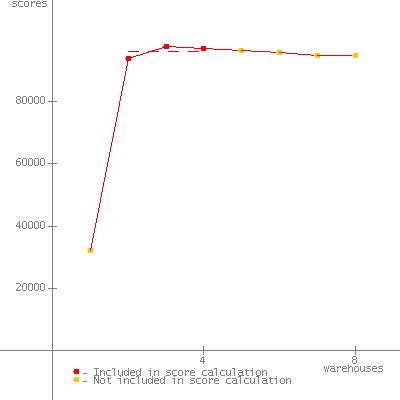

    JVM 13 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 32645
    2 94776 *
    3 96279 *
    4 96044 *
    5 95389
    6 94667
    7 94235
    8 94006
    SPECjbb2005 (from 2 to 4) 95699 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

    JVM 14 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34515
    2 97072 *
    3 98832 *
    4 98072 *
    5 97625
    6 96683
    7 96358
    8 95675
    SPECjbb2005 (from 2 to 4) 97992 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

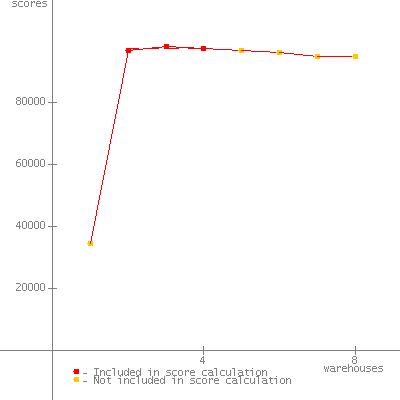

    JVM 15 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 34245
    2 95081 *
    3 97767 *
    4 96919 *
    5 96301
    6 95384
    7 95179
    8 94465
    SPECjbb2005 (from 2 to 4) 96589 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012

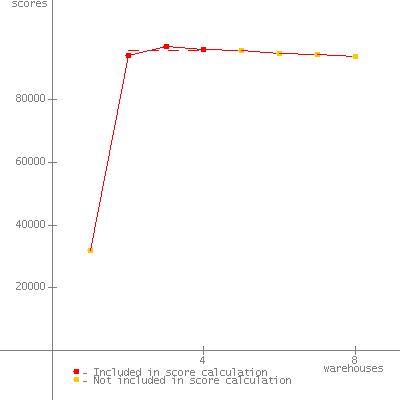

    JVM 16 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 32265
    2 93890 *
    3 97813 *
    4 96916 *
    5 96288
    6 95648
    7 94856
    8 94718
    SPECjbb2005 (from 2 to 4) 96206 SPECjbb2005 bops
    SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Nov 10, 2012
    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 03-Dec-2012
