SPECjbb

SPECjbb2005		SPECjbb2005 bops = 100279, SPECjbb2005 bops/JVM = 100279
Fujitsu Siemens Computers PRIMERGY RX200 S3, Intel Xeon 5160 processor, 3.0 GHz
BEA Systems, Inc BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-8-61900-1.5.0_06-20060516-1454-win-x86_64)

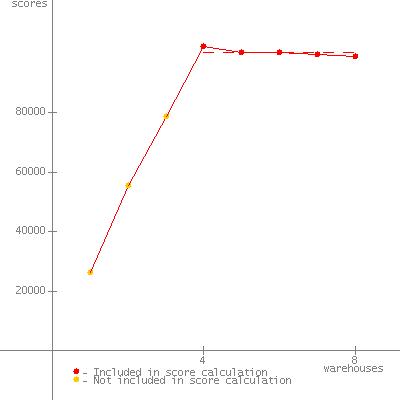

Warehouses	SPECjbb2005 bops	Incl. in metric
1	26413
2	55346
3	78791
4	102339	*
5	100184	*
6	100349	*
7	99602	*
8	98920	*
SPECjbb2005	(from 4 to 8)	100279 SPECjbb2005 bops

SPEC license # 22

Tested by: Fujitsu Siemens Computers

Test date: May 20, 2006

Hardware

Hardware Vendor Fujitsu Siemens Computers

Vendor URL http://www.fujitsu-siemens.com

Model PRIMERGY RX200 S3, Intel Xeon 5160 processor, 3.0 GHz

Processor Intel Xeon 5160 processor (3.0 GHz, 4MB L2, 1333 MHz system bus)

MHz 3000

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? N/A

Procs Avail to Java 4

Memory (MB) 8192

Memory Details 8x1GB DDRII-RAM PC2-5300F (CAS 5-5-5)

Primary cache 32KBI + 32KBD on chip, per core

Secondary cache 4MB(I+D) on chip, shared

Other cache n/a

Filesystem NTFS

Disks Seagate ST373454SS (SAS, 15krpm, 73GB)

Other hardware none

Software

Software Vendor BEA Systems, Inc

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-8-61900-1.5.0_06-20060516-1454-win-x86_64)

JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputCompaction -XXallocPrefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize128k spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3700

JVM Maximum Heap Memory (MB) 3700

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\Program Files\JAVA\jrockit-jdk1.5.0_06\jre\classes

OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)

Other software none

Test Information

Tested by Fujitsu Siemens Computers

SPEC license # 22

Test location Paderborn, Germany

Test date May 20, 2006

H/w available Jul-2006

JVM available Aug-2006

OS available Mar-2005

Other s/w available n/a

AOT Compilation

Tuning

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

turned off 'Hardware Prefetching' in BIOS
turned off 'Adjacent Sector Prefetching' in BIOS
Command line options are described at:
http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	26413	3700	902	<0.01%	<0.01	new_order	348451	13.5	.171
						payment	240363	4.67	.016
						order_status	24036	.672	.016
						delivery	24037	4.76	.016
						stock_level	24036	.673	.016
						cust_report	132271	5.04	.016
2	55346	3700	2598	2.57%	<0.01	new_order	730064	26.8	.203
						payment	503416	10.1	.188
						order_status	50341	1.09	.110
						delivery	50341	10.7	.203
						stock_level	50341	1.09	.016
						cust_report	276762	8.76	.032
3	78791	3700	963	2.61%	<0.01	new_order	1039622	39.0	.234
						payment	717046	12.7	.125
						order_status	71704	1.52	.016
						delivery	71703	20.7	.234
						stock_level	71705	1.98	.094
						cust_report	394467	11.9	.110
4	102339	3700	3256	4.71%	.019	new_order	10795348	392	.313
						payment	7444283	131	.234
						order_status	744427	16.6	.281
						delivery	744427	238	.313
						stock_level	744427	22.1	.328
						cust_report	4093209	138	.297
5	100184	3700	1979	25.4%	.078	new_order	10573163	493	.719
						payment	7291771	169	.937
						order_status	729178	20.9	.391
						delivery	729177	294	.937
						stock_level	729176	28.5	.375
						cust_report	4010373	171	.469
6	100349	3700	1600	38.1%	.020	new_order	10583709	581	1.05
						payment	7299523	213	.703
						order_status	729952	23.1	.594
						delivery	729951	350	.953
						stock_level	729953	30.2	.782
						cust_report	4015329	209	1.48
7	99602	3700	1374	23.2%	.039	new_order	10508472	664	1.31
						payment	7246586	265	1.38
						order_status	724660	24.8	.594
						delivery	724661	401	2.05
						stock_level	724659	39.0	4.11
						cust_report	3984720	253	1.75
8	98920	3700	3406	7.28%	.039	new_order	10436555	748	1.97
						payment	7196980	330	1.78
						order_status	719697	30.6	.953
						delivery	719696	444	4.02
						stock_level	719695	40.5	.937
						cust_report	3957400	283	1.19
