SPECjbb

SPECjbb2005		SPECjbb2005 bops = 161310, SPECjbb2005 bops/JVM = 20164
Fabric7 Systems, Inc. Q160
BEA Systems BEA JRockit(R) 5.0 P26.0.0 (build P26.0.0-35-59328-1.5.0_06-20060321-1326-linux-x86_64, )

JVM run JVM Scores

1 20114

2 20123

3 20086

4 20287

5 20352

6 20457

7 19905

8 19986

SPECjbb2005 bops = 161310, SPECjbb2005 bops/JVM = 20164

Hardware

Hardware Vendor Fabric7 Systems, Inc.

Vendor URL http://www.fabric7.com

Model Q160

Processor AMD Opteron 880

MHz 2400

# of Chips 8

# of Cores 16

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 16

Memory (MB) 65536

Memory Details 32 of 64 DIMMs filled with 2GB of PC3200 Memory

Primary cache 64KBI+64KBD

Secondary cache 1MB per core on chip

Other cache

Filesystem ext3

Disks 1 x 36GB Fibre Channel (OS+Data+Paging+classes)

Other hardware

Software

Software Vendor BEA Systems

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.0.0 (build P26.0.0-35-59328-1.5.0_06-20060321-1326-linux-x86_64, )

JVM Command Line numactl --cpubind=$xx --membind=$xx $JAVA -cp jbb.jar:check.jar -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize=512k -Xms3840m -Xmx3840m spec.jbb.JBBmain -propfile SPECjbb.props -id $jvm_num > multi.$jvm_num &

JVM Initial Heap Memory (MB) 3840

JVM Maximum Heap Memory (MB) 3840

JVM Address bits 64

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /opt/java/jrockit-jdk1.5.0_06/jre/lib/amd64/jrockit/jrockit.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/amd64/jrockit/managementapi.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/managementapi.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/rt.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/i18n.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/sunrsasign.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/jsse.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/jce.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/lib/charsets.jar:
/opt/java/jrockit-jdk1.5.0_06/jre/classes

OS Version SuSE Linux Enterprise Server 9 SP3 (64 bit)

Other software

Test Information

Tested by Fabric7 Systems, Inc.

SPEC license # 99

Test location Hillsboro, OR

Test date Apr 8, 2006

H/w available Dec-2005

JVM available Apr-2006

OS available Jan-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings
added "numa=on" to kernel boot string
set vm.nr_hugepages=20000 in /etc/sysctl.conf
sysctl -p
mkdir /mnt/hugepages
mount -thugetlbfs nodev /mnt/hugepages
Command line switches
http://e-docs.bea.com/jrockit/jrdocs/refman/intro.html

Notes

Q160 System Release 1.01

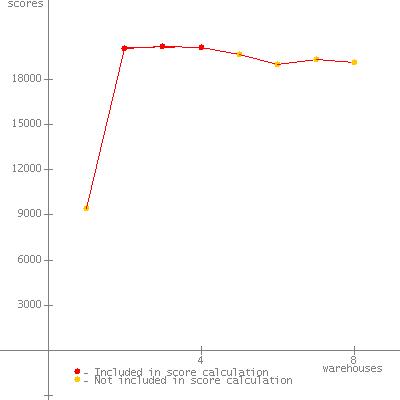

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9309
2	20160	*
3	20128	*
4	20052	*
5	19446
6	19151
7	19278
8	19272
SPECjbb2005	(from 2 to 4)	20114 SPECjbb2005 bops
