SPEC Seal of Reviewal SPECjAppServer2002 Result
Copyright © 2002 Standard Performance Evaluation Corporation
Oracle Application Server 10g Standard Edition v9.0.4.0.1 Pre-Release on HP ProLiant ML370G3
431.26 TOPS@DualNode
160.62 US$/TOPS@DualNode
Submitter:
Oracle Corporation		 SPEC license # 73 Test date:
Aug-2003		 EJB Container Avail: Nov-2003
EJB Container JVM Avail: Jul-2003
Software
EJB Container
Supplier Domain Container
Emulator Container
Database
JDBC
Other Software 		Hardware
J2EE Application Server
Database Server
Load Driver 		Benchmark
Modifications
Configuration
Other Info
General Notes 		Links

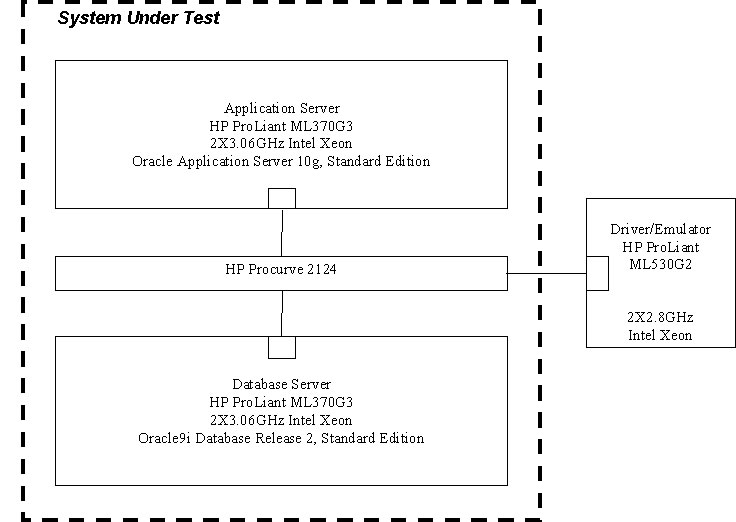

System Configuration Diagram

Full Disclosure Archive


Benchmark Settings
Orders Injection Rate: 250 Ramp Up Time: 600 seconds
# of Order Agents: 2 Ramp Down Time: 300 seconds
# of Manufacturing Agents: 1 Steady State Time: 1800 seconds
DB Load Injection Rate: 250 Trigger Time: 100 seconds
Total System Cost: US$69,267

Detailed Results
Order Transaction Mix Count Tx. Mix
New Order 225,045 50.05%
Change Order 89,847 19.98%
Order Status 89,633 19.93%
Customer Status 45,150 10.04%
Total # Order Transactions 449,675
Total # Manufacturing Transactions 326,592
Response Times Average Maximum 90th% Reqd
New Order 0.41 4.07 0.90 2.00
Change Order 0.22 2.57 0.50 2.00
Order Status 0.12 1.69 0.30 2.00
Customer Status 0.12 1.77 0.30 2.00
Manufacturing 2.35 7.24 4.00 5.00
Reproducibility Run (TOPS) 432.05

EJB Container
Name: Oracle Application Server 10g Standard Edition v9.0.4.0.1 Pre-release JVM Name: BEA WebLogic JRockit 8.1 SP1 SDK
Vendor: Oracle Corporation JVM Vendor: BEA Systems, Inc.
Available: Nov-2003 Available: Jul-2003
Instances: 1
Passed CTS: Nov-2003
Protocol: ORMI
Tuning Information
server.xml global-thread-pool min="21" max="21" queue="100
keepAlive="-1" debug="false
server.xml taskmanager-granularity="9000000
transaction-config timeout="500000
data-sources.xml stmt-cache-size="100" inactivity-timeout="90000
System properties:
-DassociateUsingThirdTable=false -Doracle.dms.sensors=none
-Doracle.ias.cache=0 -DdefaultBatchSize=15
JVM Tuning Information
-jrockit -Xms1600M -Xmx1600M
-Xgc:parallel -Xgcreport -Xgcpause

Supplier Domain Container
Name: Oracle Application Server 10g Standard v9.0.4.0.1 Pre-release JVM Name: BEA WebLogic JRockit 8.1 SP1 SDK
Vendor: Oracle Corporation JVM Vendor: BEA Systems, Inc.
Available: Nov-2003 Available: Jul-2003
Tuning Information
server.xml global-thread-pool min="21" max="21" queue="100
keepAlive="-1" debug="false
server.xml taskmanager-granularity="9000000
transaction-config timeout="500000
data-sources.xml stmt-cache-size="100" inactivity-timeout="90000
System properties:
-DassociateUsingThirdTable=false -Doracle.dms.sensors=none
-Doracle.ias.cache=0 -DdefaultBatchSize=15
JVM Tuning Information
-jrockit -Xms135M -Xmx135M
-Xgc:parallel

Emulator Container
Name: Oracle9i Application Server Standard Edition v9.0.2.1 JVM Name: Java (TM) 2 Runtime Environment, Standard Edition Version 1.4.1_03
Vendor: Oracle Corporation. JVM Vendor: Sun Microsystems, Inc.
Available: Nov-2003 Available: Jul-2003
Tuning Information
server.xml global-thread-pool min="20" max="20" queue="50
keepAlive="-1" debug="false
data-sources.xml stmt-cache-size="100" inactivity-timeout="90000
JVM Tuning Information
-Xms256m -Xmx256m

Database
Name: Oracle9i Database Release 2 Standard Edition v9.2.0.3
Vendor: Oracle Corporation
Available: Jul-2003
Tuning Information
init.ora parameters for Oracle:
compatible=9.0.0.0.0
cursor_space_for_time = TRUE
db_cache_size = 900M
db_file_multiblock_read_count = 128
db_files = 256
dml_locks = 600
enqueue_resources = 2000
log_buffer = 4194304
log_checkpoint_interval = 2147483647
processes = 1000
open_cursors = 2000
max_rollback_segments = 1000
shared_pool_size = 200M
sessions = 800
transactions = 800
transactions_per_rollback_segment = 1
parallel_max_servers = 100
undo_management               = AUTO
undo_retention                = 5
undo_suppress_errors          = TRUE
undo_tablespace               = roll_space
statistics_level = BASIC
trace_enabled = FALSE

JDBC
Name: Oracle JDBC Driver 10.1.0.1.1 (Thin)
Vendor: Oracle Corporation
Available: Nov-2003
Tuning Information
stmt-cache-size="100

Other Software
Name:
Vendor:
Available:
Tuning Information

J2EE Application Server (1 system)
Hardware Vendor: Hewlett-Packard OS Vendor: Red Hat, Inc.
Model Name: ProLiant ML370G3 OS Name: Red Hat Enterprise Linux AS 2.1
Processor: Intel Xeon Filesystem: Linux ext2
MHz: 3060 Disks: 1x18Gb 15K RPM Ultra-3
# of CPUs: 2 cores, 2 chips, 1 core/chip Network Interface: (2) 100BaseT Ethernet
Memory (MB): 2048 Other Hardware:
L1 Cache: 12Kuops(I)+8KB(D) # of Systems: 1
L2 Cache: 512KB H/W Available: Aug-2003
Other Cache: OS Available: Aug-2003
Notes / Tuning Information

Database Server (1 system)
Hardware Vendor: Hewlett-Packard OS Vendor: Red Hat, Inc.
Model Name: HP ProLiant ML370G3 OS Name: Red Hat Enterprise Linux AS 2.1
Processor: Intel Xeon Filesystem: Raw
MHz: 3060 Disks: 5x18Gb 15K RPM Ultra-3
# of CPUs: 2 cores, 2 chips, 1 core/chip Network Interface: 100BaseT Ethernet
Memory (MB): 2048 Other Hardware:
L1 Cache: 12Kuops(I)+8KB(D) # of Systems: 1
L2 Cache: 512K H/W Available: Aug-2003
Other Cache: 1MB L3 OS Available: Aug-2003
Notes / Tuning Information
Parameters added to /etc/sysctl.conf
kernel.sysrq = 0
kernel.shmmax = 2147483648
kernel.shmmin = 1
kernel.shmmni = 100
kernel.shm-use-bigpages = 1
In grub.conf: bigpages = 1300M was specified.
2 X 18GB 15k RPM Ultra 3 RAID 1 for logs
2 X 18GB 15k RPM Ultra 3 for data
Both data and log files were on raw partitions.

Load Driver (1 system)
Hardware Vendor: Hewlett-Packard OS Vendor: Red Hat Inc.
Model Name: HP ProLiant ML530G2 OS Name: Red Hat Enterprise Linux AS 2.1
Processor: Intel Xeon Filesystem: Linux
MHz: 2800 Disks: 1x36GB 10k Ultra-3
# of CPUs: 2 cores, 2 chips, 1 core/chip Network Interface: 100BaseT Ethernet
Memory (MB): 8192 Other Hardware:
L1 Cache: 12Kuops(I)+8KB(D) # of Systems: 1
L2 Cache: 512K H/W Available: Aug-2003
Other Cache: OS Available: Aug-2003
Notes / Tuning Information
JVM Version used:
Java (TM) 2 Runtime Environment, Standard Edition Version 1.4.1_03
JVM arguments used:
-Xms400m -Xmx400m -Dsun.net.inetaddr.ttl=0
-XX:+UseSpinning -XX:PreBlockSpin=100
-Dnetworkaddress.cache.ttl=0
Max threads limit was increased to 8K from 1K
by rebuilding libpthreads.so. The stack size was reduced to
256K. The following was added to /etc/sysctl.conf
net.ipv.tcp_max_syn_backlog = 8192
kernel.sem = 1000 32000 32 512
fs.file-max = 65535
kernel.shmmax = 2147483648
The following was added to /etc/security/limits.conf
soft nofile 8192
hard nofile 8192
Added in /etc/pam.d/login
session required /lib/security/pam_limits.so

Benchmark Modifications
Schema Modifications:
  Tablespace sizes were increased to support the Injection rate
  Scripts to create the DB are included in the FDA
  Two indexes were created on the M_largeorder table:
  CREATE UNIQUE INDEX M_lo_idx ON M_largeorder (lo_id)
  CREATE UNIQUE INDEX M_OL_O_idx ON M_largeorder (lo_o_id, lo_ol_id)
  Table and index parameters initrans were modified.
Load Program Modifications:
  The load program was not modified
Reference Bean Modifications:
  No changes were made to the reference beans

Benchmark Configuration Information
Persistence Mode Used:
  CMP mode was used for all beans
Isolation Requirement Info:
  Beans with a READ_COMMITTED requirement
  were deployed using locking-mode="optimistic" in their deployment descriptors
  All other beans were deployed using locking-mode="pessimistic
Durability Requirement Info:
  Disk mirroring was used to ensure durability for DB logs
Storage Requirement Info:
  A 45 minute run at an injection rate of 250 increased storage by 6GB.
  Extrapolating for an 8 Hr run would require 64GB.
  The system is configured with 90GB which is sufficient for 8Hr run.
Argument Passing Semantics:
  Oracle Application Server 10g uses pass-by-value
  as required by the EJB specification

Other Benchmark Information
  This submission used the xerces.jar from the SPECjAppServer2002 Kit.
  No hardware or software was used to alter basic network routing.
  The driver used the following jndi.properties
  java.naming.factory.initial=com.evermind.server.rmi.RMIInitialContextFactory
  java.naming.provider.url=ormi://172.25.11.20:23777/SPECjAppServer
  java.naming.security.principal=admin
  java.naming.security.credentials=welcome
  dedicated.rmicontext=true

General Notes
No errors were reported during the final or reproducability run

For questions about this result, please contact the submitter: Oracle Corporation
For other inquiries, please contact webmaster@spec.org

Benchmark run on Tue Aug 19 14:08:40 CDT 2003 by SPECjAppServer2002 v1.14
Result submitted on Wed Aug 20 03:03:02 EDT 2003
Report generated by SPECjAppServer2002 Reporter v1.01

Copyright © 2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 08-Sep-2003
