SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge C6320p (Intel Xeon Phi 7250F 1.40 GHz)

CPU2006 license: 55 Test date: Mar-2017
Test sponsor: Dell Inc. Hardware Availability: Mar-2017
Tested by: Dell Inc. Software Availability: Jan-2017

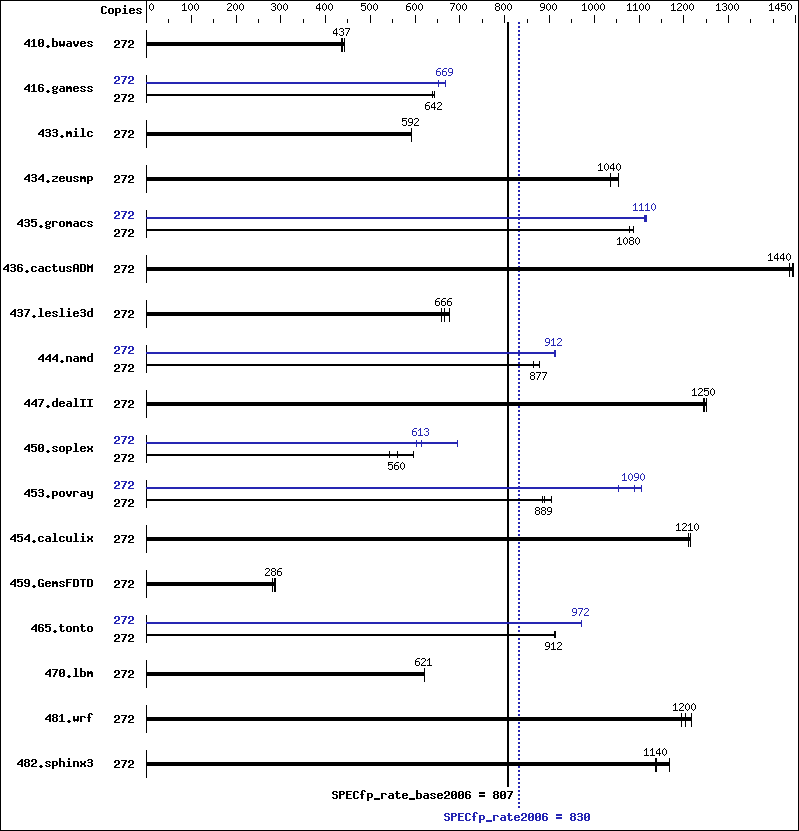

Benchmark results graph
Hardware
CPU Name: Intel Xeon Phi 7250F
CPU Characteristics: Intel Turbo Boost Technology up to 1.60 GHz
CPU MHz: 1400
FPU: Integrated
CPU(s) enabled: 68 cores, 1 chip, 68 cores/chip, 4 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per two cores
L3 Cache: None
Other Cache: None
Memory: 400 GB (6 x 64 GB 2Rx8 PC4-2400T-R + 8 x 2 GB
7200 MHz MCDRAM)
Disk Subsystem: 1 x 1 TB 7.2K RPM SATA
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
4.4.16-56-default
Compiler: C/C++: Version 16.0.2.181 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.2.181 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: btrfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 272 8478 436 8380 441 8450 437 272 8478 436 8380 441 8450 437
416.gamess 272 8294 642 8282 643 8336 639 272 7963 669 8154 653 7964 669
433.milc 272 4220 592 4218 592 4220 592 272 4220 592 4218 592 4220 592
434.zeusmp 272 2387 1040 2390 1040 2349 1050 272 2387 1040 2390 1040 2349 1050
435.gromacs 272 1799 1080 1786 1090 1799 1080 272 1739 1120 1743 1110 1745 1110
436.cactusADM 272 2263 1440 2248 1450 2254 1440 272 2263 1440 2248 1450 2254 1440
437.leslie3d 272 3839 666 3875 660 3773 678 272 3839 666 3875 660 3773 678
444.namd 272 2488 877 2488 877 2526 864 272 2392 912 2391 912 2395 911
447.dealII 272 2499 1250 2496 1250 2489 1250 272 2499 1250 2496 1250 2489 1250
450.soplex 272 4173 544 4051 560 3810 595 272 3762 603 3698 613 3266 695
453.povray 272 1601 904 1628 889 1637 884 272 1374 1050 1327 1090 1309 1110
454.calculix 272 1848 1210 1853 1210 1854 1210 272 1848 1210 1853 1210 1854 1210
459.GemsFDTD 272 10093 286 10226 282 10048 287 272 10093 286 10226 282 10048 287
465.tonto 272 2930 913 2934 912 2936 912 272 2755 971 2752 973 2754 972
470.lbm 272 6009 622 6016 621 6015 621 272 6009 622 6016 621 6015 621
481.wrf 272 2541 1200 2524 1200 2494 1220 272 2541 1200 2524 1200 2494 1220
482.sphinx3 272 4668 1140 4652 1140 4539 1170 272 4668 1140 4652 1140 4539 1170

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on linux-z6tq Sun Mar 26 13:59:58 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon Phi(TM) CPU 7250F @ 1.40GHz
       1 "physical id"s (chips)
       272 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 68
       siblings  : 272
       physical 0: cores 0 1 8 9 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26 27
       28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
       53 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73
    cache size : 1024 KB

 From /proc/meminfo
    MemTotal:       396134156 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-z6tq 4.4.16-56-default #1 SMP Mon Aug 8 14:24:26 UTC 2016
    (5b281a8) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Mar 23 17:34

 SPEC is set to: /root/cpu2006-1.2
    Filesystem     Type   Size  Used Avail Use% Mounted on
    /dev/sdb2      btrfs  930G  533G  394G  58% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Dell Inc. 1.1.7 003/003/2017
   Memory:
    6x Hynix HMAA8GL7MMR4N-UH 64 GB 4 rank 2400 MHz
    8x INTEL N/A 2 GB 7200 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh"

 Binaries compiled on a system with
 Intel 2nd Generation Xeon Phi CPU
 with 96 GB DDR4 memory using RedHat EL 7.2
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias

C++ benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias

Fortran benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -D_FILE_OFFSET_BITS=64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -opt-malloc-options=3
453.povray:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.html,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.xml,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.xml.
