SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M12-2

CPU2006 license: 19 Test date: Mar-2017
Test sponsor: Fujitsu Hardware Availability: Apr-2017
Tested by: Fujitsu Software Availability: Jul-2017

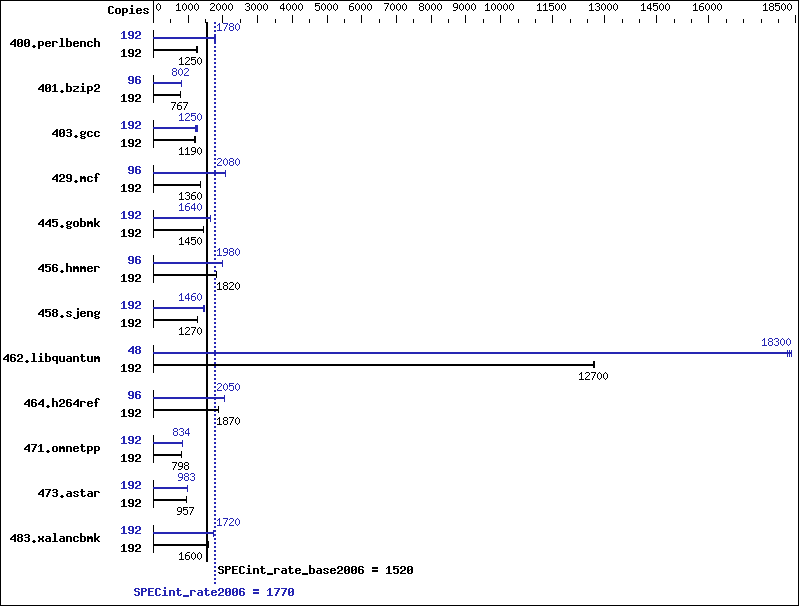

Benchmark results graph
Hardware
CPU Name: SPARC64 XII
CPU Characteristics:
CPU MHz: 3900
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 8 threads/core
CPU(s) orderable: 1 or 2 CPU chips; the number of orderable total
cores is 2, 3, 4, .. 24
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (32 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 600 GB 10K RPM SAS (for system disk)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.3 (with June 2017 SRU)
Compiler: C/C++: Version 12.6 of Oracle Developer Studio
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 192 1502 1250 1497 1250 1496 1250 192 1055   1780 1070   1750 1056   1780
401.bzip2 192 2423 765 2417 767 2416 767 96 1156   802 1156   802 1155   802
403.gcc 192 1303 1190 1291 1200 1318 1170 192 1275   1210 1212   1270 1237   1250
429.mcf 192 1287 1360 1290 1360 1283 1360 96 421   2080 422   2080 422   2080
445.gobmk 192 1393 1450 1392 1450 1390 1450 192 1229   1640 1228   1640 1226   1640
456.hmmer 192 987 1810 987 1820 987 1820 96 452   1980 452   1980 452   1980
458.sjeng 192 1827 1270 1829 1270 1827 1270 192 1598   1450 1596   1460 1594   1460
462.libquantum 192 314 12700 313 12700 313 12700 48 54.1 18400 54.3 18300 54.5 18300
464.h264ref 192 2266 1880 2269 1870 2266 1870 96 1038   2050 1038   2050 1036   2050
471.omnetpp 192 1504 798 1504 798 1504 798 192 1439   834 1438   834 1440   834
473.astar 192 1408 957 1408 957 1408 957 192 1372   983 1373   981 1370   984
483.xalancbmk 192 832 1590 830 1600 830 1600 192 772   1720 771   1720 771   1720

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 86400
       Causes pages older than the listed number of seconds to be written by fsflush.
    doiflush = 0
       Controls whether file system metadata syncs will be executed during fsflush invocations.
    dopageflush = 0
       Controls whether memory is examined for modified pages during fsflush invocations.
    zfs:zfs_arc_max=1073741824
       Determines the maximum size of the ZFS Adaptive Replacement Cache (ARC).

Platform Notes

 Sysinfo program /export/cpu2006/config/sysinfo
 Revision 6993 of 2015-11-06 (975e92c7086bc383773e22882bdda8dd)
 running on H2S-210-D0 Fri Mar  3 16:59:12 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-XII (chipid 0, clock 3900 MHz)
    SPARC64-XII (chipid 1, clock 3900 MHz)
    2 chips
    192 threads
    3900 MHz

 From kstat:       24 cores

 From prtconf: 1046016 Megabytes

 /etc/release:
      Oracle Solaris 11.3 SPARC
 uname -a:
    SunOS H2S-210-D0 5.11 11.3 sun4v sparc sun4v

 SPEC is set to: /export/cpu2006

 disk: df -h  /export/cpu2006
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G   2.6G       401G     1%    /export

 (End of data from sysinfo program)

General Notes

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

 SPEC CPU2006 benchmark:
  Updated with runspec --update

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -std=c99   -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std

C++ benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -library=stlport4   -lfast

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xO4   -Wc,-Qiselect-funcalign=4   -xthroughput=no   -lfast
401.bzip2:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xalias_level=strong   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=4   -Wc,-Qicache-chbab=1   -xinline_param=max_inst_hard:1000,max_inst_soft:500,max_growth:60   -lfast
403.gcc:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xipo=2   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -xcache=32/128/4/4:256/128/8/4:8192/128/16/24   -xalias_level=layout
429.mcf:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=2   -xalias_level=std   -xprefetch=latx:0.2   -W2,-Asac   -Wc,-Qiselect-funcalign=64
445.gobmk:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -Wc,-Qgsched-T=4
456.hmmer:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=1   -xunroll=8   -Wc,-Qms_pipe-pref   -Wc,-Qiselect-funcalign=4   -xcache=32/128/4/4:256/128/8/4:8192/128/16/48
458.sjeng:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xipo=2   -xalias_level=std   -xunroll=4   -Wc,-Qiselect-funcalign=4   -W2,-Afully_unroll:always=on   -xprefetch=latx:0.6   -xcheck=%none
462.libquantum:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -m64   -xtarget=sparc64xplus   -xipo=2   -xcache=32/128/4/4:256/128/8/4:8192/128/16/24   -xinline_param=level:1   -Wc,-Qiselect-funcalign=4   -xalias_level=layout   -xprefetch=latx:0.2
464.h264ref:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -Wc,-Qiselect-funcalign=4   -xthroughput=no   -xalias_level=layout   -xprefetch=latx:0.2   -xcheck=%none

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=1   -xalias_level=compatible   -xunroll=2   -xprefetch_level=3   -W2,-Asac   -xthroughput=no   -lfast
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xalias_level=compatible   -xipo=2   -xunroll=6   -xrestrict=%source   -Wc,-Qiselect-funcalign=64   -Wc,-Qgsched-T=4   -xprefetch=latx:0.3   -lfast
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=2   -xalias_level=compatible   -xdepend   -xprefetch_level=3   -xprefetch=latx:0.4   -library=stlport4   -W2,-Asac   -Wc,-Qiselect-funcalign=64   -features=no%except   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.html,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2.xml.
