SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M12-2S

CPU2006 license: 19 Test date: Mar-2017
Test sponsor: Fujitsu Hardware Availability: Apr-2017
Tested by: Fujitsu Software Availability: Jul-2017

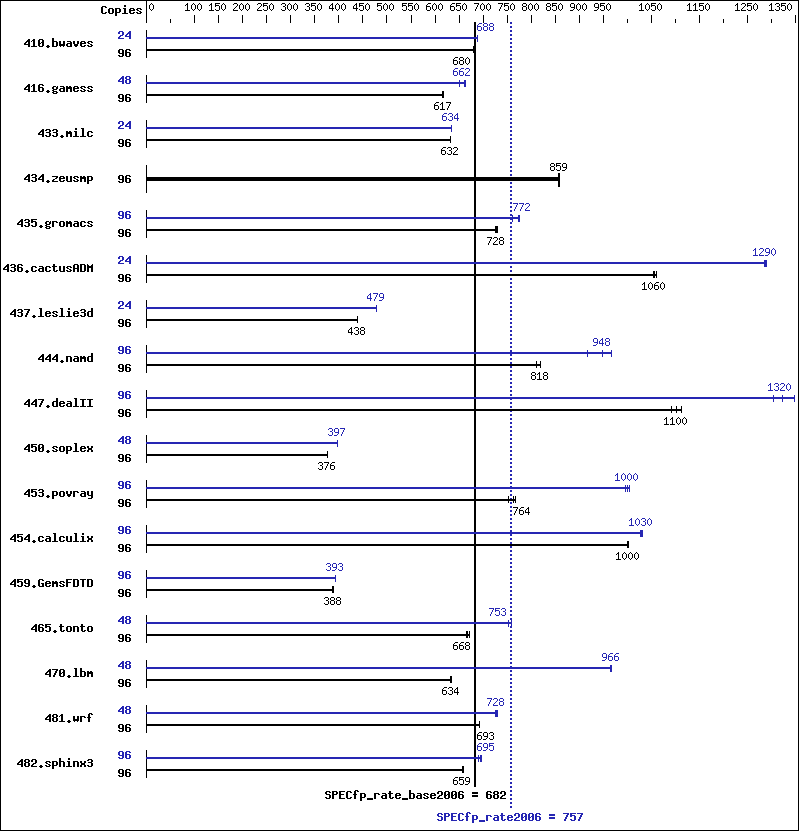

Benchmark results graph
Hardware
CPU Name: SPARC64 XII
CPU Characteristics: High Speed Mode up to 4.35 GHz
CPU MHz: 4250
FPU: Integrated
CPU(s) enabled: 12 cores, 1 chip, 12 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 1 or 2 CPU chips;
the number of orderable total cores is 2, 3, 4,
.. 384
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (16 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 600 GB 10K RPM SAS (for system disk)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.3 (with June 2017 SRU)
Compiler: C/C++/Fortran: Version 12.6 of Oracle Developer
Studio
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 96 1919 680 1919 680 1919 680 24 474 688 474 688 474 688
416.gamess 96 3041 618 3052 616 3046 617 48 1444 651 1419 662 1416 664
433.milc 96 1395 632 1394 632 1395 632 24 347 634 348 634 347 634
434.zeusmp 96 1017 859 1019 857 1017 859 96 1017 859 1019 857 1017 859
435.gromacs 96 944 726 942 728 939 730 96 884 775 900 762 887 772
436.cactusADM 96 1085 1060 1082 1060 1089 1050 24 223 1290 223 1290 223 1290
437.leslie3d 96 2060 438 2060 438 2060 438 24 471 479 471 479 471 479
444.namd 96 950 810 940 819 941 818 96 812 948 839 918 796 967
447.dealII 96 1007 1090 996 1100 986 1110 96 816 1350 830 1320 842 1300
450.soplex 96 2129 376 2129 376 2130 376 48 1008 397 1008 397 1007 397
453.povray 96 665 768 678 753 669 764 96 511 1000 513 996 509 1000
454.calculix 96 791 1000 791 1000 789 1000 96 769 1030 772 1030 768 1030
459.GemsFDTD 96 2626 388 2629 387 2619 389 96 2591 393 2588 394 2593 393
465.tonto 96 1414 668 1421 665 1408 671 48 623 759 627 753 627 753
470.lbm 96 2083 633 2079 634 2080 634 48 684 964 682 966 682 966
481.wrf 96 1550 692 1546 693 1546 693 48 735 729 739 726 737 728
482.sphinx3 96 2840 659 2839 659 2846 658 96 2710 690 2692 695 2688 696

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 86400
       Causes pages older than the listed number of seconds to be written by fsflush.
    doiflush = 0
       Controls whether file system metadata syncs will be executed during fsflush invocations.
    dopageflush = 0
       Controls whether memory is examined for modified pages during fsflush invocations.
    zfs:zfs_arc_max=1073741824
       Determines the maximum size of the ZFS Adaptive Replacement Cache (ARC).

Platform Notes

Firmware Settings:
(XSCF operations)
   Set High Speed Mode via XSCF command "sethsmode -s on".

 Sysinfo program /export/cpu2006/config/sysinfo
 Revision 6993 of 2015-11-06 (c9426fd40261140bb4c02f7d35768596)
 running on H2S-253-D0 Wed Mar  1 13:22:00 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-XII (chipid 0, clock 4250 MHz)
    1 chips
    96 threads
    4250 MHz

 From kstat:       12 cores

 From prtconf: 521728 Megabytes

 /etc/release:
      Oracle Solaris 11.3 SPARC
 uname -a:
    SunOS H2S-253-D0 5.11 11.3 sun4v sparc sun4v

 SPEC is set to: /export/cpu2006

 disk: df -h  /export/cpu2006
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G   9.1G       265G     4%    /export

 (End of data from sysinfo program)

General Notes

 The Building Block (BB) is just a Fujitsu SPARC M12-2S that is the basic
 unit to be expanded as if stacking up children's blocks.

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

 SPEC CPU2006 benchmark:
  Updated with runspec --update

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Base Optimization Flags

C benchmarks:

 -std=c99   -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2

C++ benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%lib

Benchmarks using both Fortran and C:

 -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2   -xvector=no%lib

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Peak Optimization Flags

C benchmarks:

433.milc:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -fsimple=1   -W2,-Ainline:rs=400   -Qoption cg -Qms_pipe+alldoall   -W2,-Asac   -xthroughput=no
470.lbm:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
482.sphinx3:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xipo=2   -xprefetch=latx:0.6   -xinline_param=level:1   -xprefetch=no%auto   -lbsdmalloc

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -xprefetch=no%auto   -Wc,-Qms_pipe+alldoall
447.dealII:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -xalias_level=compatible   -xrestrict   -xprefetch=no%auto   -Qoption cg -Qiselect-funcalign=64   -xthroughput=yes   -library=stdcxx4   -template=extdef
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -Wc,-Qlp=0
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xtarget=sparc64xplus   -xipo=2   -xalias_level=compatible   -xlinkopt=2   -xprefetch=no%auto   -xunroll=7   -Qoption iropt -Ainline:rs=1024   -Qoption iropt -Ainline:cs=1024   -Qoption iropt -Ainline:inc=900   -lfast

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xunroll=4   -xvector=%none   -xprefetch=no%auto
416.gamess:  -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%simd   -xprefetch=latx:0.1
434.zeusmp:  basepeak = yes
437.leslie3d:  -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=2   -xvector=%none   -xprefetch=latx:0.8   -Qoption cg -Qms_pipe+alldoall   -xinline_param=level:1   -xthroughput=no
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.2   -xprefetch_level=3   -Qoption cg -Qlp-av=128   -Qoption iropt -Rujam
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=1   -xO4   -xunroll=3   -xprefetch=no%auto   -xthroughput=no   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=strong   -Wc,-Qicache-chbab=1   -Wc,-Qiselect-rsqrta=2   -Wc,-Qiselect-rsqrta1x=2   -qoption cg -Qicache-chbab=1   -qoption cg -Qiselect-rsqrta=2   -qoption cg -Qiselect-rsqrta1x=2
436.cactusADM:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xunroll=10   -xprefetch=latx:2.0   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
454.calculix:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -Wc,-Qiselect-funcalign=64   -xinline_param=level:3   -Qoption cg -Qiselect-funcalign=64
481.wrf:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.4   -Qoption iropt -Rujam   -xO4   -xthroughput=no

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.html,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.xml.
