SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M12-2S

CPU2006 license: 19 Test date: Mar-2017
Test sponsor: Fujitsu Hardware Availability: Apr-2017
Tested by: Fujitsu Software Availability: Jul-2017

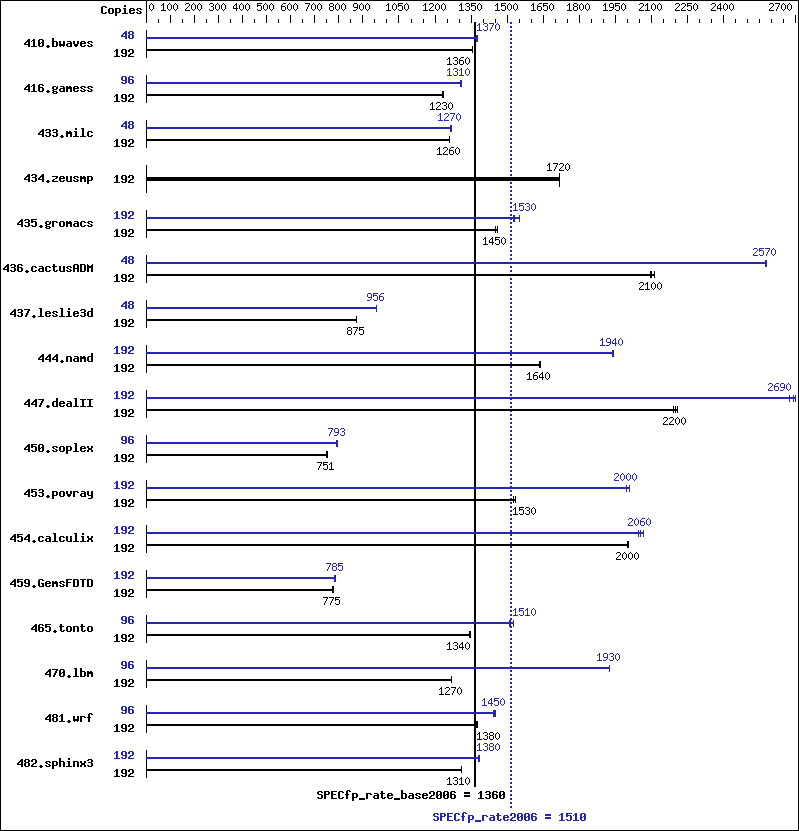

Benchmark results graph
Hardware
CPU Name: SPARC64 XII
CPU Characteristics: High Speed Mode up to 4.35 GHz
CPU MHz: 4250
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 1 or 2 CPU chips;
the number of orderable total cores is 2, 3, 4,
.. 384
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (32 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 600 GB 10K RPM SAS (for system disk)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.3 (with June 2017 SRU)
Compiler: C/C++/Fortran: Version 12.6 of Oracle Developer
Studio
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 192 1922 1360 1925 1360 1924 1360 48 475 1370 475 1370 475 1370
416.gamess 192 3046 1230 3052 1230 3051 1230 96 1438 1310 1435 1310 1439 1310
433.milc 192 1397 1260 1398 1260 1397 1260 48 348 1270 348 1270 348 1270
434.zeusmp 192 1018 1720 1018 1720 1017 1720 192 1018 1720 1018 1720 1017 1720
435.gromacs 192 939 1460 945 1450 944 1450 192 885 1550 898 1530 896 1530
436.cactusADM 192 1094 2100 1092 2100 1085 2110 48 223 2580 223 2570 223 2570
437.leslie3d 192 2062 875 2064 874 2063 875 48 473 955 472 956 472 956
444.namd 192 942 1630 940 1640 942 1640 192 794 1940 794 1940 795 1940
447.dealII 192 998 2200 1002 2190 995 2210 192 814 2700 821 2680 817 2690
450.soplex 192 2133 751 2132 751 2133 751 96 1012 792 1010 793 1009 794
453.povray 192 669 1530 665 1540 666 1530 192 512 2000 508 2010 511 2000
454.calculix 192 789 2010 792 2000 791 2000 192 774 2050 767 2070 770 2060
459.GemsFDTD 192 2633 774 2629 775 2623 777 192 2594 785 2601 783 2596 785
465.tonto 192 1406 1340 1408 1340 1401 1350 96 626 1510 619 1530 624 1510
470.lbm 192 2081 1270 2079 1270 2079 1270 96 685 1930 684 1930 685 1930
481.wrf 192 1561 1370 1558 1380 1556 1380 96 740 1450 741 1450 744 1440
482.sphinx3 192 2854 1310 2853 1310 2857 1310 192 2706 1380 2712 1380 2703 1380

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 86400
       Causes pages older than the listed number of seconds to be written by fsflush.
    doiflush = 0
       Controls whether file system metadata syncs will be executed during fsflush invocations.
    dopageflush = 0
       Controls whether memory is examined for modified pages during fsflush invocations.
    zfs:zfs_arc_max=1073741824
       Determines the maximum size of the ZFS Adaptive Replacement Cache (ARC).

Platform Notes

Firmware Settings:
(XSCF operations)
   Set High Speed Mode via XSCF command "sethsmode -s on".

 Sysinfo program /export/cpu2006/config/sysinfo
 Revision 6993 of 2015-11-06 (c9426fd40261140bb4c02f7d35768596)
 running on H2S-257-D0 Thu Mar  2 20:14:13 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-XII (chipid 0, clock 4250 MHz)
    SPARC64-XII (chipid 1, clock 4250 MHz)
    2 chips
    192 threads
    4250 MHz

 From kstat:       24 cores

 From prtconf: 1046016 Megabytes

 /etc/release:
      Oracle Solaris 11.3 SPARC
 uname -a:
    SunOS H2S-257-D0 5.11 11.3 sun4v sparc sun4v

 SPEC is set to: /export/cpu2006

 disk: df -h  /export/cpu2006
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G    25G       244G    10%    /export

 (End of data from sysinfo program)

General Notes

 The Building Block (BB) is just a Fujitsu SPARC M12-2S that is the basic
 unit to be expanded as if stacking up children's blocks.

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

 SPEC CPU2006 benchmark:
  Updated with runspec --update

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Base Optimization Flags

C benchmarks:

 -std=c99   -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2

C++ benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%lib

Benchmarks using both Fortran and C:

 -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2   -xvector=no%lib

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Peak Optimization Flags

C benchmarks:

433.milc:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -fsimple=1   -W2,-Ainline:rs=400   -Qoption cg -Qms_pipe+alldoall   -W2,-Asac   -xthroughput=no
470.lbm:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
482.sphinx3:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xipo=2   -xprefetch=latx:0.6   -xinline_param=level:1   -xprefetch=no%auto   -lbsdmalloc

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -xprefetch=no%auto   -Wc,-Qms_pipe+alldoall
447.dealII:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -xalias_level=compatible   -xrestrict   -xprefetch=no%auto   -Qoption cg -Qiselect-funcalign=64   -xthroughput=yes   -library=stdcxx4   -template=extdef
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -Wc,-Qlp=0
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xtarget=sparc64xplus   -xipo=2   -xalias_level=compatible   -xlinkopt=2   -xprefetch=no%auto   -xunroll=7   -Qoption iropt -Ainline:rs=1024   -Qoption iropt -Ainline:cs=1024   -Qoption iropt -Ainline:inc=900   -lfast

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xunroll=4   -xvector=%none   -xprefetch=no%auto
416.gamess:  -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%simd   -xprefetch=latx:0.1
434.zeusmp:  basepeak = yes
437.leslie3d:  -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=2   -xvector=%none   -xprefetch=latx:0.8   -Qoption cg -Qms_pipe+alldoall   -xinline_param=level:1   -xthroughput=no
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.2   -xprefetch_level=3   -Qoption cg -Qlp-av=128   -Qoption iropt -Rujam
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=1   -xO4   -xunroll=3   -xprefetch=no%auto   -xthroughput=no   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=strong   -Wc,-Qicache-chbab=1   -Wc,-Qiselect-rsqrta=2   -Wc,-Qiselect-rsqrta1x=2   -qoption cg -Qicache-chbab=1   -qoption cg -Qiselect-rsqrta=2   -qoption cg -Qiselect-rsqrta1x=2
436.cactusADM:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xunroll=10   -xprefetch=latx:2.0   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
454.calculix:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -Wc,-Qiselect-funcalign=64   -xinline_param=level:3   -Qoption cg -Qiselect-funcalign=64
481.wrf:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.4   -Qoption iropt -Rujam   -xO4   -xthroughput=no

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.html,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2017 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Apr 20 09:42:24 2017 by SPEC CPU2006 HTML formatter v6932.
Originally published on 19 April 2017.
