| CPU2006 license: | 3175 | Test date: | Nov-2016 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Jan-2016 |
| Tested by: | Huawei | Software Availability: | Sep-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4830 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.70 GHz |
| CPU MHz: | 2100 |
| FPU: | Integrated |
| CPU(s) enabled: | 96 cores, 8 chips, 12 cores/chip, 2 threads/core |
| CPU(s) orderable: | 4,8 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC4-2133P-R, running at 1333 MHz) |
| Disk Subsystem: | 2 x 300 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.1 (Maipo) 3.10.0-229.el7.x86_64 |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

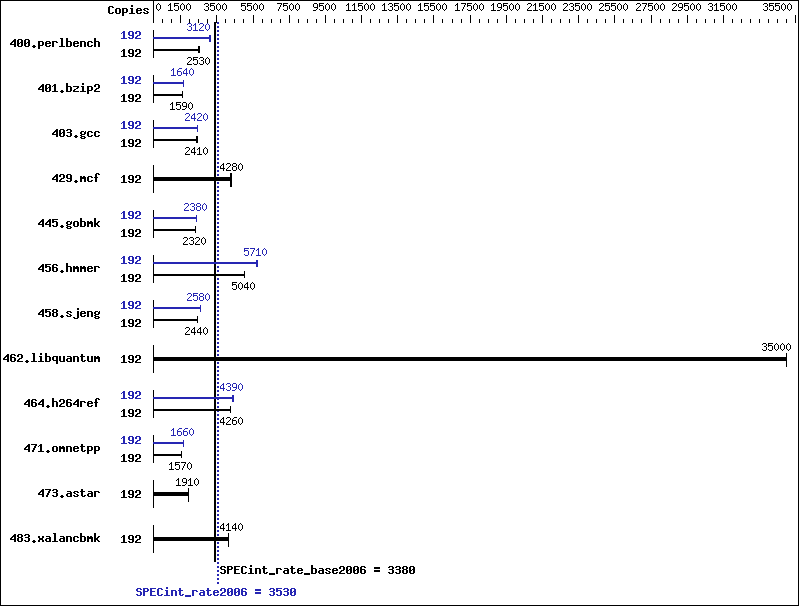

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 192 | 746 | 2510 | 740 | 2530 | 741 | 2530 | 192 | 601 | 3120 | 600 | 3130 | 602 | 3110 |
| 401.bzip2 | 192 | 1162 | 1590 | 1165 | 1590 | 1163 | 1590 | 192 | 1127 | 1640 | 1131 | 1640 | 1127 | 1640 |
| 403.gcc | 192 | 639 | 2420 | 642 | 2410 | 644 | 2400 | 192 | 639 | 2420 | 642 | 2410 | 639 | 2420 |
| 429.mcf | 192 | 406 | 4310 | 409 | 4280 | 411 | 4260 | 192 | 406 | 4310 | 409 | 4280 | 411 | 4260 |
| 445.gobmk | 192 | 868 | 2320 | 868 | 2320 | 867 | 2320 | 192 | 845 | 2380 | 846 | 2380 | 846 | 2380 |
| 456.hmmer | 192 | 354 | 5050 | 356 | 5040 | 357 | 5010 | 192 | 315 | 5680 | 312 | 5750 | 314 | 5710 |
| 458.sjeng | 192 | 950 | 2440 | 950 | 2450 | 950 | 2440 | 192 | 901 | 2580 | 901 | 2580 | 901 | 2580 |
| 462.libquantum | 192 | 114 | 35000 | 114 | 35000 | 114 | 35000 | 192 | 114 | 35000 | 114 | 35000 | 114 | 35000 |
| 464.h264ref | 192 | 997 | 4260 | 1001 | 4250 | 993 | 4280 | 192 | 966 | 4400 | 973 | 4370 | 968 | 4390 |
| 471.omnetpp | 192 | 764 | 1570 | 765 | 1570 | 764 | 1570 | 192 | 724 | 1660 | 723 | 1660 | 725 | 1650 |
| 473.astar | 192 | 702 | 1920 | 705 | 1910 | 705 | 1910 | 192 | 702 | 1920 | 705 | 1910 | 705 | 1910 |
| 483.xalancbmk | 192 | 320 | 4140 | 320 | 4140 | 321 | 4130 | 192 | 320 | 4140 | 320 | 4140 | 321 | 4130 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Turbo mode set with: cpupower -c all frequency-set -g performance
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Set Lock_step to disabled Baseboard Management Controller used to adjust the fan speed to 100% Set C-State to C0/C1 Sysinfo program /home/spec/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on localhost.localdomain Wed Nov 2 17:44:21 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-4830 v3 @ 2.10GHz 8 "physical id"s (chips) 192 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 2: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 3: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 4: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 5: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 6: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 7: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 30720 KB From /proc/meminfo MemTotal: 1053928068 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.1 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.1" PRETTY_NAME="Red Hat Enterprise Linux Server 7.1 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.1:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.1 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.1 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.1:ga:server uname -a: Linux localhost.localdomain 3.10.0-229.el7.x86_64 #1 SMP Thu Jan 29 18:37:38 EST 2015 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 2 17:41 SPEC is set to: /home/spec Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/rhel-home xfs 502G 89G 414G 18% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS American Megatrends Inc. BLXSV023 04/01/2016 Memory: 64x Micron 18ASF2G72PDZ-2G3B1 16 GB 2 rank , configured at 1333 MHz 128x NO DIMM NO DIMM (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/spec/libs/32:/home/spec/libs/64:/home/spec/sh" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Base Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
