| CPU2006 license: | 4204 | Test date: | Dec-2016 |
|---|---|---|---|
| Test sponsor: | M Computers s.r.o. | Hardware Availability: | Sep-2016 |
| Tested by: | M Computers s.r.o. | Software Availability: | Feb-2016 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Phi 7210 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 1.50 GHz |
| CPU MHz: | 1300 |
| FPU: | Integrated |
| CPU(s) enabled: | 64 cores, 1 chip, 64 cores/chip, 4 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per two cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 192 GB (6 x 32 GB 2Rx4 PC4-2400T-R, running at 1200MHz) |
| Disk Subsystem: | 800 GB SSD |
| Other Hardware: | 16 GB MCDRAM |
| Software | |
|---|---|
| Operating System: | CentOS 7.2 3.10.0-327.18.2.el7.x86_64 |
| Compiler: | C/C++: Version 16.0.2.181 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.2.181 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

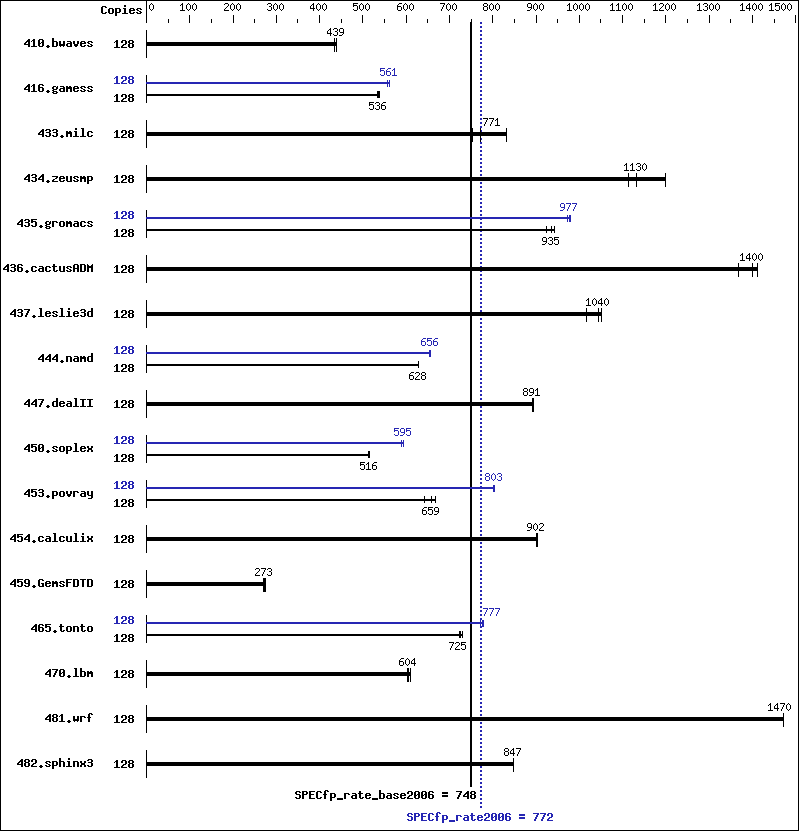

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 128 | 4006 | 434 | 3956 | 440 | 3960 | 439 | 128 | 4006 | 434 | 3956 | 440 | 3960 | 439 |
| 416.gamess | 128 | 4694 | 534 | 4679 | 536 | 4661 | 538 | 128 | 4467 | 561 | 4501 | 557 | 4466 | 561 |
| 433.milc | 128 | 1413 | 832 | 1524 | 771 | 1560 | 753 | 128 | 1413 | 832 | 1524 | 771 | 1560 | 753 |
| 434.zeusmp | 128 | 1045 | 1110 | 1030 | 1130 | 972 | 1200 | 128 | 1045 | 1110 | 1030 | 1130 | 972 | 1200 |
| 435.gromacs | 128 | 969 | 943 | 978 | 935 | 988 | 925 | 128 | 936 | 977 | 940 | 972 | 932 | 981 |
| 436.cactusADM | 128 | 1083 | 1410 | 1118 | 1370 | 1092 | 1400 | 128 | 1083 | 1410 | 1118 | 1370 | 1092 | 1400 |
| 437.leslie3d | 128 | 1153 | 1040 | 1183 | 1020 | 1144 | 1050 | 128 | 1153 | 1040 | 1183 | 1020 | 1144 | 1050 |
| 444.namd | 128 | 1635 | 628 | 1634 | 628 | 1631 | 629 | 128 | 1568 | 655 | 1564 | 656 | 1563 | 657 |
| 447.dealII | 128 | 1644 | 891 | 1639 | 894 | 1643 | 891 | 128 | 1644 | 891 | 1639 | 894 | 1643 | 891 |
| 450.soplex | 128 | 2079 | 514 | 2070 | 516 | 2070 | 516 | 128 | 1794 | 595 | 1809 | 590 | 1795 | 595 |
| 453.povray | 128 | 1060 | 643 | 1033 | 659 | 1020 | 667 | 128 | 849 | 802 | 848 | 803 | 848 | 803 |
| 454.calculix | 128 | 1169 | 903 | 1171 | 902 | 1172 | 901 | 128 | 1169 | 903 | 1171 | 902 | 1172 | 901 |
| 459.GemsFDTD | 128 | 4973 | 273 | 5005 | 271 | 4950 | 274 | 128 | 4973 | 273 | 5005 | 271 | 4950 | 274 |
| 465.tonto | 128 | 1725 | 730 | 1744 | 722 | 1737 | 725 | 128 | 1630 | 773 | 1622 | 777 | 1619 | 778 |
| 470.lbm | 128 | 2911 | 604 | 2887 | 609 | 2910 | 604 | 128 | 2911 | 604 | 2887 | 609 | 2910 | 604 |
| 481.wrf | 128 | 972 | 1470 | 971 | 1470 | 972 | 1470 | 128 | 972 | 1470 | 971 | 1470 | 972 | 1470 |
| 482.sphinx3 | 128 | 2946 | 847 | 2945 | 847 | 2939 | 849 | 128 | 2946 | 847 | 2945 | 847 | 2939 | 849 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Configuration: CPU and Power Performance Policy = Performance Patrol Scrub = Disabled Set Fan Profile = Performance Fan PWM Offset = 100 Cluster mode = Quadrant Memory mode = Cache Processor C6 = Disabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:/spec/sh/:$/opt/intel/compilers_and_libraries_2016.2.181/linux/compiler/lib/intel64_lin" Binaries compiled on a system with 1x Intel 2nd Generation Xeon Phi CPU + 192GB memory using CentOS 7.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xMIC-AVX512 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
C++ benchmarks:
| -xMIC-AVX512 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
Fortran benchmarks:
| -xMIC-AVX512 -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xMIC-AVX512 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -D_FILE_OFFSET_BITS=64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -opt-malloc-options=3 |
| 453.povray: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
