SPEC® CINT2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: HPE)

ProLiant XL260a Gen9
(1.50 GHz, Intel Xeon Phi 7290)

CPU2006 license: 3 Test date: Oct-2016
Test sponsor: HPE Hardware Availability: Oct-2016
Tested by: HPE Software Availability: Nov-2016

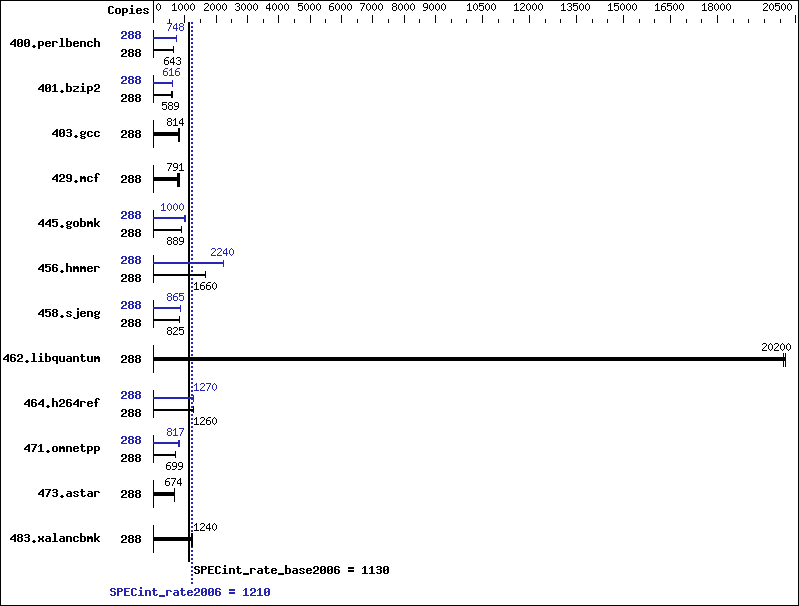

Benchmark results graph
Hardware
CPU Name: Intel Xeon Phi 7290
CPU Characteristics: Intel Turbo Boost Technology up to 1.70 GHz
CPU MHz: 1500
FPU: Integrated
CPU(s) enabled: 72 cores, 1 chip, 72 cores/chip, 4 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per two cores
L3 Cache: None
Other Cache: None
Memory: 384 GB (6 x 64 GB 4Rx4 PC4-2400T-L)
Disk Subsystem: 1 x 800 GB SATA SSD
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 (x86_64) SP2
Kernel 4.4.21-68-default
Compiler: C/C++: Version 16.0.2.181 of Intel C++
Studio XE for Linux
Auto Parallel: No
File System: xfs
System State: Run level 5 (multi-user w/GUI)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 288 4374 643 4360 645 4373 643 288 3763 748 3765 747 3760 748
401.bzip2 288 4877 570 4706 591 4720 589 288 4516 615 4515 616 4484 620
403.gcc 288 2847 814 2830 819 2870 808 288 2847 814 2830 819 2870 808
429.mcf 288 3322 791 3227 814 3408 771 288 3322 791 3227 814 3408 771
445.gobmk 288 3400 888 3398 889 3397 889 288 3003 1010 3008 1000 3021 1000
456.hmmer 288 1616 1660 1623 1660 1616 1660 288 1202 2230 1194 2250 1199 2240
458.sjeng 288 4225 825 4224 825 4216 826 288 4028 865 4019 867 4028 865
462.libquantum 288 297 20100 296 20200 296 20200 288 297 20100 296 20200 296 20200
464.h264ref 288 5034 1270 5046 1260 5039 1260 288 5002 1270 5016 1270 4993 1280
471.omnetpp 288 2553 705 2575 699 2577 698 288 2192 821 2214 813 2202 817
473.astar 288 2999 674 3008 672 2997 675 288 2999 674 3008 672 2997 675
483.xalancbmk 288 1609 1240 1594 1250 1623 1220 288 1609 1240 1594 1250 1623 1220

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Transparent Huge Pages enabled with:
    echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
    echo 1 >      /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
    numactl --interleave=all runspec <etc>

Platform Notes

 BIOS Configuration:
    Power Profile set to Maximum Performance
    Thermal Configuration set to Maximum Cooling
    Processor Power and Utilization Monitoring set to Disabled
    Memory Patrol Scrubbing set to Disabled
    Cluster Model set to SNC-4

 Sysinfo program /home/intel/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on xl260a-g9-kn Wed Oct 26 13:27:50 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon Phi(TM) CPU 7290 @ 1.50GHz
       1 "physical id"s (chips)
       288 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 72
       siblings  : 288
       physical 0: cores 0 1 2 4 5 6 7 8 9 10 11 12 13 14 15 18 19 20 21 22 23 24
       25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49
       50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73
    cache size : 1024 KB

 From /proc/meminfo
    MemTotal:       396103624 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP2

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux xl260a-g9-kn 4.4.21-68-default #1 SMP Tue Oct 18 18:19:37 UTC 2016
    (63cf368) x86_64 x86_64 x86_64 GNU/Linux

 run-level 5 Oct 26 13:07

 SPEC is set to: /home/intel
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda4      xfs   703G  4.4G  699G   1% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS HP U24 10/12/2016
   Memory:
    6x UNKNOWN NOT AVAILABLE 64 GB 4 rank 2400 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/intel/libs/32:/home/intel/libs/64:/home/intel/sh"

 Binaries compiled on a system with 1x Intel 2nd Generation Xeon Phi CPU
 + 96GB DDR4 memory using RedHat EL 7.2

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Base Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -D_FILE_OFFSET_BITS=64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64
458.sjeng:  -D_FILE_OFFSET_BITS=64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch

C++ benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/sh -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Peak Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
458.sjeng:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -auto-ilp32
401.bzip2:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -opt-prefetch   -auto-ilp32   -ansi-alias
403.gcc:  basepeak = yes
429.mcf:  basepeak = yes
445.gobmk:  -xMIC-AVX512(pass 2)   -prof-gen(pass 1)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -ansi-alias
456.hmmer:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32
458.sjeng:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.html,
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-Phi-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.xml,
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-Phi-revA.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Wed Dec 28 10:52:30 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 27 December 2016.
