| CPU2006 license: | 13 | Test date: | Jul-2016 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Dec-2015 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2015 |
| Hardware | |
|---|---|
| CPU Name: | AMD A6-8550 |
| CPU Characteristics: | AMD Turbo CORE technology up to 4.00 GHz |
| CPU MHz: | 3700 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 96 KB I on chip per chip; 16 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600U-11) |
| Disk Subsystem: | Seagate Barracuda 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Ultimate 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Fortran: Version 16.0.0.110 of Intel Fortran Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

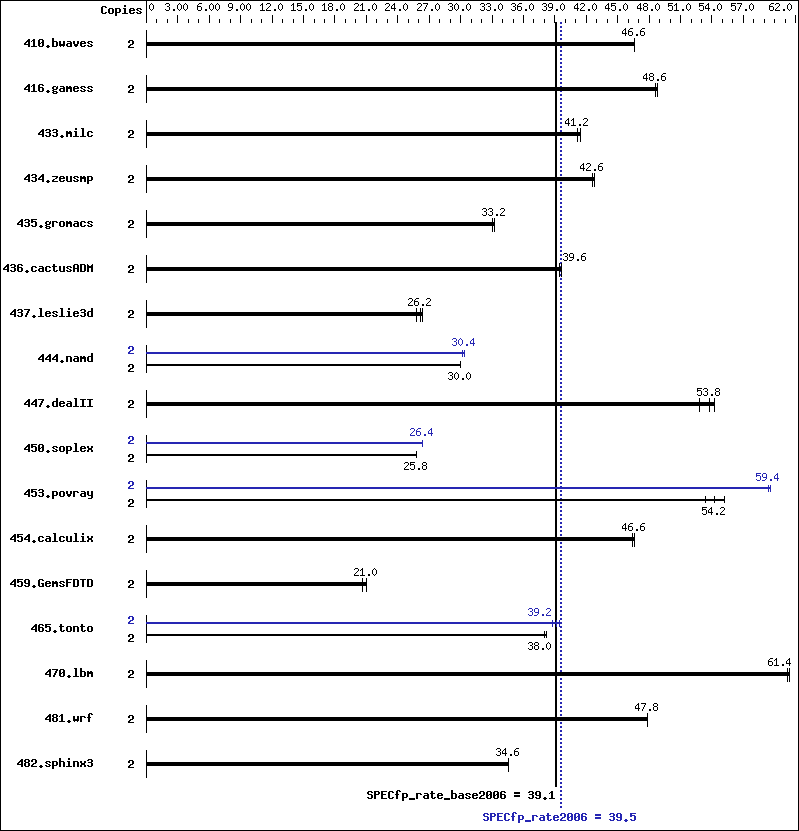

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 2 | 584 | 46.6 | 583 | 46.6 | 584 | 46.6 | 2 | 584 | 46.6 | 583 | 46.6 | 584 | 46.6 |
| 416.gamess | 2 | 806 | 48.6 | 807 | 48.6 | 804 | 48.8 | 2 | 806 | 48.6 | 807 | 48.6 | 804 | 48.8 |
| 433.milc | 2 | 446 | 41.2 | 445 | 41.2 | 444 | 41.4 | 2 | 446 | 41.2 | 445 | 41.2 | 444 | 41.4 |
| 434.zeusmp | 2 | 426 | 42.6 | 427 | 42.6 | 426 | 42.8 | 2 | 426 | 42.6 | 427 | 42.6 | 426 | 42.8 |
| 435.gromacs | 2 | 431 | 33.2 | 432 | 33.0 | 431 | 33.2 | 2 | 431 | 33.2 | 432 | 33.0 | 431 | 33.2 |
| 436.cactusADM | 2 | 604 | 39.6 | 605 | 39.4 | 605 | 39.6 | 2 | 604 | 39.6 | 605 | 39.4 | 605 | 39.6 |
| 437.leslie3d | 2 | 714 | 26.4 | 727 | 25.8 | 720 | 26.2 | 2 | 714 | 26.4 | 727 | 25.8 | 720 | 26.2 |
| 444.namd | 2 | 533 | 30.0 | 533 | 30.0 | 533 | 30.0 | 2 | 528 | 30.4 | 530 | 30.2 | 528 | 30.4 |
| 447.dealII | 2 | 434 | 52.8 | 422 | 54.2 | 425 | 53.8 | 2 | 434 | 52.8 | 422 | 54.2 | 425 | 53.8 |
| 450.soplex | 2 | 647 | 25.8 | 647 | 25.8 | 646 | 25.8 | 2 | 634 | 26.4 | 631 | 26.4 | 630 | 26.4 |
| 453.povray | 2 | 199 | 53.4 | 196 | 54.2 | 193 | 55.2 | 2 | 179 | 59.4 | 179 | 59.6 | 179 | 59.4 |
| 454.calculix | 2 | 354 | 46.6 | 354 | 46.6 | 356 | 46.4 | 2 | 354 | 46.6 | 354 | 46.6 | 356 | 46.4 |
| 459.GemsFDTD | 2 | 1027 | 20.6 | 1008 | 21.0 | 1010 | 21.0 | 2 | 1027 | 20.6 | 1008 | 21.0 | 1010 | 21.0 |
| 465.tonto | 2 | 518 | 38.0 | 516 | 38.2 | 517 | 38.0 | 2 | 503 | 39.2 | 507 | 38.8 | 501 | 39.4 |
| 470.lbm | 2 | 448 | 61.4 | 449 | 61.2 | 448 | 61.4 | 2 | 448 | 61.4 | 449 | 61.2 | 448 | 61.4 |
| 481.wrf | 2 | 468 | 47.8 | 467 | 47.8 | 468 | 47.8 | 2 | 468 | 47.8 | 467 | 47.8 | 468 | 47.8 |
| 482.sphinx3 | 2 | 1124 | 34.6 | 1124 | 34.6 | 1127 | 34.6 | 2 | 1124 | 34.6 | 1124 | 34.6 | 1127 | 34.6 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 16.0 was set up to generate 64-bit binaries with the command: "psxevars.bat intel64" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Platform Notes
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt1C872C5DF572 Wed Jul 13 20:59:57 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Ultimate OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 56 Stepping 1 AuthenticAMD ~3700 Mhz BIOS Version : American Megatrends Inc. 2502, 12/11/2015 Total Physical Memory: 7,108 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 25359 L3CacheSize : 0 MaxClockSpeed : 3700 Name : AMD A6-8550 Radeon R5, 6 Compute Cores 2C+4G NumberOfCores : 1 NumberOfLogicalProcessors: 2 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
450.soplex (peak): "getline_test" src.alt was used. 447.dealII (base): "max_prototype" src.alt was used. 447.dealII (base): "cxx11_make_pair" src.alt was used. 450.soplex (base): "getline_test" src.alt was used. 447.dealII (base): "max_prototype" src.alt was used. 447.dealII (base): "cxx11_make_pair" src.alt was used. Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc12 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc12 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc12 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 /names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DSPEC_CPU_BOOST_CONFIG_MSC_VER -DSPEC_NEED_ALGORITHM |
| 450.soplex: | -DSPEC_CPU_P64 -DSPEC_GETLINE_TEST |
| 453.povray: | -DSPEC_CPU_P64 |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
C++ benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc12 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc12 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc12 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 453.povray: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
