| CPU2006 license: | 19 | Test date: | Jun-2016 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jun-2016 |
| Tested by: | Fujitsu | Software Availability: | Sep-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8891 v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 80 cores, 8 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4,6,8 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 60 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC4-2400T-R, running at 1600 MHz) |
| Disk Subsystem: | 1 x SATA, 1000 GB, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP1 (x86_64) Kernel 3.12.49-11-default |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.0.101 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

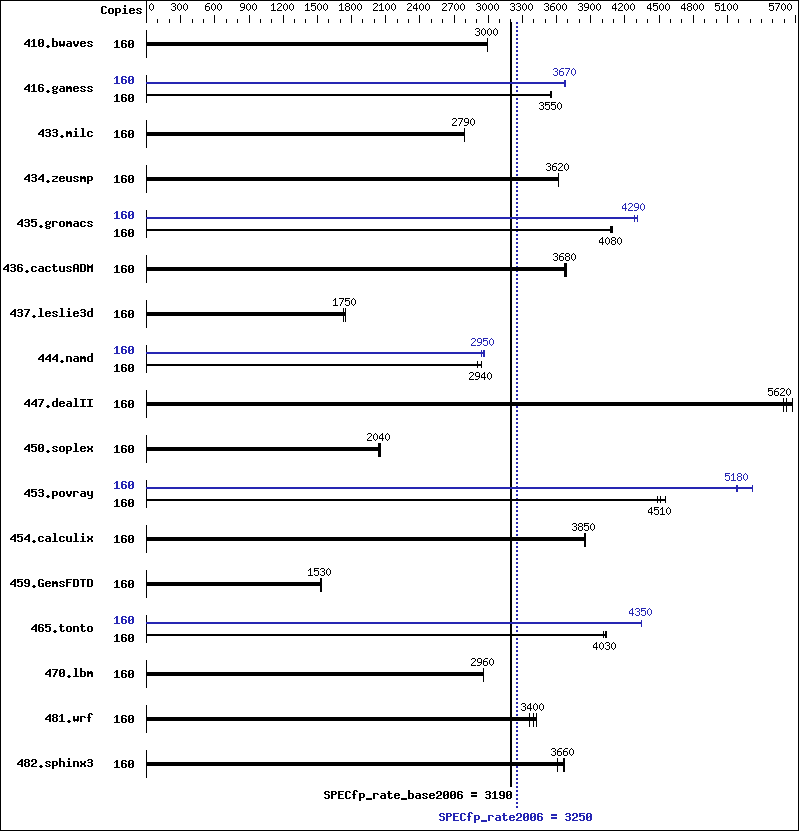

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 160 | 726 | 3000 | 726 | 3000 | 727 | 2990 | 160 | 726 | 3000 | 726 | 3000 | 727 | 2990 |
| 416.gamess | 160 | 883 | 3550 | 881 | 3560 | 882 | 3550 | 160 | 852 | 3680 | 853 | 3670 | 853 | 3670 |
| 433.milc | 160 | 527 | 2790 | 526 | 2790 | 527 | 2790 | 160 | 527 | 2790 | 526 | 2790 | 527 | 2790 |
| 434.zeusmp | 160 | 403 | 3610 | 402 | 3620 | 403 | 3620 | 160 | 403 | 3610 | 402 | 3620 | 403 | 3620 |
| 435.gromacs | 160 | 279 | 4090 | 280 | 4080 | 280 | 4070 | 160 | 267 | 4290 | 267 | 4290 | 265 | 4310 |
| 436.cactusADM | 160 | 519 | 3690 | 521 | 3670 | 520 | 3680 | 160 | 519 | 3690 | 521 | 3670 | 520 | 3680 |
| 437.leslie3d | 160 | 869 | 1730 | 860 | 1750 | 860 | 1750 | 160 | 869 | 1730 | 860 | 1750 | 860 | 1750 |
| 444.namd | 160 | 442 | 2900 | 437 | 2940 | 437 | 2940 | 160 | 432 | 2970 | 436 | 2940 | 434 | 2950 |
| 447.dealII | 160 | 326 | 5620 | 327 | 5590 | 323 | 5670 | 160 | 326 | 5620 | 327 | 5590 | 323 | 5670 |
| 450.soplex | 160 | 656 | 2030 | 650 | 2050 | 654 | 2040 | 160 | 656 | 2030 | 650 | 2050 | 654 | 2040 |
| 453.povray | 160 | 189 | 4510 | 187 | 4560 | 190 | 4480 | 160 | 164 | 5180 | 160 | 5320 | 164 | 5180 |
| 454.calculix | 160 | 343 | 3850 | 343 | 3840 | 343 | 3850 | 160 | 343 | 3850 | 343 | 3840 | 343 | 3850 |
| 459.GemsFDTD | 160 | 1112 | 1530 | 1109 | 1530 | 1108 | 1530 | 160 | 1112 | 1530 | 1109 | 1530 | 1108 | 1530 |
| 465.tonto | 160 | 392 | 4010 | 390 | 4040 | 391 | 4030 | 160 | 363 | 4340 | 362 | 4350 | 362 | 4350 |
| 470.lbm | 160 | 744 | 2950 | 744 | 2960 | 744 | 2960 | 160 | 744 | 2950 | 744 | 2960 | 744 | 2960 |
| 481.wrf | 160 | 522 | 3430 | 526 | 3400 | 532 | 3360 | 160 | 522 | 3430 | 526 | 3400 | 532 | 3360 |
| 482.sphinx3 | 160 | 849 | 3670 | 853 | 3660 | 865 | 3610 | 160 | 849 | 3670 | 853 | 3660 | 865 | 3610 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Energy Performance = Performance Uncore Frequency Override = Maximum Sysinfo program /home/SPECcpu2006/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on linux-8do3 Fri Jun 17 01:24:28 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-8891 v4 @ 2.80GHz 8 "physical id"s (chips) 160 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 20 physical 0: cores 5 9 10 11 13 18 24 26 28 29 physical 1: cores 5 9 10 11 13 18 24 26 28 29 physical 2: cores 5 9 10 11 13 18 24 26 28 29 physical 3: cores 5 9 10 11 13 18 24 26 28 29 physical 4: cores 5 9 10 11 13 18 24 26 28 29 physical 5: cores 5 9 10 11 13 18 24 26 28 29 physical 6: cores 5 9 10 11 13 18 24 26 28 29 physical 7: cores 5 9 10 11 13 18 24 26 28 29 cache size : 61440 KB From /proc/meminfo MemTotal: 1058678360 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 12 SP1 From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 1 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP1" VERSION_ID="12.1" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp1" uname -a: Linux linux-8do3 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015 (8d714a0) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 16 15:59 last=5 SPEC is set to: /home/SPECcpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda4 xfs 982G 145G 837G 15% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS FUJITSU PRIMEQUEST 2000 Series BIOS Version 81.14 04/18/2016 Memory: 64x Hynix HMA42GR7AFR4N-UH 16 GB 2 rank 2400 MHz, configured at 1600 MHz 128x Not Specified Not Specified (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu2006/libs/32:/home/SPECcpu2006/libs/64:/home/SPECcpu2006/sh" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
