SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS Q170M-C motherboard (Intel Core i3-6100T)

CPU2006 license: 13 Test date: Apr-2016
Test sponsor: Intel Corporation Hardware Availability: Sep-2015
Tested by: Intel Corporation Software Availability: Aug-2015

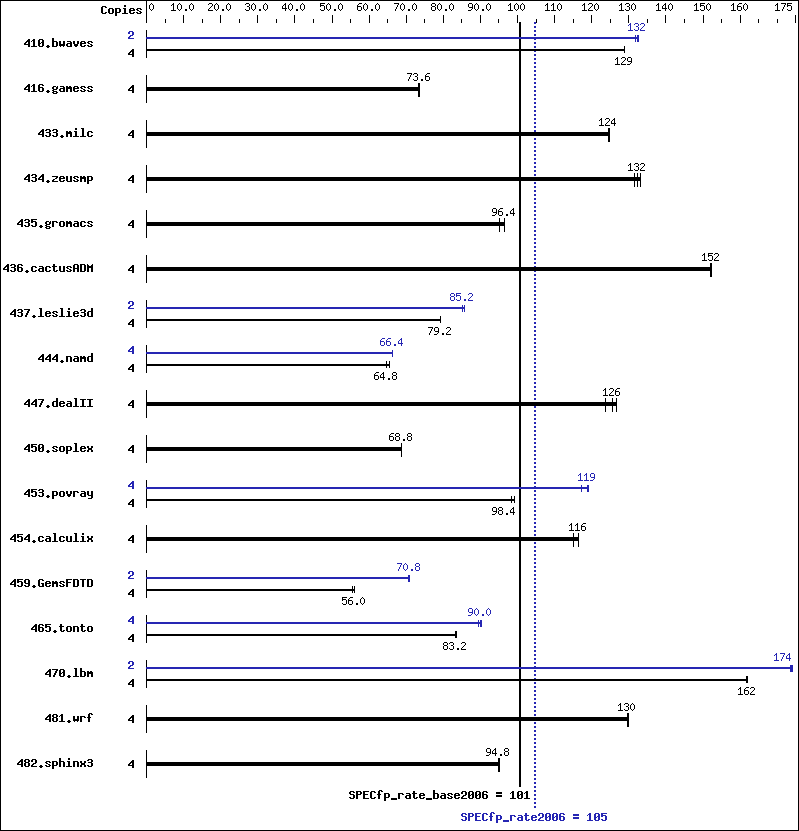

Benchmark results graph
Hardware
CPU Name: Intel Core i3-6100T
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 3 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC4-2133P-U)
Disk Subsystem: 1 TB Seagate Barracuda HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Professional
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 16.0.0.110 of Intel C++ Studio XE
for Windows;
Fortran: Version 16.0.0.110 of Intel Fortran
Studio XE for Windows;
Libraries: Version 18.00.30723 of Microsoft
Visual Studio 2013
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 11.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 422 129   422 129   422 129   2 205 133   205 132   206 132
416.gamess 4 1068 73.2 1065 73.6 1064 73.6 4 1068 73.2 1065 73.6 1064 73.6
433.milc 4 296 124   295 124   294 125   4 296 124   295 124   294 125
434.zeusmp 4 277 132   273 133   275 132   4 277 132   273 133   275 132
435.gromacs 4 300 95.2 296 96.4 297 96.4 4 300 95.2 296 96.4 297 96.4
436.cactusADM 4 314 152   314 152   315 152   4 314 152   314 152   315 152
437.leslie3d 4 475 79.2 474 79.2 475 79.2 2 219 85.8 221 85.2 221 85.2
444.namd 4 494 64.8 494 64.8 489 65.6 4 485 66.4 484 66.4 484 66.4
447.dealII 4 361 127   370 124   364 126   4 361 127   370 124   364 126
450.soplex 4 486 68.8 485 68.8 485 68.8 4 486 68.8 485 68.8 485 68.8
453.povray 4 216 98.4 216 98.4 214 99.2 4 178 119   179 119   181 117
454.calculix 4 287 115   284 116   284 116   4 287 115   284 116   284 116
459.GemsFDTD 4 761 55.6 757 56.0 757 56.0 2 299 71.0 299 70.8 300 70.6
465.tonto 4 472 83.2 472 83.6 474 83.2 4 436 90.4 438 90.0 439 89.6
470.lbm 4 340 162   339 162   339 162   2 158 174   158 174   158 174
481.wrf 4 345 130   345 130   344 130   4 345 130   345 130   344 130
482.sphinx3 4 821 94.8 820 95.2 822 94.8 4 821 94.8 820 95.2 822 94.8

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 16.0 was set up to
 generate 64-bit binaries with the command:
 "psxevars.bat intel64" (shortcut provided in the Intel(r)
 Parallel Studio XE 2016 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC16.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltF832E48859C5 Tue Apr 26 19:44:24 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~3201 Mhz
 BIOS Version  : American Megatrends Inc. 0704, 1/12/2016
 Total Physical Memory: 8,070 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 3072
 MaxClockSpeed : 3201
 Name          : Intel(R) Core(TM) i3-6100T CPU @ 3.20GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

 Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU
 + 64GB memory using Windows 8.1 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   /names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DSPEC_CPU_BOOST_CONFIG_MSC_VER   -DSPEC_NEED_ALGORITHM
450.soplex:  -DSPEC_CPU_P64   -DSPEC_GETLINE_TEST
453.povray:  -DSPEC_CPU_P64
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   /names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxCORE-AVX2   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxCORE-AVX2   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Tue Jul 12 11:02:21 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 12 July 2016.
