| CPU2006 license: | 9006 | Test date: | Mar-2016 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Mar-2016 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon D-1541 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.70 GHz |
| CPU MHz: | 2100 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 1 chip, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (4 x 16 GB 2Rx8 PC4-2133P-T) |
| Disk Subsystem: | 1 x 512 GB SATA, SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.2 (Maipo) Kernel 3.10.0-327.el7.x86_64 |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

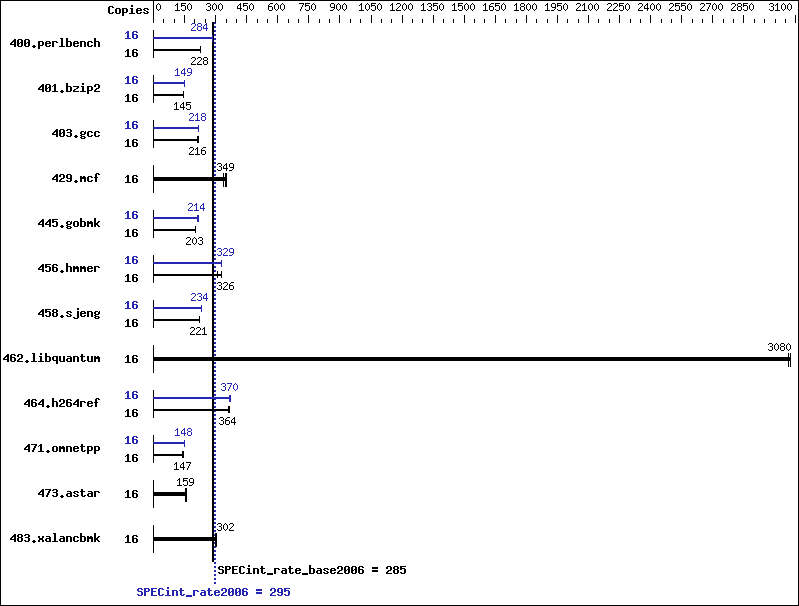

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 686 | 228 | 684 | 229 | 685 | 228 | 16 | 551 | 284 | 550 | 284 | 551 | 284 |
| 401.bzip2 | 16 | 1061 | 145 | 1070 | 144 | 1061 | 146 | 16 | 1036 | 149 | 1037 | 149 | 1037 | 149 |
| 403.gcc | 16 | 604 | 213 | 593 | 217 | 595 | 216 | 16 | 592 | 217 | 590 | 218 | 589 | 219 |
| 429.mcf | 16 | 430 | 339 | 418 | 349 | 415 | 351 | 16 | 430 | 339 | 418 | 349 | 415 | 351 |
| 445.gobmk | 16 | 828 | 203 | 828 | 203 | 828 | 203 | 16 | 785 | 214 | 790 | 213 | 774 | 217 |
| 456.hmmer | 16 | 481 | 310 | 457 | 327 | 458 | 326 | 16 | 454 | 329 | 452 | 330 | 454 | 329 |
| 458.sjeng | 16 | 868 | 223 | 877 | 221 | 876 | 221 | 16 | 828 | 234 | 829 | 234 | 828 | 234 |
| 462.libquantum | 16 | 108 | 3070 | 108 | 3080 | 108 | 3080 | 16 | 108 | 3070 | 108 | 3080 | 108 | 3080 |
| 464.h264ref | 16 | 964 | 367 | 981 | 361 | 974 | 364 | 16 | 969 | 365 | 949 | 373 | 958 | 370 |
| 471.omnetpp | 16 | 709 | 141 | 681 | 147 | 680 | 147 | 16 | 675 | 148 | 675 | 148 | 675 | 148 |
| 473.astar | 16 | 725 | 155 | 704 | 159 | 703 | 160 | 16 | 725 | 155 | 704 | 159 | 703 | 160 |
| 483.xalancbmk | 16 | 371 | 297 | 366 | 302 | 366 | 302 | 16 | 371 | 297 | 366 | 302 | 366 | 302 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Power Management Policy: Custom Energy Performance: Performance Patrol Scrub: Disabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Base Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
