| CPU2006 license: | 001176 | Test date: | Jan-2016 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Sep-2015 |
| Tested by: | Supermicro | Software Availability: | Sep-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-6400 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2700 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 1Rx8 PC4-2800R-U, running at 2133 MHz) |
| Disk Subsystem: | 1 x 200 GB SATA III SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.1, Kernel 3.10.0-229.el7.x86_64 |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

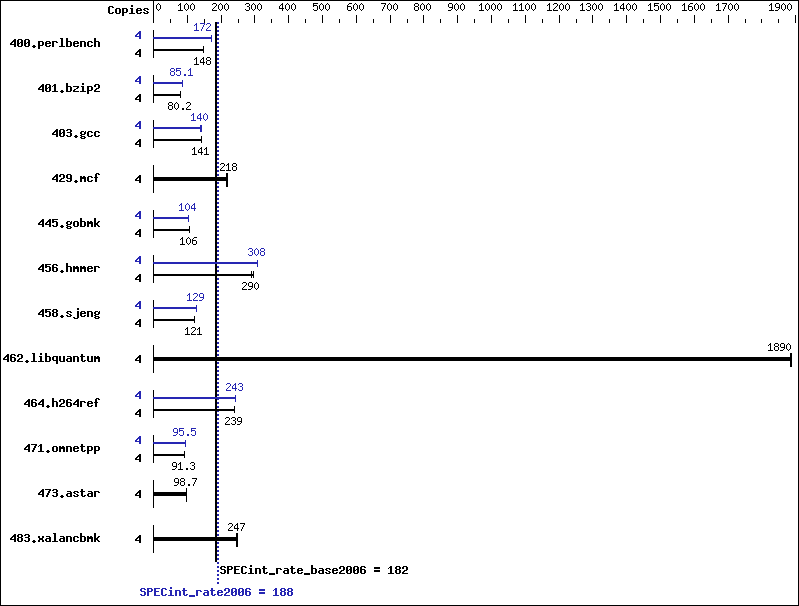

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 264 | 148 | 265 | 148 | 265 | 148 | 4 | 227 | 172 | 228 | 172 | 228 | 172 |
| 401.bzip2 | 4 | 481 | 80.2 | 481 | 80.2 | 482 | 80.1 | 4 | 453 | 85.1 | 454 | 85.0 | 453 | 85.2 |
| 403.gcc | 4 | 229 | 141 | 229 | 141 | 229 | 141 | 4 | 229 | 141 | 230 | 140 | 230 | 140 |
| 429.mcf | 4 | 167 | 219 | 167 | 218 | 168 | 217 | 4 | 167 | 219 | 167 | 218 | 168 | 217 |
| 445.gobmk | 4 | 395 | 106 | 395 | 106 | 396 | 106 | 4 | 402 | 104 | 402 | 104 | 403 | 104 |
| 456.hmmer | 4 | 127 | 295 | 129 | 290 | 129 | 290 | 4 | 121 | 307 | 121 | 308 | 121 | 308 |
| 458.sjeng | 4 | 399 | 121 | 399 | 121 | 399 | 121 | 4 | 376 | 129 | 376 | 129 | 376 | 129 |
| 462.libquantum | 4 | 43.9 | 1890 | 43.9 | 1890 | 44.0 | 1880 | 4 | 43.9 | 1890 | 43.9 | 1890 | 44.0 | 1880 |
| 464.h264ref | 4 | 370 | 239 | 370 | 239 | 370 | 240 | 4 | 364 | 243 | 364 | 243 | 365 | 242 |
| 471.omnetpp | 4 | 274 | 91.3 | 273 | 91.5 | 274 | 91.3 | 4 | 262 | 95.6 | 263 | 95.2 | 262 | 95.5 |
| 473.astar | 4 | 285 | 98.7 | 283 | 99.1 | 285 | 98.7 | 4 | 285 | 98.7 | 283 | 99.1 | 285 | 98.7 |
| 483.xalancbmk | 4 | 111 | 248 | 112 | 246 | 112 | 247 | 4 | 111 | 248 | 112 | 246 | 112 | 247 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
As tested, the system used a Supermicro CSE-743TQ-1200B-SQ chassis. The chassis is configured with a PWS-1K25P-PQ power supply, 1 SNK-P0051AP4 heatsink, as well as 1 FAN-0103L4 rear fan and 2 FAN-0104L4 chassis fan. Sysinfo program /usr/cpu2006/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on C7Z170-01 Fri Jan 1 11:14:04 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Core(TM) i5-6400 CPU @ 2.70GHz 1 "physical id"s (chips) 4 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 cache size : 6144 KB From /proc/meminfo MemTotal: 16206808 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.1 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.1" PRETTY_NAME="Red Hat Enterprise Linux Server 7.1 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.1:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.1 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.1 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.1:ga:server uname -a: Linux C7Z170-01 3.10.0-229.el7.x86_64 #1 SMP Thu Jan 29 18:37:38 EST 2015 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jan 1 01:43 SPEC is set to: /usr/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 xfs 183G 32G 151G 18% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS American Megatrends Inc. 1.0 12/14/2015 Memory: 4x 0420 F4-2800C16-4GRK 4 GB 1 rank 2133 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/usr/cpu2006/libs/32:/usr/cpu2006/libs/64:/usr/cpu2006/sh" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Base Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 403.gcc: | -D_FILE_OFFSET_BITS=64 |
| 429.mcf: | -D_FILE_OFFSET_BITS=64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 458.sjeng: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LP64 |
| 462.libquantum: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -D_FILE_OFFSET_BITS=64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -D_FILE_OFFSET_BITS=64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -ansi-alias |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
