| CPU2006 license: | 19 | Test date: | May-2015 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | May-2015 |
| Tested by: | Fujitsu | Software Availability: | Mar-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8867 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 128 cores, 8 chips, 16 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2,4,6,8 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 45 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 2 TB (128 x 16 GB 2Rx4 PC4-2133P-R, running at 1600 MHz) |
| Disk Subsystem: | 2 x SATA, 600 GB, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.1 (Maipo) 3.10.0-229.el7.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux; Fortran: Version 15.0.0.090 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

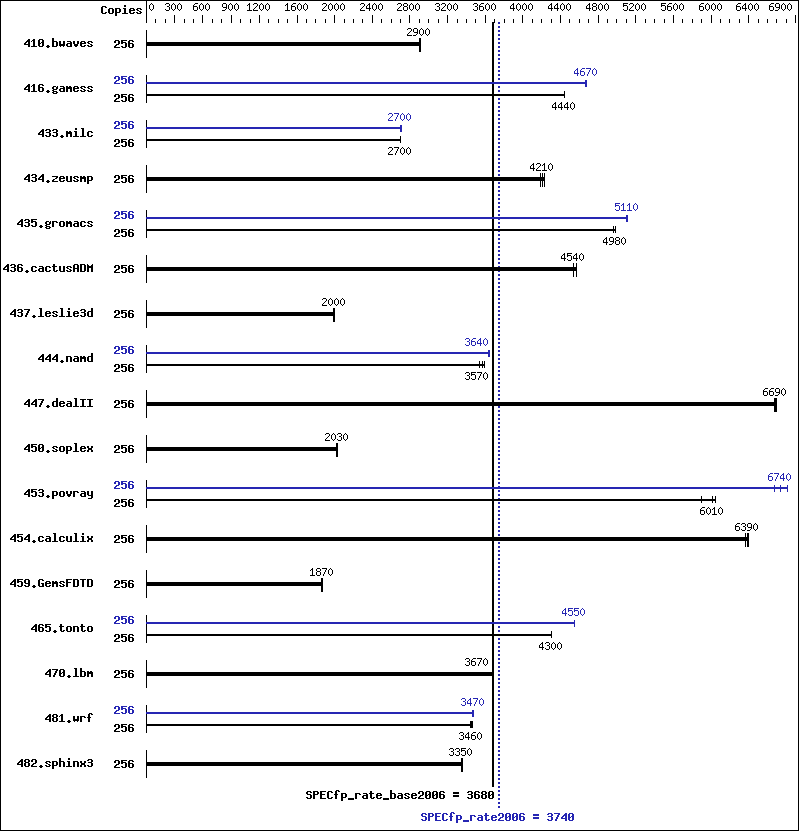

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 256 | 1198 | 2900 | 1195 | 2910 | 1198 | 2900 | 256 | 1198 | 2900 | 1195 | 2910 | 1198 | 2900 |
| 416.gamess | 256 | 1127 | 4450 | 1129 | 4440 | 1128 | 4440 | 256 | 1072 | 4670 | 1073 | 4670 | 1074 | 4670 |
| 433.milc | 256 | 871 | 2700 | 870 | 2700 | 869 | 2700 | 256 | 868 | 2710 | 870 | 2700 | 870 | 2700 |
| 434.zeusmp | 256 | 557 | 4190 | 554 | 4210 | 551 | 4230 | 256 | 557 | 4190 | 554 | 4210 | 551 | 4230 |
| 435.gromacs | 256 | 367 | 4980 | 368 | 4970 | 366 | 4990 | 256 | 358 | 5110 | 358 | 5110 | 358 | 5100 |
| 436.cactusADM | 256 | 675 | 4530 | 670 | 4570 | 675 | 4540 | 256 | 675 | 4530 | 670 | 4570 | 675 | 4540 |
| 437.leslie3d | 256 | 1208 | 1990 | 1204 | 2000 | 1204 | 2000 | 256 | 1208 | 1990 | 1204 | 2000 | 1204 | 2000 |
| 444.namd | 256 | 576 | 3570 | 580 | 3540 | 572 | 3590 | 256 | 564 | 3640 | 564 | 3640 | 566 | 3630 |
| 447.dealII | 256 | 439 | 6670 | 438 | 6690 | 437 | 6700 | 256 | 439 | 6670 | 438 | 6690 | 437 | 6700 |
| 450.soplex | 256 | 1053 | 2030 | 1056 | 2020 | 1054 | 2030 | 256 | 1053 | 2030 | 1056 | 2020 | 1054 | 2030 |
| 453.povray | 256 | 226 | 6010 | 225 | 6050 | 231 | 5900 | 256 | 202 | 6740 | 204 | 6670 | 200 | 6810 |
| 454.calculix | 256 | 330 | 6400 | 331 | 6390 | 332 | 6360 | 256 | 330 | 6400 | 331 | 6390 | 332 | 6360 |
| 459.GemsFDTD | 256 | 1458 | 1860 | 1453 | 1870 | 1456 | 1870 | 256 | 1458 | 1860 | 1453 | 1870 | 1456 | 1870 |
| 465.tonto | 256 | 586 | 4300 | 585 | 4300 | 585 | 4300 | 256 | 553 | 4550 | 553 | 4550 | 554 | 4540 |
| 470.lbm | 256 | 957 | 3670 | 956 | 3680 | 957 | 3670 | 256 | 957 | 3670 | 956 | 3680 | 957 | 3670 |
| 481.wrf | 256 | 827 | 3460 | 830 | 3450 | 825 | 3460 | 256 | 826 | 3460 | 822 | 3480 | 824 | 3470 |
| 482.sphinx3 | 256 | 1485 | 3360 | 1490 | 3350 | 1489 | 3350 | 256 | 1485 | 3360 | 1490 | 3350 | 1489 | 3350 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Energy Performance = Performance
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu2006/libs/32:/home/SPECcpu2006/libs/64:/home/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
Fortran benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 |
