| CPU2006 license: | 19 | Test date: | Feb-2015 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jun-2014 |
| Tested by: | Fujitsu | Software Availability: | Jan-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4820 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 16 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC3L-12800R-11, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

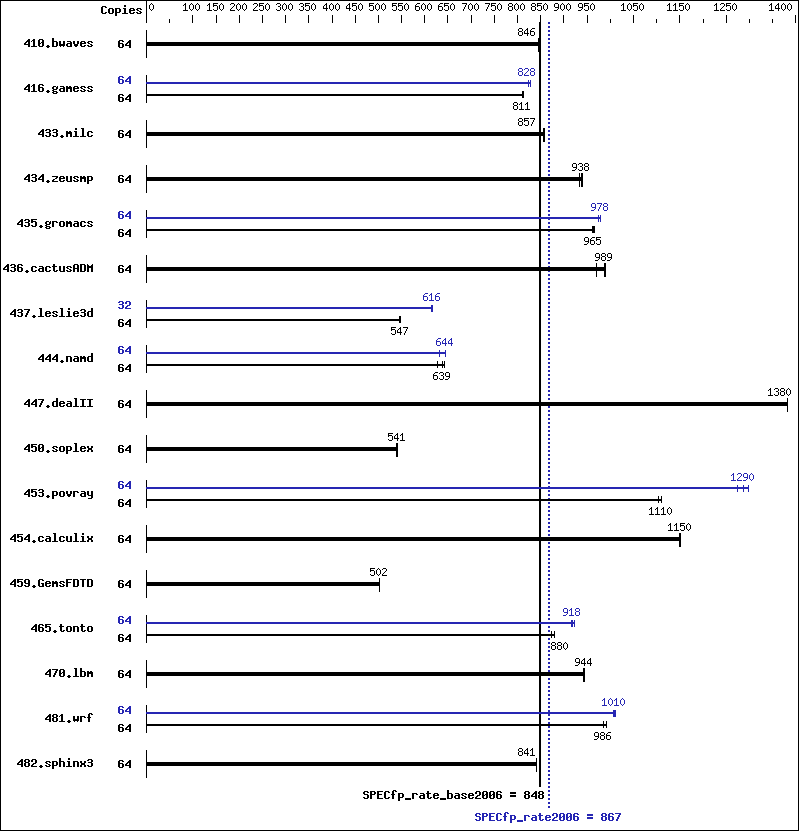

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 64 | 1030 | 844 | 1025 | 848 | 1028 | 846 | 64 | 1030 | 844 | 1025 | 848 | 1028 | 846 |
| 416.gamess | 64 | 1540 | 814 | 1545 | 811 | 1546 | 811 | 64 | 1512 | 829 | 1513 | 828 | 1522 | 823 |
| 433.milc | 64 | 685 | 857 | 686 | 857 | 685 | 857 | 64 | 685 | 857 | 686 | 857 | 685 | 857 |
| 434.zeusmp | 64 | 621 | 938 | 624 | 933 | 619 | 941 | 64 | 621 | 938 | 624 | 933 | 619 | 941 |
| 435.gromacs | 64 | 473 | 967 | 475 | 962 | 474 | 965 | 64 | 467 | 978 | 469 | 975 | 466 | 980 |
| 436.cactusADM | 64 | 773 | 989 | 774 | 989 | 788 | 971 | 64 | 773 | 989 | 774 | 989 | 788 | 971 |
| 437.leslie3d | 64 | 1098 | 548 | 1100 | 547 | 1101 | 547 | 32 | 489 | 616 | 488 | 617 | 489 | 615 |
| 444.namd | 64 | 799 | 643 | 803 | 639 | 819 | 627 | 64 | 812 | 632 | 797 | 644 | 797 | 644 |
| 447.dealII | 64 | 530 | 1380 | 529 | 1380 | 530 | 1380 | 64 | 530 | 1380 | 529 | 1380 | 530 | 1380 |
| 450.soplex | 64 | 986 | 542 | 989 | 540 | 987 | 541 | 64 | 986 | 542 | 989 | 540 | 987 | 541 |
| 453.povray | 64 | 308 | 1110 | 306 | 1110 | 307 | 1110 | 64 | 267 | 1280 | 265 | 1290 | 262 | 1300 |
| 454.calculix | 64 | 458 | 1150 | 458 | 1150 | 459 | 1150 | 64 | 458 | 1150 | 458 | 1150 | 459 | 1150 |
| 459.GemsFDTD | 64 | 1353 | 502 | 1353 | 502 | 1353 | 502 | 64 | 1353 | 502 | 1353 | 502 | 1353 | 502 |
| 465.tonto | 64 | 722 | 873 | 716 | 880 | 715 | 881 | 64 | 686 | 918 | 682 | 923 | 686 | 917 |
| 470.lbm | 64 | 934 | 941 | 931 | 944 | 931 | 944 | 64 | 934 | 941 | 931 | 944 | 931 | 944 |
| 481.wrf | 64 | 720 | 992 | 725 | 986 | 725 | 986 | 64 | 707 | 1010 | 711 | 1010 | 709 | 1010 |
| 482.sphinx3 | 64 | 1483 | 841 | 1485 | 840 | 1482 | 842 | 64 | 1483 | 841 | 1485 | 840 | 1482 | 842 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Energy Performance = Performance
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu2006/libs/32:/home/SPECcpu2006/libs/64:/home/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 |
