SPEC® CINT2006 Result

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS A88X-PRO Motherboard (AMD A10 PRO-7800B with
Radeon R7 Graphics)

SPECint®2006 = 29.9

SPECint_base2006 = 28.6

CPU2006 license:	13	Test date:	Nov-2014
Test sponsor:	Intel Corporation	Hardware Availability:	Jul-2014
Tested by:	Intel Corporation	Software Availability:	Oct-2013

Hardware
CPU Name:	AMD A10 PRO-7800B
CPU Characteristics:	AMD Turbo CORE technology up to 3.90 GHz
CPU MHz:	3500
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	192 KB I on chip per chip, 96 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx4 PC3-17000U-14)
Disk Subsystem:	160 GB Western Digital SATA HDD, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600
Compiler:	C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V10.0

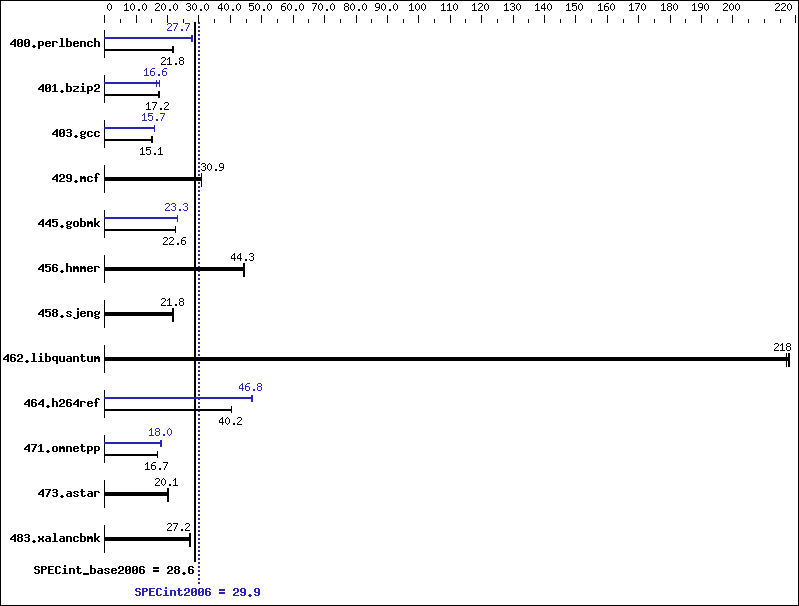

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	447	21.8	453	21.6	445	21.9	352	27.8	352	27.7	353	27.7
401.bzip2	562	17.2	562	17.2	558	17.3	582	16.6	552	17.5	580	16.6
403.gcc	533	15.1	535	15.0	531	15.2	514	15.7	514	15.7	514	15.7
429.mcf	295	30.9	295	30.9	296	30.9	295	30.9	295	30.9	296	30.9
445.gobmk	464	22.6	464	22.6	464	22.6	450	23.3	450	23.3	450	23.3
456.hmmer	210	44.3	211	44.3	210	44.4	210	44.3	211	44.3	210	44.4
458.sjeng	555	21.8	555	21.8	557	21.7	555	21.8	555	21.8	557	21.7
462.libquantum	95.1	218	95.2	218	95.4	217	95.1	218	95.2	218	95.4	217
464.h264ref	551	40.2	547	40.5	551	40.2	473	46.8	472	46.9	473	46.8
471.omnetpp	375	16.7	375	16.7	374	16.7	348	18.0	348	17.9	348	18.0
473.astar	350	20.1	348	20.2	350	20.1	350	20.1	348	20.2	350	20.1
483.xalancbmk	254	27.2	254	27.1	253	27.3	254	27.2	254	27.1	253	27.3

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 14.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Platform Notes

 Sysinfo program C:\SPEC14.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltE03F49B01DC4 Wed Nov  5 22:28:18 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 8.1 Pro
 OS Version    : 6.3.9600 N/A Build 9600
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: AMD64 Family 21 Model 48 Stepping 1 AuthenticAMD ~3500 Mhz
 BIOS Version  : American Megatrends Inc. 1301, 6/24/2014
 Total Physical Memory: 7,105 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 25359
 L3CacheSize   : 0
 MaxClockSpeed : 3500
 Name          : AMD A10-7800 Radeon R7, 12 Compute Cores 4C+8G
 NumberOfCores : 2
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Base Portability Flags

400.perlbench:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 -DSPEC_CPU_NO_NEED_VA_COPY
401.bzip2:	-DSPEC_CPU_P64
403.gcc:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64
429.mcf:	-DSPEC_CPU_P64
445.gobmk:	-DSPEC_CPU_P64
456.hmmer:	-DSPEC_CPU_P64
458.sjeng:	-DSPEC_CPU_P64
462.libquantum:	-DSPEC_CPU_P64
464.h264ref:	-DSPEC_CPU_P64 -DWIN32 -DSPEC_CPU_NO_INTTYPES
471.omnetpp:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64
473.astar:	-DSPEC_CPU_P64
483.xalancbmk:	-DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE
401.bzip2:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias -Qauto-ilp32 /F512000000
403.gcc:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F512000000
429.mcf:	basepeak = yes
445.gobmk:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F512000000
456.hmmer:	basepeak = yes
458.sjeng:	basepeak = yes
462.libquantum:	basepeak = yes
464.h264ref:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000

C++ benchmarks:

471.omnetpp:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE
473.astar:	basepeak = yes
483.xalancbmk:	basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.xml.
