| CPU2006 license: | 3175 | Test date: | Sep-2014 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Sep-2013 |
| Tested by: | Huawei | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2620 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.60 GHz |
| CPU MHz: | 2100 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (8 x 16 GB 2Rx4 PC3-14900R-11, ECC, running at 1600 MHz) |
| Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

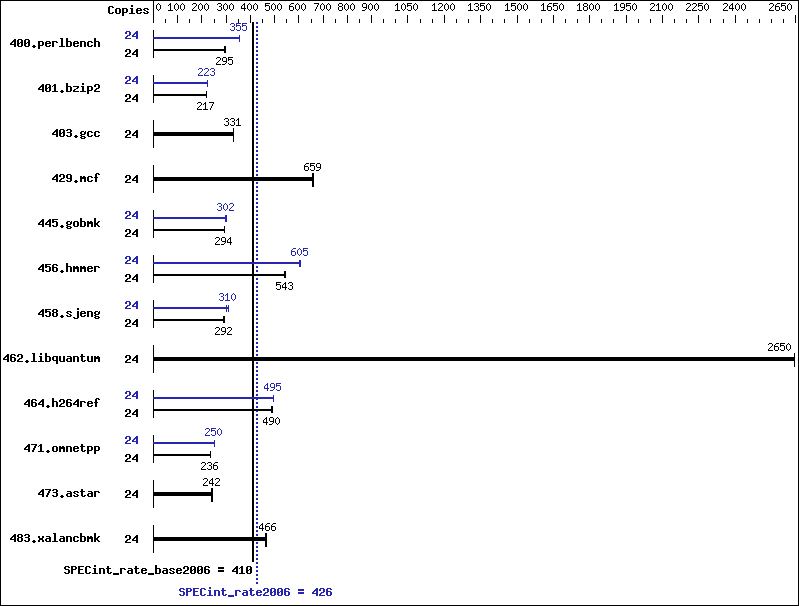

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 794 | 295 | 793 | 296 | 796 | 295 | 24 | 662 | 354 | 659 | 356 | 660 | 355 |
| 401.bzip2 | 24 | 1067 | 217 | 1063 | 218 | 1068 | 217 | 24 | 1040 | 223 | 1041 | 222 | 1041 | 223 |
| 403.gcc | 24 | 582 | 332 | 584 | 331 | 586 | 330 | 24 | 582 | 332 | 584 | 331 | 586 | 330 |
| 429.mcf | 24 | 333 | 658 | 332 | 659 | 332 | 659 | 24 | 333 | 658 | 332 | 659 | 332 | 659 |
| 445.gobmk | 24 | 859 | 293 | 856 | 294 | 853 | 295 | 24 | 835 | 302 | 851 | 296 | 834 | 302 |
| 456.hmmer | 24 | 412 | 543 | 414 | 541 | 412 | 543 | 24 | 370 | 606 | 371 | 603 | 370 | 605 |
| 458.sjeng | 24 | 994 | 292 | 1003 | 290 | 996 | 292 | 24 | 965 | 301 | 937 | 310 | 937 | 310 |
| 462.libquantum | 24 | 188 | 2650 | 188 | 2640 | 188 | 2650 | 24 | 188 | 2650 | 188 | 2640 | 188 | 2650 |
| 464.h264ref | 24 | 1080 | 492 | 1087 | 488 | 1083 | 490 | 24 | 1071 | 496 | 1075 | 494 | 1072 | 495 |
| 471.omnetpp | 24 | 637 | 236 | 640 | 235 | 636 | 236 | 24 | 599 | 250 | 597 | 251 | 599 | 250 |
| 473.astar | 24 | 700 | 241 | 697 | 242 | 696 | 242 | 24 | 700 | 241 | 697 | 242 | 696 | 242 |
| 483.xalancbmk | 24 | 358 | 463 | 354 | 467 | 356 | 466 | 24 | 358 | 463 | 354 | 467 | 356 | 466 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Custom Baseboard Management Controller used to adjust the fan speed to 100% Sysinfo program /spec/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on localhost Tue Sep 9 06:52:58 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2620 v2 @ 2.10GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132103760 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 9 06:47 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 439G 74G 343G 18% / Additional information from dmidecode: BIOS Insyde Corp. RMIBV388 08/09/2014 Memory: 8x Samsung M393B2G70QH0-CMA 16 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:/spec/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> The Huawei RH2288A V2 and Huawei RH1288A V2 are electronically equivalent. The results have been measured on a Huawei RH2288A V2 model
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
