| CPU2006 license: | 13 | Test date: | Sep-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2014 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-4300U |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.90 GHz |
| CPU MHz: | 1900 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (4 x 1 GB 2Rx32 PC3L-12800U-11) |
| Disk Subsystem: | 128 GB SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Fortran: Version 14.0.1.139 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

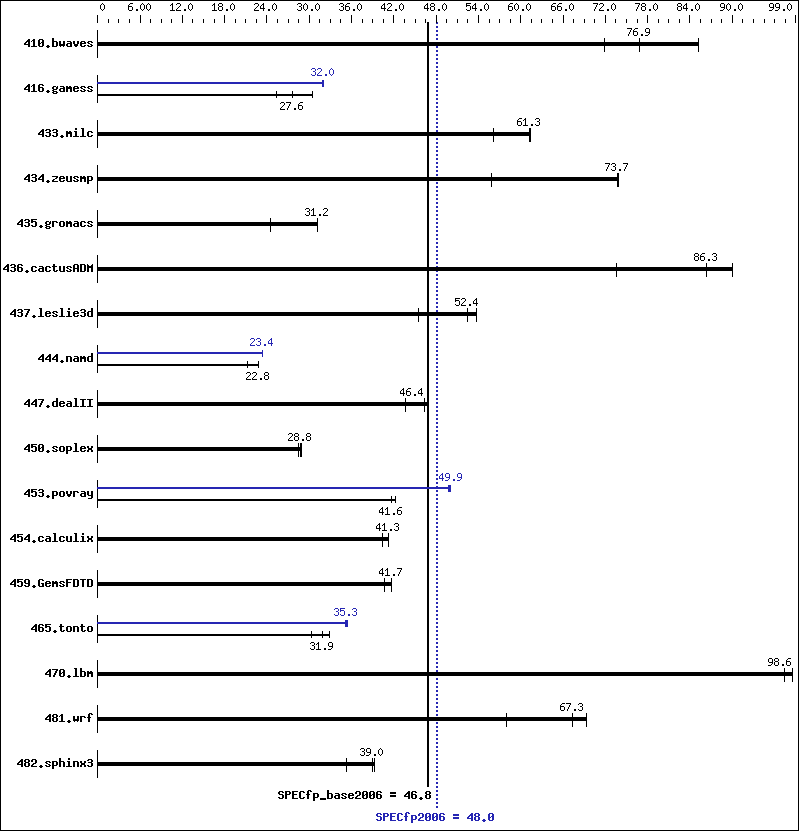

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 189 | 71.9 | 177 | 76.9 | 160 | 85.2 | 189 | 71.9 | 177 | 76.9 | 160 | 85.2 |
| 416.gamess | 771 | 25.4 | 710 | 27.6 | 645 | 30.4 | 614 | 31.9 | 612 | 32.0 | 612 | 32.0 |
| 433.milc | 164 | 56.1 | 150 | 61.3 | 150 | 61.4 | 164 | 56.1 | 150 | 61.3 | 150 | 61.4 |
| 434.zeusmp | 163 | 55.8 | 124 | 73.7 | 123 | 73.8 | 163 | 55.8 | 124 | 73.7 | 123 | 73.8 |
| 435.gromacs | 292 | 24.5 | 229 | 31.2 | 229 | 31.2 | 292 | 24.5 | 229 | 31.2 | 229 | 31.2 |
| 436.cactusADM | 162 | 73.6 | 139 | 86.3 | 133 | 90.0 | 162 | 73.6 | 139 | 86.3 | 133 | 90.0 |
| 437.leslie3d | 207 | 45.5 | 179 | 52.4 | 175 | 53.7 | 207 | 45.5 | 179 | 52.4 | 175 | 53.7 |
| 444.namd | 378 | 21.2 | 352 | 22.8 | 352 | 22.8 | 343 | 23.4 | 343 | 23.4 | 343 | 23.4 |
| 447.dealII | 262 | 43.7 | 247 | 46.4 | 245 | 46.7 | 262 | 43.7 | 247 | 46.4 | 245 | 46.7 |
| 450.soplex | 290 | 28.8 | 292 | 28.5 | 289 | 28.9 | 290 | 28.8 | 292 | 28.5 | 289 | 28.9 |
| 453.povray | 128 | 41.6 | 126 | 42.2 | 128 | 41.6 | 107 | 49.9 | 106 | 50.1 | 107 | 49.8 |
| 454.calculix | 200 | 41.3 | 204 | 40.4 | 200 | 41.3 | 200 | 41.3 | 204 | 40.4 | 200 | 41.3 |
| 459.GemsFDTD | 261 | 40.6 | 255 | 41.7 | 255 | 41.7 | 261 | 40.6 | 255 | 41.7 | 255 | 41.7 |
| 465.tonto | 325 | 30.3 | 299 | 32.9 | 309 | 31.9 | 279 | 35.3 | 279 | 35.2 | 278 | 35.4 |
| 470.lbm | 141 | 97.4 | 139 | 98.6 | 139 | 98.6 | 141 | 97.4 | 139 | 98.6 | 139 | 98.6 |
| 481.wrf | 193 | 58.0 | 161 | 69.3 | 166 | 67.3 | 193 | 58.0 | 161 | 69.3 | 166 | 67.3 |
| 482.sphinx3 | 552 | 35.3 | 500 | 39.0 | 497 | 39.2 | 552 | 35.3 | 500 | 39.0 | 497 | 39.2 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Platform Notes
Sysinfo program C:\Users\peca\Desktop\SPEC14.0\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on ea_i5 Fri Sep 12 14:44:21 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: Microsoft Corporation System Model : Surface Pro 3 Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 69 Stepping 1 GenuineIntel ~2501 Mhz BIOS Version : American Megatrends Inc. 3.10.0250, 8/28/2014 Total Physical Memory: 4,001 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 2501 Name : Intel(R) Core(TM) i5-4300U CPU @ 1.90GHz NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Test ran with power supply connected Power Supply: 12V, 2.58A
General Notes
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
C++ benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Benchmarks using both Fortran and C:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
