SPEC® CFP2006 Result

Intel Corporation

Intel DQ87PG motherboard (Intel Pentium G3420)

SPECfp®_rate2006 = 70.2

SPECfp_rate_base2006 = 69.4

CPU2006 license:	13	Test date:	Sep-2013
Test sponsor:	Intel Corporation	Hardware Availability:	Sep-2013
Tested by:	Intel Corporation	Software Availability:	Sep-2012

Hardware
CPU Name:	Intel Pentium G3420
CPU Characteristics:
CPU MHz:	3200
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	3 MB I+D on chip per chip
Other Cache:	None
Memory:	4 GB (2 x 2 GB 1Rx8 PC3-12800U-11)
Disk Subsystem:	250 GB Seagate SATA HDD, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601
Compiler:	C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Fortran: Version 13.1.1.171 of Intel Fortran Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 10.0 from http://www.microquill.com/

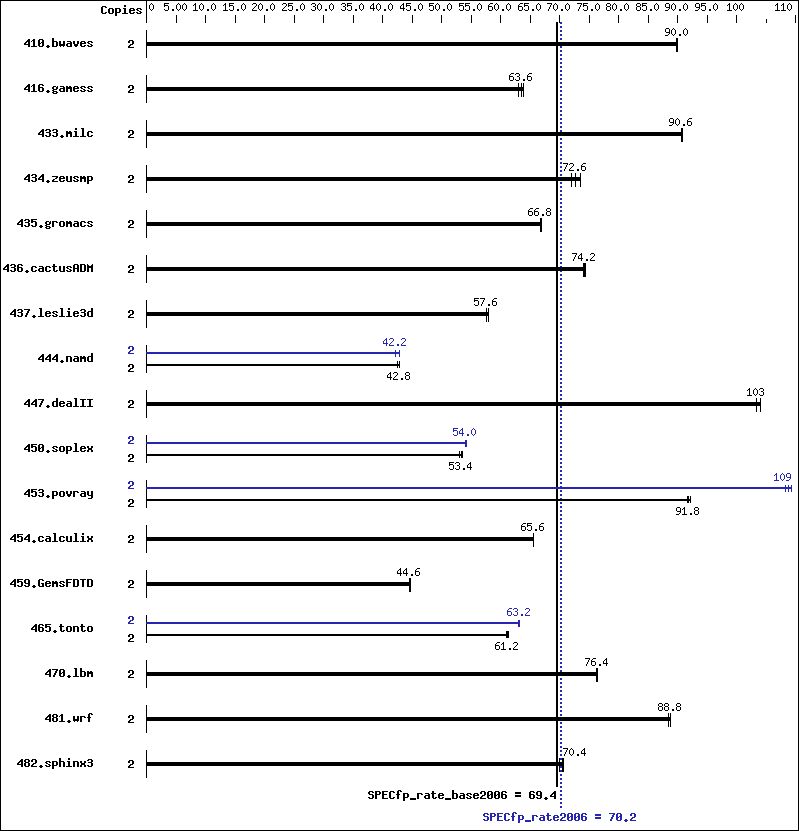

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	302	90.0	303	89.8	302	90.0	2	302	90.0	303	89.8	302	90.0
416.gamess	2	615	63.8	621	63.0	617	63.6	2	615	63.8	621	63.0	617	63.6
433.milc	2	202	90.8	203	90.6	203	90.6	2	202	90.8	203	90.6	203	90.6
434.zeusmp	2	247	73.6	253	72.0	250	72.6	2	247	73.6	253	72.0	250	72.6
435.gromacs	2	213	67.0	214	66.8	214	66.8	2	213	67.0	214	66.8	214	66.8
436.cactusADM	2	322	74.2	321	74.4	323	74.0	2	322	74.2	321	74.4	323	74.0
437.leslie3d	2	326	57.6	324	58.0	326	57.6	2	326	57.6	324	58.0	326	57.6
444.namd	2	375	42.8	376	42.6	375	42.8	2	375	42.8	379	42.2	379	42.2
447.dealII	2	220	104	221	103	221	103	2	220	104	221	103	221	103
450.soplex	2	312	53.4	311	53.6	315	53.0	2	309	54.0	309	54.0	308	54.2
453.povray	2	116	92.2	116	91.8	116	91.6	2	97.8	109	98.3	108	97.5	109
454.calculix	2	251	65.6	252	65.6	252	65.6	2	251	65.6	252	65.6	252	65.6
459.GemsFDTD	2	474	44.8	476	44.6	476	44.6	2	474	44.8	476	44.6	476	44.6
465.tonto	2	320	61.4	321	61.2	323	61.0	2	311	63.2	311	63.2	312	63.0
470.lbm	2	360	76.4	360	76.2	360	76.4	2	360	76.4	360	76.2	360	76.4
481.wrf	2	251	88.8	253	88.4	251	88.8	2	251	88.8	253	88.4	251	88.8
482.sphinx3	2	552	70.6	557	70.0	554	70.4	2	552	70.6	557	70.0	554	70.4

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 13.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC13.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt7C05070FB2EF Mon Sep 23 20:08:57 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Enterprise
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: INTEL_
 System Model  : DQ87PG__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3200 Mhz
 BIOS Version  : Intel(R) Corp. PGQ8710H.86A.0036.2013.0702.1908, 7/2/2013
 Total Physical Memory: 3,749 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 3072
 MaxClockSpeed : 3200
 Name          : Intel(R) Pentium(R) CPU G3420 @ 3.20GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)
BIOS: SATA mode set to RAID
Windows Disk Driver: Intel Rapid Storage Technology 12.5.0.1066
Windows Chipset Driver: Intel Chipset Driver 9.4.0.1027

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 Micron MT8JTF25664AZ-1G6 Series Memory DIMMs

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	/Qlowercase
436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	/TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
453.povray:	-DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Peak Portability Flags

410.bwaves:	/Qlowercase
436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	/TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
453.povray:	-DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000 shlW32M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 /F1000000000 shlW32M.lib -link /FORCE:MULTIPLE
453.povray:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F1000000000 shlW32M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.xml.
