| CPU2006 license: | 9006 | Test date: | Mar-2014 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Mar-2014 |
| Tested by: | NEC Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4860 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 48 cores, 4 chips, 12 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,3,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC3L-12800R-11, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 x 300 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) Kernel 2.6.32-358.23.2.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.1.106 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap Multi-Core V10.01 |

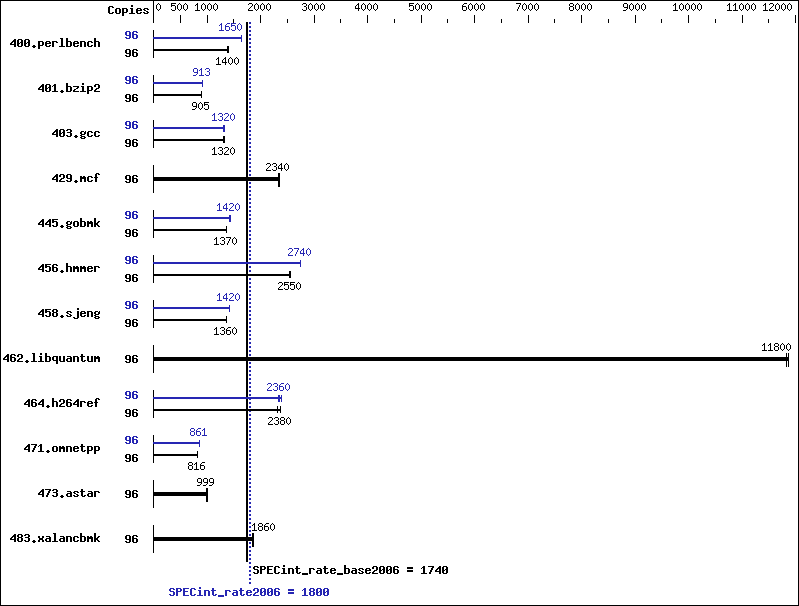

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 96 | 672 | 1400 | 671 | 1400 | 675 | 1390 | 96 | 569 | 1650 | 570 | 1650 | 572 | 1640 |
| 401.bzip2 | 96 | 1026 | 903 | 1023 | 905 | 1024 | 905 | 96 | 1016 | 912 | 1014 | 914 | 1014 | 913 |
| 403.gcc | 96 | 587 | 1320 | 583 | 1330 | 587 | 1320 | 96 | 586 | 1320 | 586 | 1320 | 587 | 1320 |
| 429.mcf | 96 | 374 | 2340 | 373 | 2350 | 374 | 2340 | 96 | 374 | 2340 | 373 | 2350 | 374 | 2340 |
| 445.gobmk | 96 | 734 | 1370 | 734 | 1370 | 734 | 1370 | 96 | 702 | 1440 | 710 | 1420 | 708 | 1420 |
| 456.hmmer | 96 | 352 | 2550 | 350 | 2560 | 351 | 2550 | 96 | 327 | 2740 | 326 | 2750 | 327 | 2740 |
| 458.sjeng | 96 | 854 | 1360 | 854 | 1360 | 857 | 1350 | 96 | 818 | 1420 | 817 | 1420 | 819 | 1420 |
| 462.libquantum | 96 | 168 | 11800 | 168 | 11900 | 168 | 11800 | 96 | 168 | 11800 | 168 | 11900 | 168 | 11800 |
| 464.h264ref | 96 | 921 | 2310 | 893 | 2380 | 892 | 2380 | 96 | 900 | 2360 | 907 | 2340 | 889 | 2390 |
| 471.omnetpp | 96 | 737 | 814 | 735 | 816 | 735 | 816 | 96 | 697 | 861 | 697 | 861 | 697 | 861 |
| 473.astar | 96 | 677 | 996 | 673 | 1000 | 674 | 999 | 96 | 677 | 996 | 673 | 1000 | 674 | 999 |
| 483.xalancbmk | 96 | 358 | 1850 | 356 | 1860 | 354 | 1870 | 96 | 358 | 1850 | 356 | 1860 | 354 | 1870 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Zone reclaim mode enabled with: echo 1 > /proc/sys/vm/zone_reclaim_mode
Platform Notes
BIOS Settings: Memory RAS Mode: Independent mode
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/SmartHeap_10mc/lib:/opt/SmartHeap_10mc/lib64:/opt/intel/composer_xe_2013_sp1.1.106/compiler/lib/ia32:/opt/intel/composer_xe_2013_sp1.1.106/compiler/lib/intel64" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap_10mc/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_10mc/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
