| CPU2006 license: | 9008 | Test date: | Dec-2013 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Jul-2012 |
| Tested by: | ACTION S.A. | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-4650 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2700 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (32 x 16 GB 2Rx4 PC3-14900R-13, ECC, running at 1600 MHz and CL11) |
| Disk Subsystem: | 1 x 240 GB SATA II SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.11.1.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

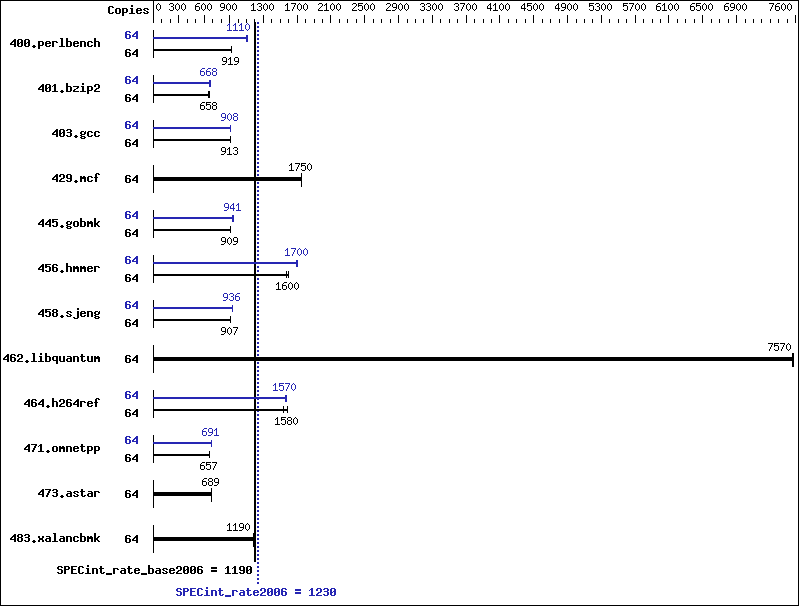

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 64 | 680 | 920 | 681 | 918 | 680 | 919 | 64 | 565 | 1110 | 565 | 1110 | 565 | 1110 |
| 401.bzip2 | 64 | 939 | 658 | 942 | 656 | 938 | 659 | 64 | 923 | 669 | 924 | 668 | 925 | 668 |
| 403.gcc | 64 | 566 | 911 | 563 | 915 | 564 | 913 | 64 | 564 | 913 | 568 | 908 | 567 | 908 |
| 429.mcf | 64 | 334 | 1750 | 333 | 1750 | 334 | 1750 | 64 | 334 | 1750 | 333 | 1750 | 334 | 1750 |
| 445.gobmk | 64 | 738 | 910 | 739 | 909 | 738 | 909 | 64 | 720 | 932 | 712 | 943 | 713 | 941 |
| 456.hmmer | 64 | 381 | 1570 | 374 | 1600 | 374 | 1600 | 64 | 351 | 1700 | 349 | 1710 | 352 | 1700 |
| 458.sjeng | 64 | 853 | 908 | 853 | 907 | 853 | 907 | 64 | 827 | 936 | 827 | 937 | 830 | 933 |
| 462.libquantum | 64 | 175 | 7570 | 175 | 7570 | 175 | 7560 | 64 | 175 | 7570 | 175 | 7570 | 175 | 7560 |
| 464.h264ref | 64 | 896 | 1580 | 924 | 1530 | 891 | 1590 | 64 | 904 | 1570 | 907 | 1560 | 902 | 1570 |
| 471.omnetpp | 64 | 608 | 657 | 609 | 657 | 608 | 658 | 64 | 579 | 691 | 579 | 691 | 580 | 690 |
| 473.astar | 64 | 654 | 687 | 652 | 689 | 652 | 690 | 64 | 654 | 687 | 652 | 689 | 652 | 690 |
| 483.xalancbmk | 64 | 372 | 1190 | 372 | 1190 | 372 | 1190 | 64 | 372 | 1190 | 372 | 1190 | 372 | 1190 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /cpu2006.1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on localhost.localdomain Wed Dec 4 14:58:10 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-4650 0 @ 2.70GHz 4 "physical id"s (chips) 64 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 physical 2: cores 0 1 2 3 4 5 6 7 physical 3: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 529243052 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-358.11.1.el6.x86_64 #1 SMP Tue Nov 19 17:43:04 CET 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Dec 3 23:39 SPEC is set to: /cpu2006.1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 193G 65G 118G 36% / Additional information from dmidecode: BIOS American Megatrends Inc. S4E_3A10 09/20/2012 Memory: 1x ChannelA_Dimm2_Manufacturer ChannelA_Dimm2_PartNum 1x ChannelB_Dimm2_Manufacturer ChannelB_Dimm2_PartNum 1x ChannelC_Dimm2_Manufacturer ChannelC_Dimm2_PartNum 1x ChannelD_Dimm2_Manufacturer ChannelD_Dimm2_PartNum 1x ChannelE_Dimm2_Manufacturer ChannelE_Dimm2_PartNum 1x ChannelF_Dimm2_Manufacturer ChannelF_Dimm2_PartNum 1x ChannelG_Dimm2_Manufacturer ChannelG_Dimm2_PartNum 1x ChannelH_Dimm2_Manufacturer ChannelH_Dimm2_PartNum 1x ChannelJ_Dimm2_Manufacturer ChannelJ_Dimm2_PartNum 1x ChannelK_Dimm2_Manufacturer ChannelK_Dimm2_PartNum 1x ChannelL_Dimm2_Manufacturer ChannelL_Dimm2_PartNum 1x ChannelM_Dimm2_Manufacturer ChannelM_Dimm2_PartNum 1x ChannelN_Dimm2_Manufacturer ChannelN_Dimm2_PartNum 1x ChannelP_Dimm2_Manufacturer ChannelP_Dimm2_PartNum 1x ChannelR_Dimm2_Manufacturer ChannelR_Dimm2_PartNum 1x ChannelT_Dimm2_Manufacturer ChannelT_Dimm2_PartNum 16x Hynix Semiconductor HMT42GR7AFR4C-RD 16 GB 1600 MHz 1 rank 16x Samsung M393B2G70BH0-CMA 16 GB 1600 MHz 1 rank (End of data from sysinfo program) dmidecode does not properly display memory modules, 32 modules of 16 GB 2 rank were used to run the test (512 GB total)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006.1.2/libs/32:/cpu2006.1.2/libs/64:/cpu2006.1.2/sh" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> Binaries compiled on a system with 2x Xeon E5-2650 v2 chips + 256 GB memory using RedHat EL 6.4
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/cpu2006.1.2/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/cpu2006.1.2/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
