| CPU2006 license: | 19 | Test date: | Sep-2013 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Sep-2013 |
| Tested by: | Fujitsu | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i3-4330 |
| CPU Characteristics: | |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (4 x 8 GB 2Rx8 PC3L-12800E-11, ECC) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.11.1.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

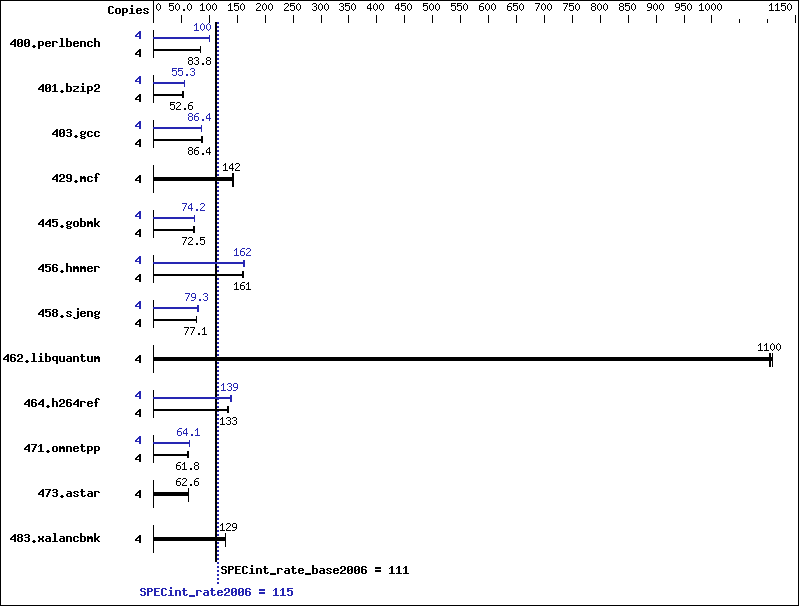

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 467 | 83.8 | 466 | 83.8 | 467 | 83.7 | 4 | 389 | 100 | 389 | 100 | 390 | 100 |
| 401.bzip2 | 4 | 727 | 53.1 | 734 | 52.6 | 736 | 52.4 | 4 | 698 | 55.3 | 695 | 55.5 | 701 | 55.1 |
| 403.gcc | 4 | 378 | 85.2 | 373 | 86.4 | 366 | 88.0 | 4 | 372 | 86.5 | 374 | 86.1 | 373 | 86.4 |
| 429.mcf | 4 | 258 | 141 | 257 | 142 | 256 | 142 | 4 | 258 | 141 | 257 | 142 | 256 | 142 |
| 445.gobmk | 4 | 578 | 72.5 | 578 | 72.6 | 579 | 72.4 | 4 | 566 | 74.1 | 566 | 74.2 | 566 | 74.2 |
| 456.hmmer | 4 | 232 | 161 | 234 | 159 | 231 | 161 | 4 | 230 | 162 | 231 | 162 | 230 | 162 |
| 458.sjeng | 4 | 628 | 77.1 | 625 | 77.4 | 629 | 77.0 | 4 | 610 | 79.3 | 610 | 79.3 | 601 | 80.5 |
| 462.libquantum | 4 | 74.8 | 1110 | 75.2 | 1100 | 75.0 | 1100 | 4 | 74.8 | 1110 | 75.2 | 1100 | 75.0 | 1100 |
| 464.h264ref | 4 | 670 | 132 | 664 | 133 | 662 | 134 | 4 | 637 | 139 | 638 | 139 | 641 | 138 |
| 471.omnetpp | 4 | 404 | 61.8 | 411 | 60.8 | 405 | 61.8 | 4 | 392 | 63.8 | 387 | 64.6 | 390 | 64.1 |
| 473.astar | 4 | 449 | 62.6 | 449 | 62.5 | 448 | 62.6 | 4 | 449 | 62.6 | 449 | 62.5 | 448 | 62.6 |
| 483.xalancbmk | 4 | 215 | 128 | 214 | 129 | 214 | 129 | 4 | 215 | 128 | 214 | 129 | 214 | 129 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64:/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
