SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge R715 (AMD Opteron 6366 HE, 1.80 GHz)

CPU2006 license: 55 Test date: Dec-2012
Test sponsor: Dell Inc. Hardware Availability: Dec-2012
Tested by: Dell Inc. Software Availability: Aug-2012

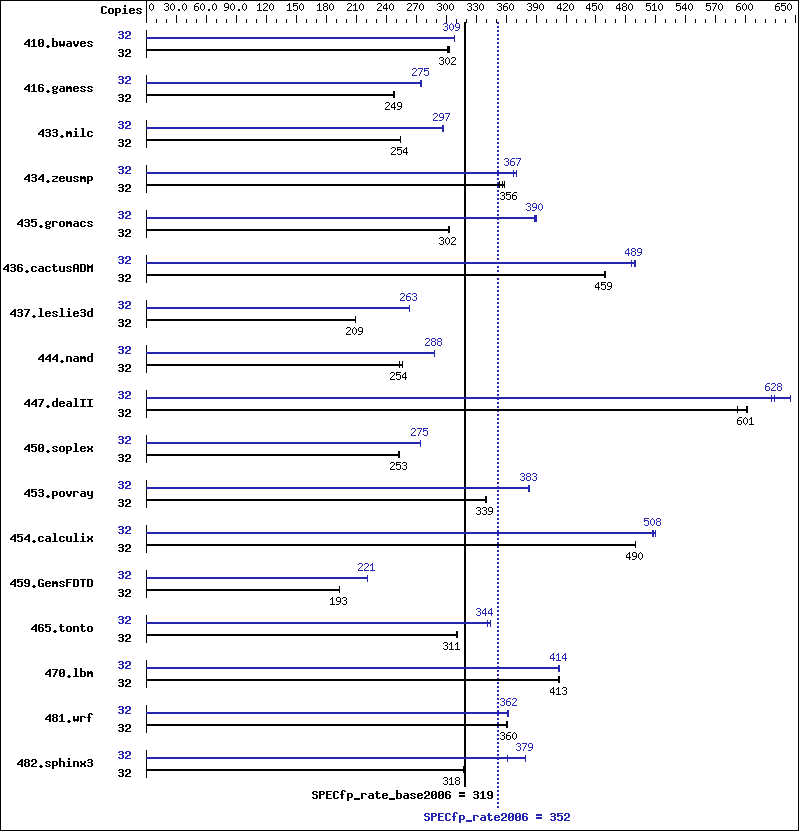

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6366 HE
CPU Characteristics: AMD Turbo CORE technology up to 3.10 GHz
CPU MHz: 1800
FPU: Integrated
CPU(s) enabled: 32 cores, 2 chips, 16 cores/chip
CPU(s) orderable: 2 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 6 x 73 GB 7200 RPM SATA
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.3,
Kernel 2.6.32-279.el6.x86_64
Compiler: C/C++/Fortran: Version 4.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext4
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 32 1441 302 1438 302 1432 304 32 1409 309 1410 308 1410 309
416.gamess 32 2537 247 2521 249 2519 249 32 2281 275 2279 275 2276 275
433.milc 32 1154 254 1155 254 1156 254 32 991 297 990 297 991 296
434.zeusmp 32 818 356 812 359 823 354 32 787 370 793 367 793 367
435.gromacs 32 752 304 756 302 755 302 32 588 388 586 390 586 390
436.cactusADM 32 833 459 835 458 834 459 32 788 485 782 489 782 489
437.leslie3d 32 1440 209 1438 209 1438 209 32 1143 263 1144 263 1142 263
444.namd 32 1001 256 1012 254 1014 253 32 890 288 889 289 891 288
447.dealII 32 618 592 609 601 610 601 32 568 644 583 628 585 626
450.soplex 32 1056 253 1055 253 1055 253 32 972 275 971 275 971 275
453.povray 32 502 339 500 340 502 339 32 444 384 445 383 444 383
454.calculix 32 539 490 539 490 539 489 32 520 508 518 509 521 507
459.GemsFDTD 32 1758 193 1756 193 1754 194 32 1532 222 1534 221 1534 221
465.tonto 32 1013 311 1012 311 1013 311 32 916 344 915 344 923 341
470.lbm 32 1064 413 1064 413 1066 413 32 1063 414 1066 413 1063 414
481.wrf 32 992 360 990 361 993 360 32 988 362 987 362 989 361
482.sphinx3 32 1964 318 1961 318 1960 318 32 1642 380 1644 379 1726 361

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=28672 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/root/cpu2006-1.2/amd1206-rate-libs-revA/32:/root/cpu2006-1.2/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1

C++ benchmarks:

 -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET   -march=bdver1

Fortran benchmarks:

 -Ofast   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso   -march=bdver1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso   -march=bdver1
470.lbm:  -Ofast   -CG:cmp_peep=on   -OPT:keep_ext=on   -HP:bdt=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -march=bdver1   -mso
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -IPA:plimit=1000   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:p2align=0   -CG:load_exe=1   -CG:dsched=on   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso   -march=bdver2

C++ benchmarks:

444.namd:  -Ofast   -IPA:plimit=3000   -LNO:ignore_feedback=off   -CG:local_sched_alg=0   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m   -LNO:if_select_conv=1   -OPT:alias=disjoint   -LNO:psimd_iso_unroll=ON   -march=bdver1
447.dealII:  -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=1   -LNO:simd=2   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off   -march=bdver1
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:ignore_feedback=off   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -mno-fma4   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -CG:p2align=0   -CG:p2align_split=on   -CG:dsched=on   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0   -march=bdver2

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on   -march=bdver1
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=2   -OPT:ro=3   -OPT:recip=on   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
434.zeusmp:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -IPA:plimit=1500   -HP:bdt=2m:heap=2m   -march=bdver1
437.leslie3d:  -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso   -march=bdver1
459.GemsFDTD:  -Ofast   -IPA:plimit=1500   -OPT:unroll_size=1024   -OPT:unroll_times_max=16   -LNO:fission=2   -CG:local_sched_alg=2   -HP   -march=bdver1
465.tonto:  -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -CG:local_sched_alg=3   -IPA:plimit=525   -HP:bdt=2m:heap=2m   -march=bdver1

Benchmarks using both Fortran and C:

435.gromacs:  -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m   -CG:local_sched_alg=2   -CG:load_exe=3   -GRA:unspill=on   -march=bdver1   -LNO:simd=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -LNO:pf2=0   -LNO:prefetch_ahead=4   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -CG:dsched=on   -WOPT:sib=on   -march=bdver1
454.calculix:  -Ofast   -OPT:unroll_size=256   -OPT:alias=disjoint   -GRA:optimize_boundary=on   -CG:dsched=on   -HP:bdt=2m:heap=2m   -march=bdver1
481.wrf:  -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -HP   -WOPT:sib=on   -march=bdver1

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 14:55:17 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 29 January 2013.
