| CPU2006 license: | 19 | Test date: | Mar-2012 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Mar-2012 |
| Tested by: | Fujitsu | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2637 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (16 x 4 GB 2Rx8 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x SATA III, 500 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1, 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi - user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap 10 (Multi-Core) |

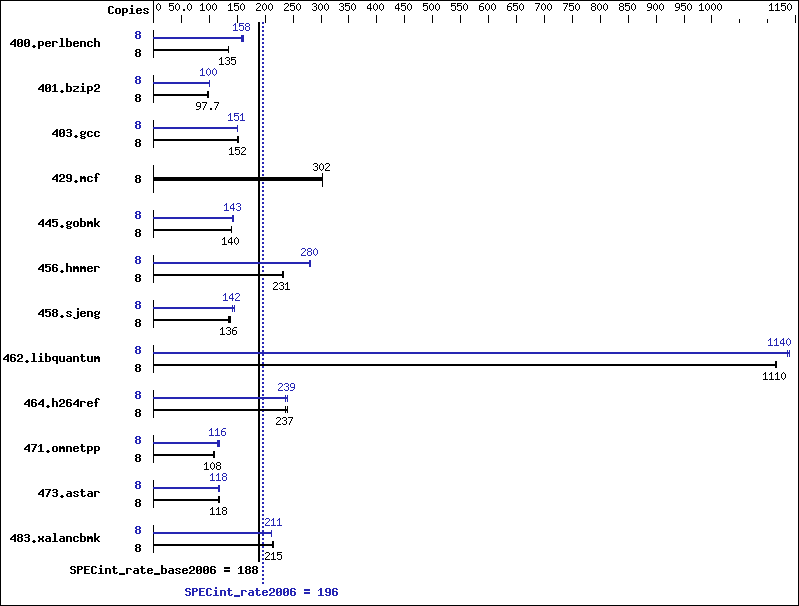

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 579 | 135 | 581 | 135 | 579 | 135 | 8 | 484 | 161 | 493 | 158 | 495 | 158 |
| 401.bzip2 | 8 | 790 | 97.7 | 791 | 97.7 | 792 | 97.5 | 8 | 767 | 101 | 770 | 100 | 769 | 100 |
| 403.gcc | 8 | 425 | 152 | 426 | 151 | 421 | 153 | 8 | 429 | 150 | 426 | 151 | 426 | 151 |
| 429.mcf | 8 | 242 | 302 | 242 | 302 | 242 | 302 | 8 | 242 | 302 | 242 | 302 | 242 | 302 |
| 445.gobmk | 8 | 599 | 140 | 599 | 140 | 600 | 140 | 8 | 585 | 144 | 589 | 143 | 591 | 142 |
| 456.hmmer | 8 | 323 | 231 | 322 | 232 | 322 | 231 | 8 | 266 | 280 | 267 | 280 | 266 | 280 |
| 458.sjeng | 8 | 711 | 136 | 702 | 138 | 718 | 135 | 8 | 683 | 142 | 669 | 145 | 684 | 141 |
| 462.libquantum | 8 | 149 | 1110 | 149 | 1110 | 149 | 1110 | 8 | 146 | 1140 | 146 | 1140 | 146 | 1140 |
| 464.h264ref | 8 | 751 | 236 | 739 | 240 | 748 | 237 | 8 | 746 | 237 | 735 | 241 | 741 | 239 |
| 471.omnetpp | 8 | 465 | 108 | 464 | 108 | 459 | 109 | 8 | 433 | 115 | 425 | 118 | 433 | 116 |
| 473.astar | 8 | 478 | 118 | 481 | 117 | 477 | 118 | 8 | 478 | 118 | 483 | 116 | 477 | 118 |
| 483.xalancbmk | 8 | 256 | 216 | 259 | 213 | 257 | 215 | 8 | 261 | 211 | 262 | 211 | 260 | 212 |
Submit Notes
The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file. For full details on using numactl, please refer to your Linux documentation, 'man numactl'
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS settings: Frequency Floor Override = Enabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/work/cpu2006/libs/32:/work/cpu2006/libs/64" Binaries compiled on a system with 2x Xeon E5-2690 CPU + 64 GB memory using Red Hat Enterprise Linux Server release 6.1 (Santiago) Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 403.gcc: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 462.libquantum: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 473.astar: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 483.xalancbmk: | Same as 473.astar |
