| CPU2006 license: | 001176 | Test date: | Jan-2012 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Apr-2011 |
| Tested by: | Supermicro | Software Availability: | Aug-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4870 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2, 4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 2Rx8 PC3-10600R-9, ECC, operate @ 1066MHz) |
| Disk Subsystem: | 1 x 1 TB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1 (Santiago) 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

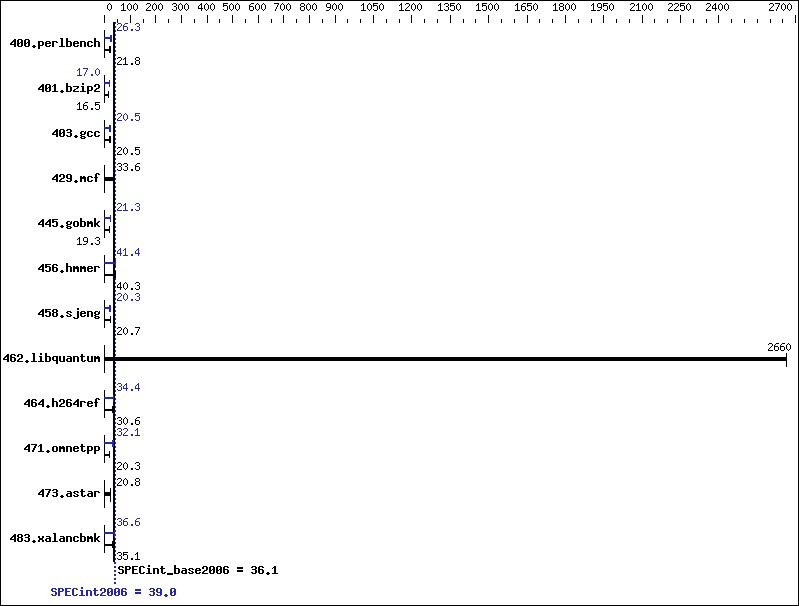

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 445 | 22.0 | 448 | 21.8 | 482 | 20.3 | 372 | 26.3 | 372 | 26.3 | 409 | 23.9 |
| 401.bzip2 | 585 | 16.5 | 585 | 16.5 | 586 | 16.5 | 570 | 16.9 | 569 | 17.0 | 569 | 17.0 |
| 403.gcc | 392 | 20.5 | 392 | 20.6 | 392 | 20.5 | 392 | 20.5 | 393 | 20.5 | 398 | 20.2 |
| 429.mcf | 271 | 33.7 | 274 | 33.3 | 271 | 33.6 | 271 | 33.7 | 274 | 33.3 | 271 | 33.6 |
| 445.gobmk | 544 | 19.3 | 547 | 19.2 | 543 | 19.3 | 491 | 21.3 | 492 | 21.3 | 491 | 21.3 |
| 456.hmmer | 231 | 40.3 | 231 | 40.3 | 231 | 40.3 | 226 | 41.4 | 226 | 41.3 | 226 | 41.4 |
| 458.sjeng | 584 | 20.7 | 584 | 20.7 | 583 | 20.7 | 595 | 20.3 | 603 | 20.1 | 573 | 21.1 |
| 462.libquantum | 7.78 | 2660 | 7.78 | 2660 | 7.78 | 2660 | 7.78 | 2660 | 7.78 | 2660 | 7.78 | 2660 |
| 464.h264ref | 723 | 30.6 | 721 | 30.7 | 725 | 30.5 | 644 | 34.4 | 643 | 34.4 | 644 | 34.4 |
| 471.omnetpp | 308 | 20.3 | 314 | 19.9 | 307 | 20.4 | 200 | 31.3 | 194 | 32.3 | 194 | 32.1 |
| 473.astar | 338 | 20.8 | 336 | 20.9 | 339 | 20.7 | 338 | 20.8 | 336 | 20.9 | 339 | 20.7 |
| 483.xalancbmk | 196 | 35.2 | 196 | 35.1 | 218 | 31.7 | 189 | 36.6 | 189 | 36.5 | 188 | 36.8 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /home/cpu2006v1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost.localdomain Mon Jan 2 02:34:51 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7- 4870 @ 2.40GHz 4 "physical id"s (chips) 80 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 20 physical 0: cores 0 1 2 8 9 16 17 18 24 25 physical 1: cores 0 1 2 8 9 16 17 18 24 25 physical 2: cores 0 1 2 8 9 16 17 18 24 25 physical 3: cores 0 1 2 8 9 16 17 18 24 25 cache size : 30720 KB From /proc/meminfo MemTotal: 264534604 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.1 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-131.0.15.el6.x86_64 #1 SMP Tue May 10 15:42:40 EDT 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Dec 30 16:48 SPEC is set to: /home/cpu2006v1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/VolGroup-lv_home ext4 799G 354G 405G 47% /home Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/cpu2006v1.2/libs/32:/home/cpu2006v1.2/libs/64" OMP_NUM_THREADS = "40" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL6.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> Submitted_by: Glevis Yang <glevisy@supermicro.com> Submitted: Tue Jan 17 19:41:44 EST 2012 Submission: cpu2006-20120117-19354.sub
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
