| CPU2006 license: | 3 | Test date: | Oct-2011 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Mar-2010 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Sep-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5677 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3467 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel Compiler XE Build 20110803 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

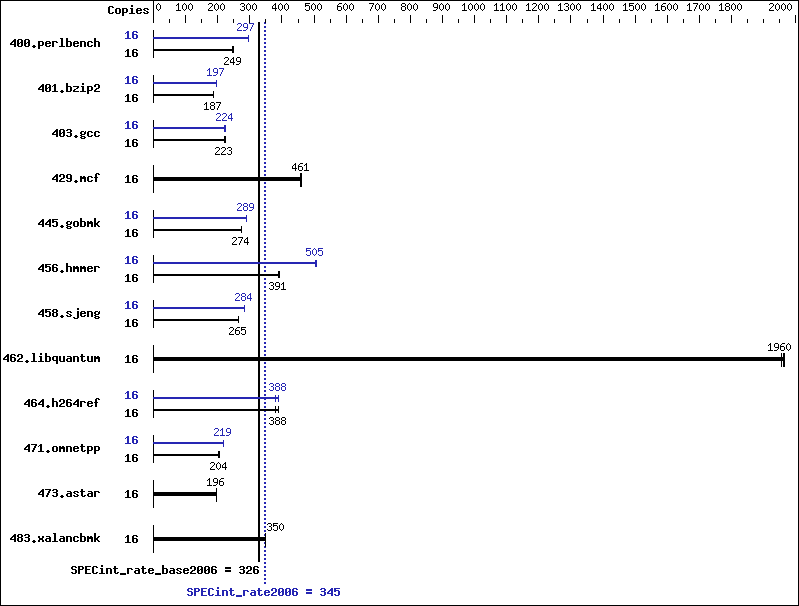

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 625 | 250 | 627 | 249 | 632 | 247 | 16 | 527 | 297 | 527 | 297 | 526 | 297 |
| 401.bzip2 | 16 | 822 | 188 | 824 | 187 | 826 | 187 | 16 | 785 | 197 | 782 | 197 | 784 | 197 |
| 403.gcc | 16 | 582 | 221 | 579 | 223 | 573 | 225 | 16 | 576 | 224 | 583 | 221 | 575 | 224 |
| 429.mcf | 16 | 316 | 462 | 318 | 458 | 317 | 461 | 16 | 316 | 462 | 318 | 458 | 317 | 461 |
| 445.gobmk | 16 | 612 | 274 | 611 | 275 | 612 | 274 | 16 | 581 | 289 | 579 | 290 | 581 | 289 |
| 456.hmmer | 16 | 382 | 390 | 382 | 391 | 382 | 391 | 16 | 295 | 506 | 295 | 505 | 295 | 505 |
| 458.sjeng | 16 | 731 | 265 | 732 | 264 | 731 | 265 | 16 | 681 | 284 | 682 | 284 | 682 | 284 |
| 462.libquantum | 16 | 170 | 1960 | 169 | 1960 | 169 | 1960 | 16 | 170 | 1960 | 169 | 1960 | 169 | 1960 |
| 464.h264ref | 16 | 912 | 388 | 913 | 388 | 930 | 381 | 16 | 912 | 388 | 929 | 381 | 909 | 389 |
| 471.omnetpp | 16 | 490 | 204 | 489 | 204 | 491 | 204 | 16 | 457 | 219 | 457 | 219 | 456 | 219 |
| 473.astar | 16 | 573 | 196 | 573 | 196 | 571 | 197 | 16 | 573 | 196 | 573 | 196 | 571 | 197 |
| 483.xalancbmk | 16 | 315 | 350 | 315 | 350 | 317 | 349 | 16 | 315 | 350 | 315 | 350 | 317 | 349 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Platform Notes
BIOS configuration: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling Data Reuse set to Disabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006/smartheap:/cpu2006/ic12.1-libs/ia32/:/cpu2006/ic12.1-libs/intel64"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
