| CPU2006 license: | 13 | Test date: | Oct-2011 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jan-2011 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-2400 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.4 GHz |
| CPU MHz: | 3100 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (2 x 2 GB 2Rx8 PC3-10600U-9) |
| Disk Subsystem: | Seagate 250GB HDD, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 7 Ultimate SP1 (64-bit) |
| Compiler: | C/C++: Version 12.0.3.176 of Intel C++ Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 9.01 from http://www.microquill.com/ |

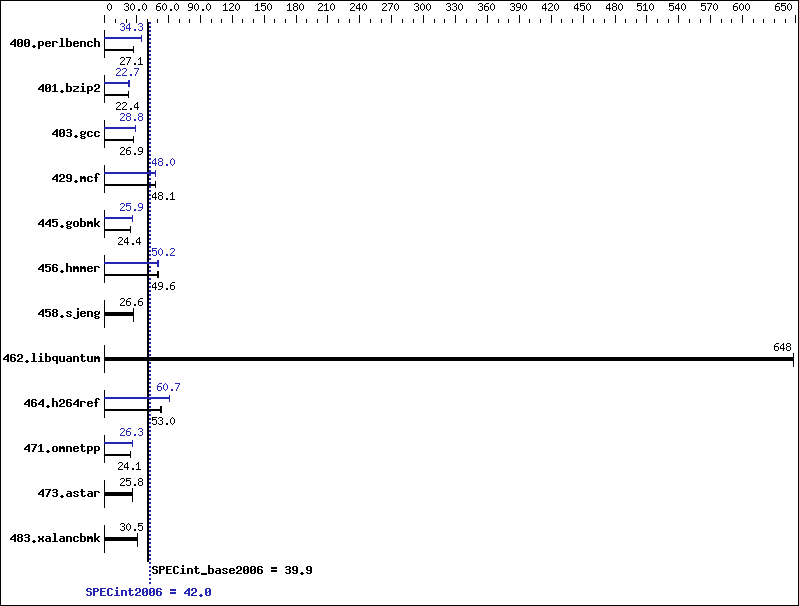

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 361 | 27.0 | 361 | 27.1 | 361 | 27.1 | 285 | 34.3 | 285 | 34.3 | 285 | 34.3 |
| 401.bzip2 | 436 | 22.2 | 430 | 22.5 | 431 | 22.4 | 425 | 22.7 | 425 | 22.7 | 414 | 23.3 |
| 403.gcc | 300 | 26.9 | 300 | 26.9 | 300 | 26.9 | 280 | 28.8 | 279 | 28.8 | 280 | 28.8 |
| 429.mcf | 190 | 48.1 | 190 | 48.1 | 190 | 48.1 | 190 | 47.9 | 190 | 48.0 | 190 | 48.0 |
| 445.gobmk | 429 | 24.4 | 429 | 24.4 | 429 | 24.4 | 404 | 25.9 | 405 | 25.9 | 404 | 25.9 |
| 456.hmmer | 189 | 49.4 | 186 | 50.1 | 188 | 49.6 | 186 | 50.2 | 188 | 49.7 | 186 | 50.2 |
| 458.sjeng | 455 | 26.6 | 455 | 26.6 | 455 | 26.6 | 455 | 26.6 | 455 | 26.6 | 455 | 26.6 |
| 462.libquantum | 32.0 | 648 | 32.0 | 648 | 32.0 | 648 | 32.0 | 648 | 32.0 | 648 | 32.0 | 648 |
| 464.h264ref | 418 | 52.9 | 417 | 53.0 | 417 | 53.0 | 364 | 60.7 | 364 | 60.7 | 364 | 60.7 |
| 471.omnetpp | 259 | 24.1 | 260 | 24.1 | 259 | 24.1 | 238 | 26.3 | 238 | 26.3 | 238 | 26.2 |
| 473.astar | 272 | 25.8 | 272 | 25.9 | 272 | 25.8 | 272 | 25.8 | 272 | 25.9 | 272 | 25.8 |
| 483.xalancbmk | 227 | 30.5 | 227 | 30.5 | 227 | 30.4 | 227 | 30.5 | 227 | 30.5 | 227 | 30.4 |
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 -DSPEC_CPU_NO_NEED_VA_COPY |
| 401.bzip2: | -DSPEC_CPU_P64 |
| 403.gcc: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 429.mcf: | -DSPEC_CPU_P64 |
| 445.gobmk: | -DSPEC_CPU_P64 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DSPEC_CPU_P64 -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 471.omnetpp: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias -Qauto-ilp32 /F512000000 |
| 403.gcc: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F512000000 |
| 429.mcf: | -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F512000000 |
| 445.gobmk: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F512000000 |
| 456.hmmer: | -QxAVX -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000 |
| 458.sjeng: | basepeak = yes |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
