SPEC® CFP2006 Result

Intel Corporation

Intel DX58SO2 motherboard (Intel Core i7-990X
Extreme Edition)

SPECfp®2006 = 47.9

SPECfp_base2006 = 46.7

CPU2006 license:	13	Test date:	Oct-2011
Test sponsor:	Intel Corporation	Hardware Availability:	Feb-2011
Tested by:	Intel Corporation	Software Availability:	Apr-2011

Hardware
CPU Name:	Intel Core i7-990X Extreme Edition
CPU Characteristics:	Intel Turbo Boost Technology up to 3.73 GHz
CPU MHz:	3466
FPU:	Integrated
CPU(s) enabled:	6 cores, 1 chip, 6 cores/chip, 2 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory:	12 GB (3 x 4 GB 2Rx8 PC3-8600U-7)
Disk Subsystem:	Intel 160 GB SSD
Other Hardware:	None

Software
Operating System:	Windows 7 Ultimate SP1 (64-bit)
Compiler:	Fortran: Version 12.0.3.176 of Intel Visual Fortran Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 9.01 from http://www.microquill.com/

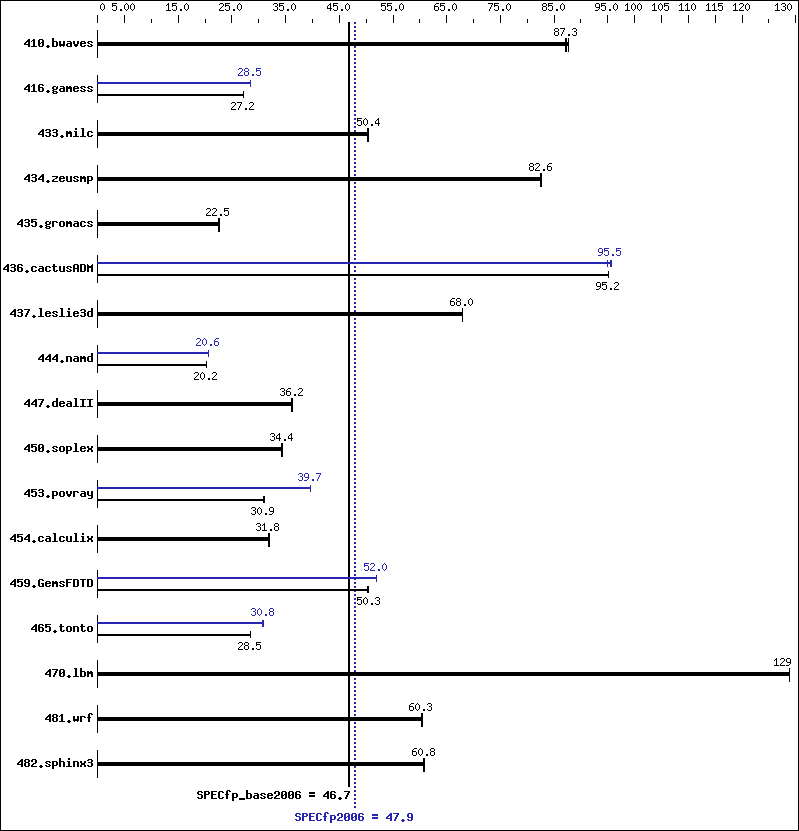

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	156	87.2	156	87.3	155	87.6	156	87.2	156	87.3	155	87.6
416.gamess	721	27.2	721	27.2	721	27.2	687	28.5	687	28.5	687	28.5
433.milc	182	50.5	183	50.2	182	50.4	182	50.5	183	50.2	182	50.4
434.zeusmp	110	82.6	110	82.6	110	82.5	110	82.6	110	82.6	110	82.5
435.gromacs	317	22.6	317	22.5	317	22.5	317	22.6	317	22.5	317	22.5
436.cactusADM	126	95.2	126	95.2	126	95.1	125	95.6	126	94.9	125	95.5
437.leslie3d	138	67.9	138	68.0	138	68.0	138	67.9	138	68.0	138	68.0
444.namd	398	20.2	398	20.2	398	20.2	388	20.6	389	20.6	389	20.6
447.dealII	316	36.2	317	36.1	316	36.2	316	36.2	317	36.1	316	36.2
450.soplex	242	34.5	242	34.4	244	34.2	242	34.5	242	34.4	244	34.2
453.povray	172	30.9	172	30.9	172	31.0	134	39.7	134	39.7	134	39.7
454.calculix	260	31.8	259	31.8	259	31.9	260	31.8	259	31.8	259	31.9
459.GemsFDTD	211	50.3	211	50.3	211	50.4	204	51.9	204	52.0	204	52.0
465.tonto	346	28.5	346	28.5	346	28.4	319	30.8	319	30.9	320	30.7
470.lbm	107	129	107	129	107	129	107	129	107	129	107	129
481.wrf	185	60.3	185	60.4	185	60.3	185	60.3	185	60.4	185	60.3
482.sphinx3	321	60.7	320	60.9	321	60.8	321	60.7	320	60.9	321	60.8

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 System was configured with an ATI HD 6990 discrete graphics card

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64 -names:lowercase
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 -names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	basepeak = yes
453.povray:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qparallel /F1000000000
465.tonto:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qunroll2 -Qauto-ilp32 /F1000000000
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.20111012.html,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.20111012.xml,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings-revC.xml.
