SPEC® CFP2006 Result

Intel Corporation

Intel DH67BLB3 motherboard (Intel Core i7-2700K)

SPECfp®_rate2006 = 115

SPECfp_rate_base2006 = 113

CPU2006 license:	13	Test date:	Nov-2011
Test sponsor:	Intel Corporation	Hardware Availability:	Nov-2011
Tested by:	Intel Corporation	Software Availability:	Apr-2011

Hardware
CPU Name:	Intel Core i7-2700K
CPU Characteristics:	Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz:	3500
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx8 PC3-10600U-11)
Disk Subsystem:	Intel 160 GB SSD
Other Hardware:	None

Software
Operating System:	Windows 7 Ultimate SP1 (64-bit)
Compiler:	C/C++: Version 12.0.3.176 of Intel C++ Studio XE for Windows; Fortran: Version 12.0.3.176 of Intel Visual Fortran Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 9.01 from http://www.microquill.com/

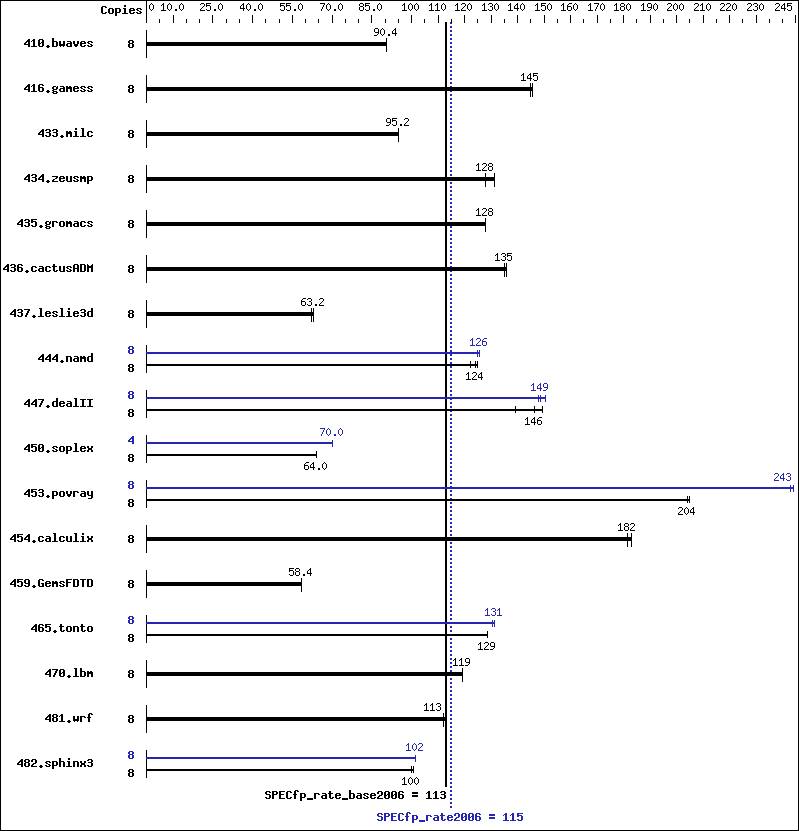

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	1202	90.4	1199	90.4	1199	90.4	8	1202	90.4	1199	90.4	1199	90.4
416.gamess	8	1083	145	1074	146	1080	145	8	1083	145	1074	146	1080	145
433.milc	8	773	95.2	774	95.2	774	95.2	8	773	95.2	774	95.2	774	95.2
434.zeusmp	8	567	128	556	131	568	128	8	567	128	556	131	568	128
435.gromacs	8	447	128	448	128	447	128	8	447	128	448	128	447	128
436.cactusADM	8	707	135	705	136	705	135	8	707	135	705	136	705	135
437.leslie3d	8	1197	63.2	1203	62.4	1196	63.2	8	1197	63.2	1203	62.4	1196	63.2
444.namd	8	526	122	518	124	514	125	8	515	125	510	126	510	126
447.dealII	8	656	139	613	150	624	146	8	620	148	609	150	614	149
450.soplex	8	1043	64.0	1043	64.0	1043	64.0	4	477	70.0	477	70.0	477	70.0
453.povray	8	209	204	208	205	209	204	8	175	244	175	243	175	243
454.calculix	8	363	182	360	183	363	182	8	363	182	360	183	363	182
459.GemsFDTD	8	1454	58.4	1453	58.4	1453	58.4	8	1454	58.4	1453	58.4	1453	58.4
465.tonto	8	611	129	611	129	610	129	8	601	131	600	131	602	130
470.lbm	8	921	119	921	119	921	119	8	921	119	921	119	921	119
481.wrf	8	794	113	793	113	796	112	8	794	113	793	113	796	112
482.sphinx3	8	1553	100	1553	101	1554	100	8	1535	102	1536	102	1536	102

Submit Notes

The config file option 'submit' was used.
 The start command with the /affinity switch was used to bind processes to cores

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 System was configured with an ATI HD 6990 discrete graphics card

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64 -names:lowercase
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 /names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	-QxAVX -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qscalar-rep- -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
450.soplex:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
453.povray:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.20111012.html,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.20111012.xml,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings-revC.xml.
