SPEC® CFP2006 Result

E4 Computer Engineering S.p.A.

E-Rack 8248, AMD Opteron 6174

SPECfp®2006 = 29.6

SPECfp_base2006 = 22.2

CPU2006 license:	3106	Test date:	Sep-2011
Test sponsor:	E4 Computer Engineering S.p.A.	Hardware Availability:	Jun-2010
Tested by:	E4 Computer Engineering S.p.A.	Software Availability:	Jul-2011

Hardware
CPU Name:	AMD Opteron 6174
CPU Characteristics:
CPU MHz:	2200
FPU:	Integrated
CPU(s) enabled:	48 cores, 4 chips, 12 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache:	None
Memory:	256 GB (32 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	2 x 1 TB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Scientific Linux release 6.1, Kernel 2.6.32-131.0.15.el6
Compiler:	C/C++/Fortran: Version 4.2.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext4
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

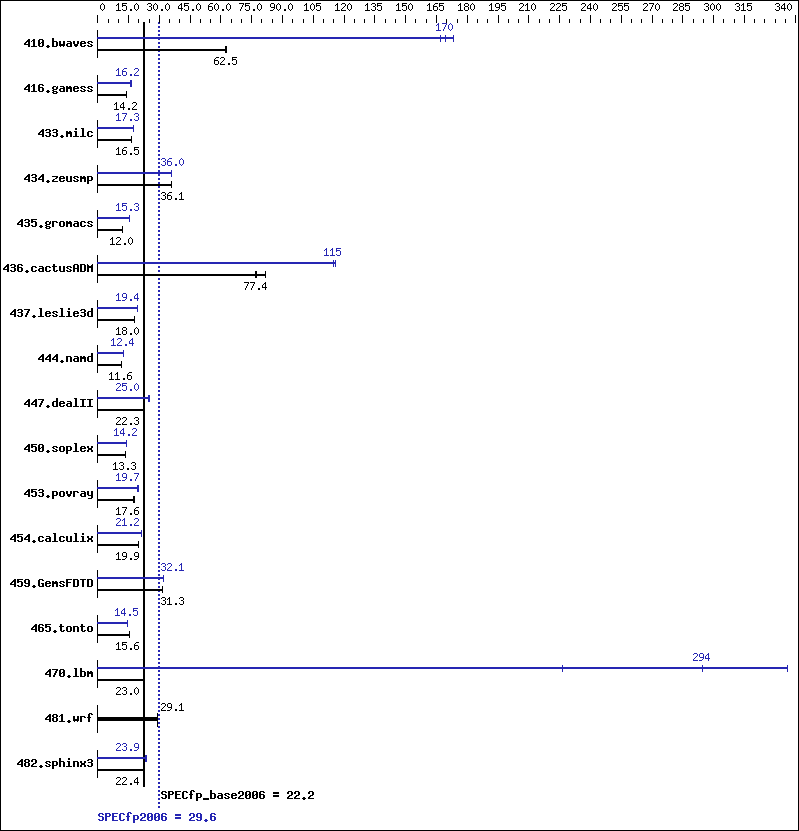

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	217	62.5	216	62.8	218	62.3	80.2	170	78.4	173	81.3	167
416.gamess	1384	14.1	1381	14.2	1380	14.2	1206	16.2	1209	16.2	1217	16.1
433.milc	558	16.5	556	16.5	561	16.4	531	17.3	532	17.3	531	17.3
434.zeusmp	253	36.0	252	36.1	252	36.1	252	36.1	253	36.0	253	36.0
435.gromacs	594	12.0	596	12.0	596	12.0	467	15.3	467	15.3	467	15.3
436.cactusADM	146	81.8	155	77.1	154	77.4	104	115	104	115	103	116
437.leslie3d	522	18.0	521	18.0	521	18.0	489	19.2	483	19.5	485	19.4
444.namd	690	11.6	692	11.6	689	11.6	646	12.4	646	12.4	646	12.4
447.dealII	514	22.3	514	22.2	514	22.3	458	25.0	458	25.0	458	25.0
450.soplex	626	13.3	625	13.3	625	13.3	586	14.2	588	14.2	588	14.2
453.povray	301	17.7	302	17.6	302	17.6	273	19.5	269	19.8	269	19.7
454.calculix	415	19.9	414	19.9	416	19.8	389	21.2	390	21.2	388	21.3
459.GemsFDTD	338	31.4	339	31.3	339	31.3	329	32.2	330	32.1	330	32.1
465.tonto	630	15.6	633	15.6	629	15.6	677	14.5	683	14.4	681	14.5
470.lbm	598	23.0	597	23.0	598	23.0	46.7	294	40.9	336	60.6	227
481.wrf	385	29.0	384	29.1	384	29.1	385	29.0	384	29.1	384	29.1
482.sphinx3	871	22.4	871	22.4	871	22.4	831	23.4	816	23.9	815	23.9

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=21600 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/opt/amd/lib/gcc-lib/x86_64-open64-linux/4.2.5.2/64:/opt/amd/lib/gcc-lib/x86_64-open64-linux/4.2.5.2/32"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -Ofast -apo -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -CG:compute_to=on -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	-march=barcelona -Ofast -mso -apo -CG:sse_cse_regs=0 -LNO:prefetch_ahead=4 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:compute_to=on -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -OPT:alias=restricted -m3dnow -IPA:inline=off
482.sphinx3:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m:heap=2m
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:	-march=barcelona -Ofast -apo -OPT:malloc_alg=2 -CG:use_prefetchnta=on -CG:cmp_peep=on -LNO:blocking=off -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -LNO:apo_use_feedback=on -WOPT:aggstr=0
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -Ofast -apo -LNO:blocking=off -LNO:interchange=off -LNO:fusion_peeling_limit=0 -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -CG:compute_to=on -GRA:prioritize_by_density=on -HP:bdt=2m:heap=2m
437.leslie3d:	-march=barcelona -Ofast -apo -OPT:unroll_size=256 -LNO:prefetch_ahead=4 -LNO:parallel_overhead=32768 -GRA:prioritize_by_density=on -m3dnow -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -Ofast -apo -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -Ofast -apo -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -Ofast -apo -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LANG:heap_allocation_threshold=1000 -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m
454.calculix:	-march=barcelona -Ofast -LNO:prefetch_ahead=30 -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m -apo
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.html,
http://www.spec.org/cpu2006/flags/E4ComputerEngineering-amd-platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.xml,
http://www.spec.org/cpu2006/flags/E4ComputerEngineering-amd-platform.xml.
