SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH61WW motherboard (Intel Pentium G630)

CPU2006 license: 13 Test date: Oct-2011
Test sponsor: Intel Corporation Hardware Availability: Sep-2011
Tested by: Intel Corporation Software Availability: Apr-2011

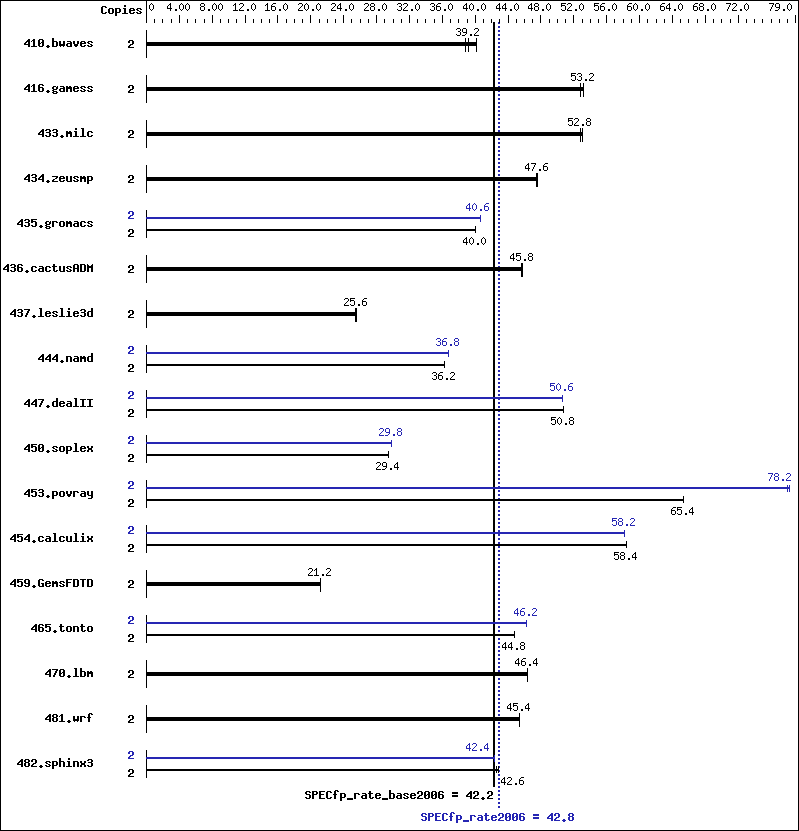

Benchmark results graph
Hardware
CPU Name: Intel Pentium G630
CPU Characteristics:
CPU MHz: 2700
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 3 MB I+D on chip per chip
Other Cache: None
Memory: 2 GB (2 x 1 GB 2Rx4 PC3-10600U-9, running at 1066
MHz)
Disk Subsystem: 1 TB Seagate SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Ultimate (64-bit)
Compiler: C++: Version 12.0.3.176 of Intel C++ Studio XE
for Windows;
Fortran: Version 12.0.3.176 of Intel Fortran
Studio XE
for Windows;
Libraries: Version 15.00.30729.01 of Microsoft
Visual Studio 2008 Professional SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 693 39.2 699 38.8 677 40.2 2 693 39.2 699 38.8 677 40.2
416.gamess 2 742 52.8 737 53.2 737 53.2 2 742 52.8 737 53.2 737 53.2
433.milc 2 347 53.0 347 52.8 347 52.8 2 347 53.0 347 52.8 347 52.8
434.zeusmp 2 382 47.6 384 47.4 383 47.6 2 382 47.6 384 47.4 383 47.6
435.gromacs 2 357 40.0 357 40.0 357 40.0 2 352 40.6 352 40.6 352 40.6
436.cactusADM 2 523 45.8 525 45.6 521 45.8 2 523 45.8 525 45.6 521 45.8
437.leslie3d 2 734 25.6 733 25.6 737 25.4 2 734 25.6 733 25.6 737 25.4
444.namd 2 443 36.2 443 36.2 443 36.2 2 436 36.8 437 36.8 436 36.8
447.dealII 2 450 50.8 450 50.8 451 50.8 2 452 50.6 452 50.6 451 50.6
450.soplex 2 569 29.4 569 29.4 569 29.4 2 560 29.8 560 29.8 560 29.8
453.povray 2 163 65.4 163 65.4 163 65.4 2 136 78.2 137 78.0 136 78.2
454.calculix 2 283 58.4 283 58.4 283 58.4 2 283 58.2 283 58.2 283 58.2
459.GemsFDTD 2 999 21.2 997 21.2 997 21.2 2 999 21.2 997 21.2 997 21.2
465.tonto 2 439 44.8 439 44.8 439 44.8 2 426 46.2 426 46.2 426 46.2
470.lbm 2 591 46.4 591 46.4 592 46.4 2 591 46.4 591 46.4 592 46.4
481.wrf 2 493 45.4 492 45.4 492 45.4 2 493 45.4 492 45.4 492 45.4
482.sphinx3 2 916 42.6 913 42.6 910 42.8 2 917 42.4 918 42.4 919 42.4

Submit Notes

The config file option 'submit' was used.
 The start command with the /affinity switch was used to bind processes to cores

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   -names:lowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.20111012.html,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.20111012.xml,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings-revC.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Thu Jul 24 00:51:57 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 November 2011.
