| CPU2006 license: | 3 | Test date: | Sep-2011 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Apr-2011 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Aug-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4870 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (64 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel Compiler XE Build 20110803 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

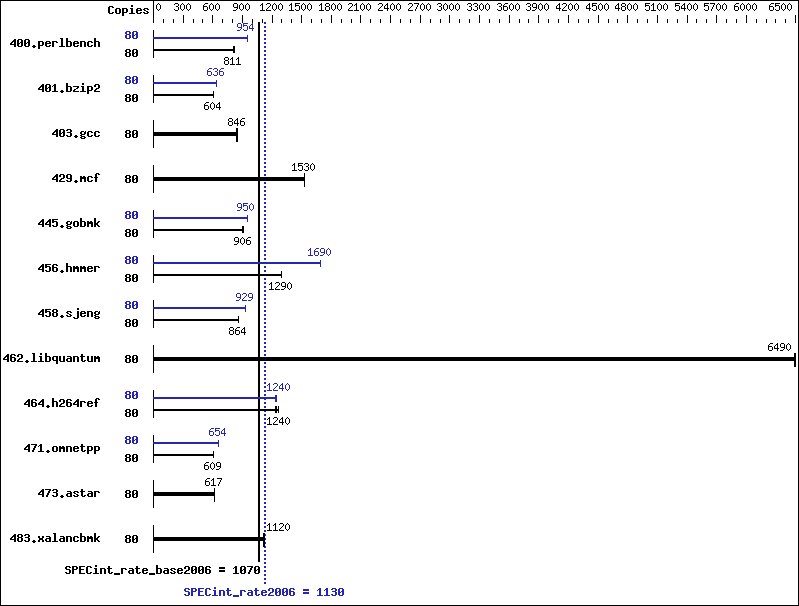

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 80 | 964 | 811 | 959 | 815 | 964 | 811 | 80 | 819 | 954 | 822 | 951 | 818 | 955 |
| 401.bzip2 | 80 | 1279 | 604 | 1276 | 605 | 1277 | 604 | 80 | 1214 | 636 | 1214 | 636 | 1212 | 637 |
| 403.gcc | 80 | 761 | 846 | 765 | 842 | 761 | 847 | 80 | 761 | 846 | 765 | 842 | 761 | 847 |
| 429.mcf | 80 | 477 | 1530 | 477 | 1530 | 477 | 1530 | 80 | 477 | 1530 | 477 | 1530 | 477 | 1530 |
| 445.gobmk | 80 | 929 | 903 | 924 | 908 | 926 | 906 | 80 | 883 | 950 | 884 | 950 | 884 | 949 |
| 456.hmmer | 80 | 578 | 1290 | 577 | 1290 | 578 | 1290 | 80 | 442 | 1690 | 442 | 1690 | 441 | 1690 |
| 458.sjeng | 80 | 1121 | 864 | 1121 | 864 | 1119 | 865 | 80 | 1040 | 931 | 1042 | 929 | 1045 | 927 |
| 462.libquantum | 80 | 256 | 6480 | 256 | 6490 | 255 | 6490 | 80 | 256 | 6480 | 256 | 6490 | 255 | 6490 |
| 464.h264ref | 80 | 1401 | 1260 | 1426 | 1240 | 1428 | 1240 | 80 | 1432 | 1240 | 1428 | 1240 | 1428 | 1240 |
| 471.omnetpp | 80 | 819 | 610 | 820 | 609 | 821 | 609 | 80 | 764 | 654 | 765 | 653 | 765 | 654 |
| 473.astar | 80 | 911 | 617 | 908 | 618 | 910 | 617 | 80 | 911 | 617 | 908 | 618 | 910 | 617 |
| 483.xalancbmk | 80 | 492 | 1120 | 490 | 1130 | 494 | 1120 | 80 | 492 | 1120 | 490 | 1130 | 494 | 1120 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Platform Notes
BIOS configuration: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
General Notes
Stack size set to unlimited using "ulimit -s unlimited"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
