| CPU2006 license: | 3 | Test date: | Oct-2011 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Apr-2011 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Aug-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4870 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (64 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 2 x 146 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++/Fortran: Version 12.1.0.225 of Intel Compiler XE Build 20110803 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

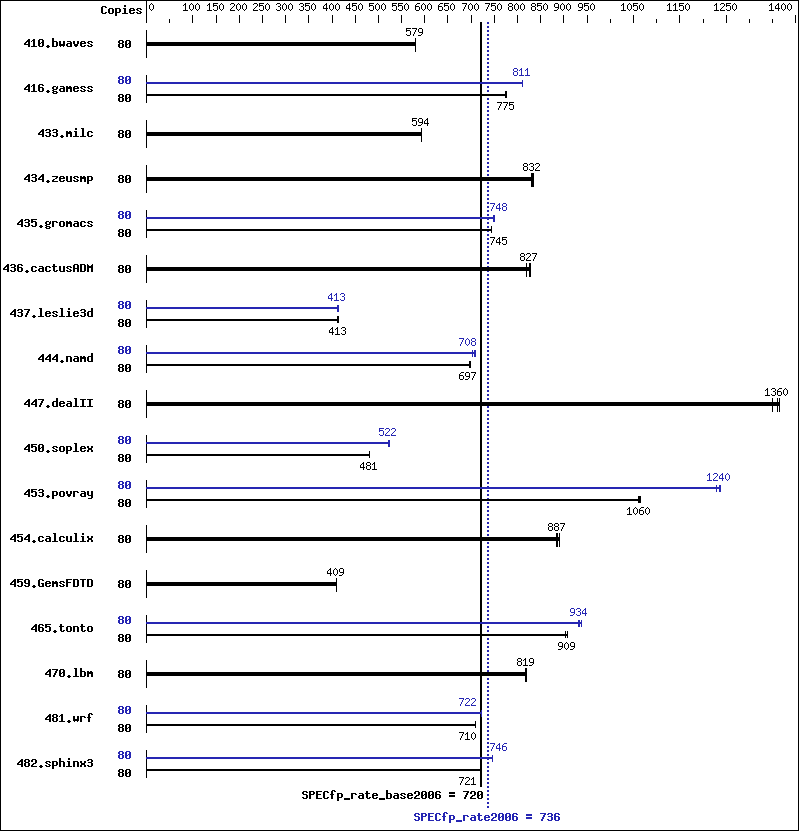

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 80 | 1876 | 580 | 1877 | 579 | 1878 | 579 | 80 | 1876 | 580 | 1877 | 579 | 1878 | 579 |
| 416.gamess | 80 | 2020 | 775 | 2020 | 776 | 2024 | 774 | 80 | 1933 | 810 | 1930 | 811 | 1932 | 811 |
| 433.milc | 80 | 1237 | 594 | 1238 | 593 | 1237 | 594 | 80 | 1237 | 594 | 1238 | 593 | 1237 | 594 |
| 434.zeusmp | 80 | 873 | 834 | 875 | 832 | 878 | 829 | 80 | 873 | 834 | 875 | 832 | 878 | 829 |
| 435.gromacs | 80 | 767 | 745 | 767 | 745 | 769 | 743 | 80 | 763 | 748 | 763 | 748 | 761 | 750 |
| 436.cactusADM | 80 | 1154 | 828 | 1156 | 827 | 1168 | 819 | 80 | 1154 | 828 | 1156 | 827 | 1168 | 819 |
| 437.leslie3d | 80 | 1821 | 413 | 1819 | 413 | 1820 | 413 | 80 | 1823 | 413 | 1821 | 413 | 1821 | 413 |
| 444.namd | 80 | 919 | 698 | 920 | 697 | 921 | 697 | 80 | 906 | 708 | 906 | 708 | 912 | 704 |
| 447.dealII | 80 | 673 | 1360 | 678 | 1350 | 671 | 1360 | 80 | 673 | 1360 | 678 | 1350 | 671 | 1360 |
| 450.soplex | 80 | 1386 | 481 | 1387 | 481 | 1386 | 481 | 80 | 1275 | 523 | 1277 | 522 | 1278 | 522 |
| 453.povray | 80 | 401 | 1060 | 400 | 1070 | 400 | 1060 | 80 | 346 | 1230 | 344 | 1240 | 344 | 1240 |
| 454.calculix | 80 | 744 | 887 | 742 | 890 | 747 | 884 | 80 | 744 | 887 | 742 | 890 | 747 | 884 |
| 459.GemsFDTD | 80 | 2075 | 409 | 2076 | 409 | 2075 | 409 | 80 | 2075 | 409 | 2076 | 409 | 2075 | 409 |
| 465.tonto | 80 | 866 | 909 | 866 | 909 | 870 | 904 | 80 | 843 | 934 | 839 | 939 | 845 | 931 |
| 470.lbm | 80 | 1342 | 819 | 1342 | 819 | 1346 | 817 | 80 | 1342 | 819 | 1342 | 819 | 1346 | 817 |
| 481.wrf | 80 | 1259 | 710 | 1261 | 709 | 1259 | 710 | 80 | 1238 | 722 | 1239 | 721 | 1238 | 722 |
| 482.sphinx3 | 80 | 2162 | 721 | 2163 | 721 | 2164 | 721 | 80 | 2091 | 746 | 2091 | 746 | 2091 | 746 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
BIOS configuration: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006/smartheap:/cpu2006/ic12.1-libs/ia32/:/cpu2006/ic12.1-libs/intel64" Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages disabled with: echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 482.sphinx3: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-mem-layout-trans=3 -unroll2 |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
