| CPU2006 license: | 2929 | Test date: | Sep-2011 |
|---|---|---|---|
| Test sponsor: | ScaleMP | Hardware Availability: | Aug-2010 |
| Tested by: | ScaleMP | Software Availability: | Sep-2011 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 6172 |
| CPU Characteristics: | |
| CPU MHz: | 2100 |
| FPU: | Integrated |
| CPU(s) enabled: | 192 cores, 16 chips, 12 cores/chip |
| CPU(s) orderable: | 2 to 64 boards with 2 to 4 chips per board |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
| Other Cache: | 60 GB I+D off chip per system |
| Memory: | 512 GB (8 x 16 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 8 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.5 (Tikanga) Kernel 2.6.32.46-5.vSMP |
| Compiler: | C/C++/Fortran: Version 4.2.4 of Open64 Compiler Suite |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Hoard (libhoard) 3.8, 32-bit Library for Linux ScaleMP vSMP Foundation 3.5.284, released Sep. 13, 2011 |

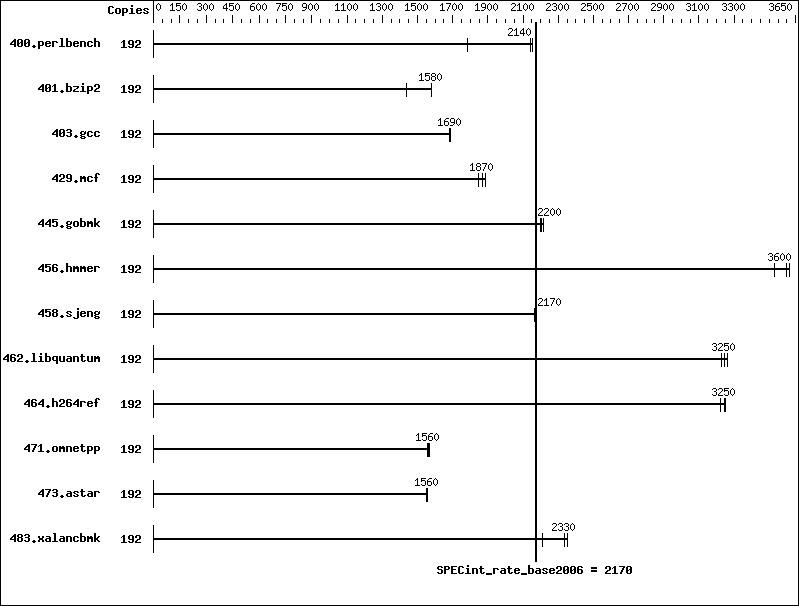

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 192 | 1051 | 1780 | 875 | 2140 | 870 | 2160 | |||||||
| 401.bzip2 | 192 | 1287 | 1440 | 1174 | 1580 | 1173 | 1580 | |||||||
| 403.gcc | 192 | 917 | 1690 | 916 | 1690 | 918 | 1680 | |||||||
| 429.mcf | 192 | 928 | 1890 | 936 | 1870 | 947 | 1850 | |||||||
| 445.gobmk | 192 | 915 | 2200 | 909 | 2220 | 915 | 2200 | |||||||
| 456.hmmer | 192 | 507 | 3530 | 498 | 3600 | 495 | 3620 | |||||||
| 458.sjeng | 192 | 1068 | 2170 | 1068 | 2170 | 1073 | 2170 | |||||||
| 462.libquantum | 192 | 1220 | 3260 | 1225 | 3250 | 1233 | 3230 | |||||||
| 464.h264ref | 192 | 1318 | 3220 | 1307 | 3250 | 1308 | 3250 | |||||||
| 471.omnetpp | 192 | 764 | 1570 | 770 | 1560 | 768 | 1560 | |||||||
| 473.astar | 192 | 866 | 1560 | 868 | 1550 | 866 | 1560 | |||||||
| 483.xalancbmk | 192 | 600 | 2210 | 563 | 2350 | 568 | 2330 | |||||||
Submit Notes
The config file option 'submit' was used. The taskset command was used to bind processes to cores.
Operating System Notes
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit
Platform Notes
ScaleMP
vSMP Foundation: 3.5.284, released Sep. 13, 2011
See http://www.scalemp.com
Hardware Details:
System was aggregated using 8 X SuperMicro AS-2122TG-HIBQRF servers.
The servers were connected with Melanox InfiniBand QDR and a
QDR switch.
General Notes
The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on RHEL5.5 with binutils 2.18
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
