SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL980 G7 (2.4 GHz, Intel Xeon E7-4870)

CPU2006 license: 3 Test date: Sep-2011
Test sponsor: Hewlett-Packard Company Hardware Availability: Aug-2011
Tested by: Hewlett-Packard Company Software Availability: Jul-2011

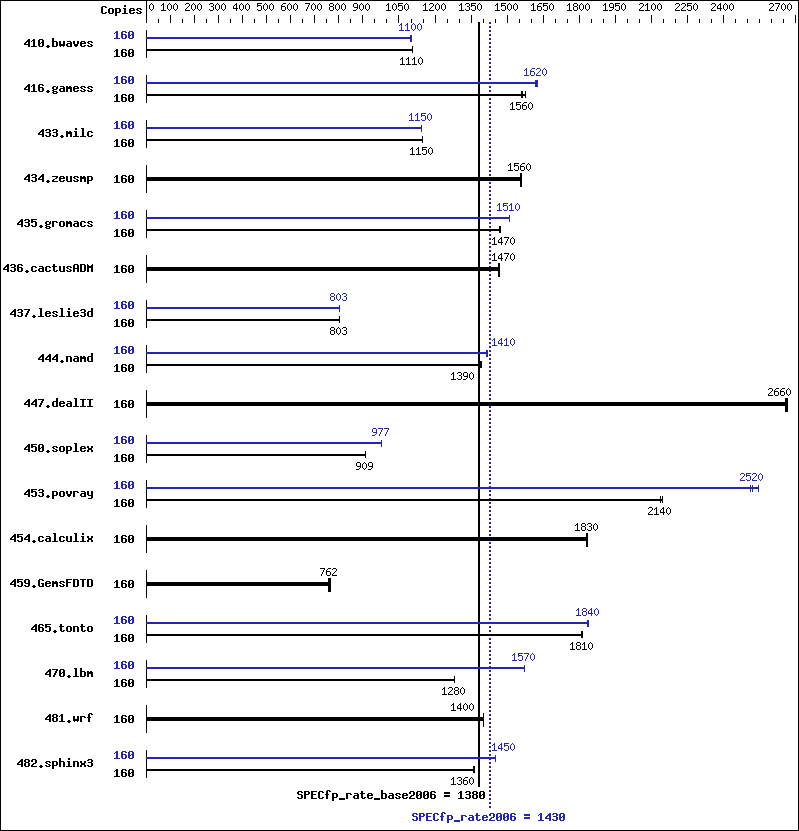

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-4870
CPU Characteristics: Intel Turbo Boost Technology up to 2.8 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 80 cores, 8 chips, 10 cores/chip, 2 threads/core
CPU(s) orderable: 4, 8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (128 x 8 GB 2Rx4 PC3L-10600R-9, ECC,
running at 1066 MHz)
Disk Subsystem: 1 x 120 GB SATA SSD
Other Hardware: 512 MB FBWC Module for P410i SmartArray
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) SP1,
Kernel 2.6.32.12-0.7-default
Compiler: C/C++: Version 12.0.5 of Intel C++ Composer
XE 2011 for Linux Build 20110719;
Fortran: Version 12.0.5 of Intel Fortran Composer
XE 2011 for Linux Build 20110719
Auto Parallel: No
File System: tmpfs
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 160 1963 1110 1969 1100 1965 1110 160 1977 1100 1973 1100 1980 1100
416.gamess 160 2006 1560 1990 1570 2008 1560 160 1931 1620 1934 1620 1927 1630
433.milc 160 1278 1150 1278 1150 1277 1150 160 1283 1150 1283 1150 1283 1140
434.zeusmp 160 935 1560 937 1550 936 1560 160 935 1560 937 1550 936 1560
435.gromacs 160 776 1470 778 1470 775 1470 160 756 1510 757 1510 756 1510
436.cactusADM 160 1303 1470 1304 1470 1306 1460 160 1303 1470 1304 1470 1306 1460
437.leslie3d 160 1873 803 1872 803 1872 803 160 1871 804 1874 803 1874 803
444.namd 160 921 1390 924 1390 921 1390 160 909 1410 909 1410 904 1420
447.dealII 160 687 2660 687 2670 688 2660 160 687 2660 687 2670 688 2660
450.soplex 160 1468 909 1468 909 1467 909 160 1366 977 1366 977 1366 977
453.povray 160 398 2140 397 2140 398 2140 160 335 2540 339 2510 338 2520
454.calculix 160 720 1830 719 1840 721 1830 160 720 1830 719 1840 721 1830
459.GemsFDTD 160 2220 765 2239 758 2228 762 160 2220 765 2239 758 2228 762
465.tonto 160 868 1810 869 1810 870 1810 160 856 1840 857 1840 858 1840
470.lbm 160 1717 1280 1719 1280 1717 1280 160 1399 1570 1400 1570 1399 1570
481.wrf 160 1276 1400 1277 1400 1277 1400 160 1276 1400 1277 1400 1277 1400
482.sphinx3 160 2291 1360 2289 1360 2288 1360 160 2150 1450 2150 1450 2151 1450

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 I/O scheduler for the device holding the filesystem set to "noop"
 SPEC files placed in /dev/shm/cpu2006 with /dev/shm
 mounted as tmpfs with mpol=interleave, size=500G
 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 Hugepages were not configured on the system

Platform Notes

 BIOS Settings:
 Power Regulator set to HP Static High Performance Mode
 Sysinfo program /dev/shm/cpu2006/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ 8787f7622badcf24e01c368b1db4377c
 running on s9 Fri Sep  9 19:19:07 2011

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7- 4870 @ 2.40GHz
       8 "physical id"s (chips)
       160 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 10
       siblings  : 20
       physical 0: cores 0 1 2 3 4 5 6 7 8 9
       physical 1: cores 0 1 2 3 4 5 6 7 8 9
       physical 2: cores 0 1 2 3 4 5 6 7 8 9
       physical 3: cores 0 1 2 3 4 5 6 7 8 9
       physical 4: cores 0 1 2 3 4 5 6 7 8 9
       physical 5: cores 0 1 2 3 4 5 6 7 8 9
       physical 6: cores 0 1 2 3 4 5 6 7 8 9
       physical 7: cores 0 1 2 3 4 5 6 7 8 9
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       1040205340 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 1

 uname -a:
    Linux s9 2.6.32.12-0.7-default #1 SMP 2010-05-20 11:14:20 +0200 x86_64 x86_64
    x86_64 GNU/Linux

 run-level 3 Sep 9 00:49 last=S

 SPEC is set to: /dev/shm/cpu2006
    Filesystem    Type    Size  Used Avail Use% Mounted on
    tmpfs        tmpfs    497G  138G  359G  28% /dev/shm

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -ansi-alias

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -ansi-alias

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -ansi-alias

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
482.sphinx3:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -static   -auto-ilp32
470.lbm:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3   -ansi-alias   -opt-prefetch   -static   -auto-ilp32
482.sphinx3:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2

C++ benchmarks:

444.namd:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3   -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT
453.povray:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT

Fortran benchmarks:

410.bwaves:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -static
416.gamess:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-   -static
434.zeusmp:  basepeak = yes
437.leslie3d:  -xSSE4.2   -ipo   -O3   -no-prec-div   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
459.GemsFDTD:  basepeak = yes
465.tonto:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT

Benchmarks using both Fortran and C:

435.gromacs:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -static   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.20111012.html,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-compiler-flags.html,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-platform-flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.20111012.xml,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-compiler-flags.xml,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-platform-flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 01:40:04 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 11 October 2011.
