| CPU2006 license: | 9006 | Test date: | Aug-2011 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jun-2011 |
| Tested by: | NEC Corporation | Software Availability: | Mar-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1270 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x 160 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64, Version 12.0.3.174 Build 20110309 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

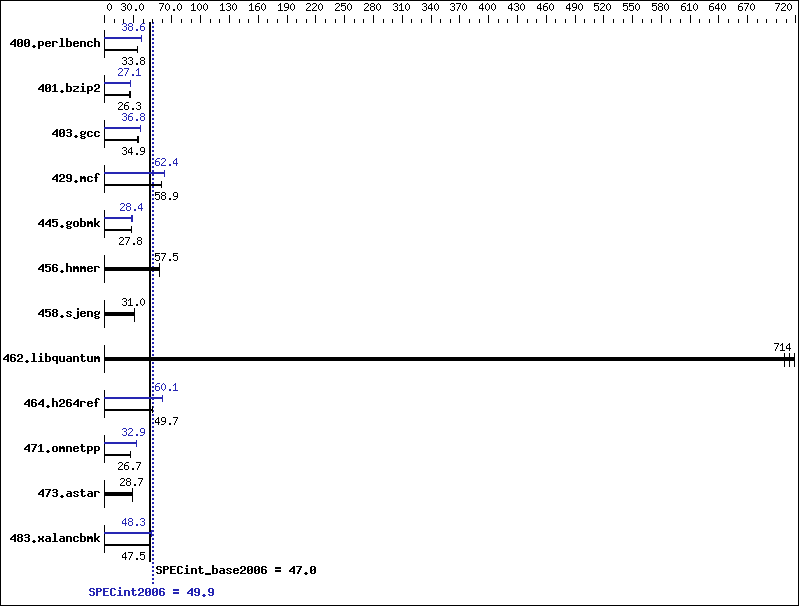

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 290 | 33.7 | 287 | 34.0 | 289 | 33.8 | 253 | 38.6 | 253 | 38.7 | 253 | 38.6 |
| 401.bzip2 | 365 | 26.4 | 367 | 26.3 | 367 | 26.3 | 357 | 27.0 | 356 | 27.1 | 356 | 27.1 |
| 403.gcc | 234 | 34.4 | 229 | 35.1 | 231 | 34.9 | 219 | 36.8 | 219 | 36.8 | 219 | 36.8 |
| 429.mcf | 155 | 58.9 | 155 | 59.0 | 155 | 58.7 | 146 | 62.3 | 145 | 62.7 | 146 | 62.4 |
| 445.gobmk | 377 | 27.8 | 377 | 27.8 | 377 | 27.8 | 369 | 28.4 | 369 | 28.4 | 370 | 28.4 |
| 456.hmmer | 162 | 57.5 | 162 | 57.4 | 162 | 57.5 | 162 | 57.5 | 162 | 57.4 | 162 | 57.5 |
| 458.sjeng | 391 | 31.0 | 391 | 30.9 | 391 | 31.0 | 391 | 31.0 | 391 | 30.9 | 391 | 31.0 |
| 462.libquantum | 29.2 | 709 | 29.0 | 714 | 28.8 | 718 | 29.2 | 709 | 29.0 | 714 | 28.8 | 718 |
| 464.h264ref | 441 | 50.1 | 446 | 49.6 | 445 | 49.7 | 369 | 60.0 | 367 | 60.4 | 368 | 60.1 |
| 471.omnetpp | 232 | 26.9 | 235 | 26.6 | 234 | 26.7 | 190 | 32.9 | 190 | 32.9 | 190 | 33.0 |
| 473.astar | 244 | 28.7 | 245 | 28.6 | 244 | 28.8 | 244 | 28.7 | 245 | 28.6 | 244 | 28.8 |
| 483.xalancbmk | 145 | 47.5 | 145 | 47.5 | 147 | 47.0 | 143 | 48.2 | 143 | 48.3 | 143 | 48.3 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 1800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Hyper-Threading Technology: Disabled
General Notes
OMP_NUM_THREADS set to number of cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib64 -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
