| CPU2006 license: | 001176 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Jan-2010 |
| Tested by: | Supermicro | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3460 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx8 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 160 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

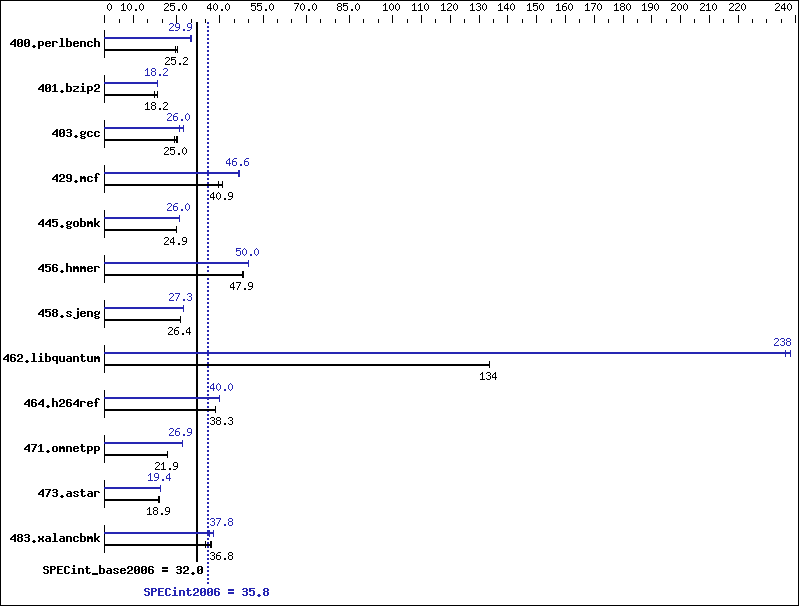

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 387 | 25.2 | 385 | 25.4 | 397 | 24.6 | 327 | 29.9 | 326 | 30.0 | 327 | 29.9 |
| 401.bzip2 | 529 | 18.2 | 559 | 17.3 | 530 | 18.2 | 529 | 18.2 | 529 | 18.2 | 530 | 18.2 |
| 403.gcc | 322 | 25.0 | 334 | 24.1 | 319 | 25.3 | 310 | 26.0 | 309 | 26.0 | 296 | 27.2 |
| 429.mcf | 222 | 41.0 | 223 | 40.9 | 232 | 39.4 | 196 | 46.6 | 196 | 46.5 | 195 | 46.7 |
| 445.gobmk | 420 | 25.0 | 421 | 24.9 | 420 | 24.9 | 404 | 26.0 | 405 | 25.9 | 404 | 26.0 |
| 456.hmmer | 196 | 47.7 | 195 | 47.9 | 194 | 48.1 | 187 | 50.0 | 187 | 50.0 | 187 | 50.0 |
| 458.sjeng | 458 | 26.4 | 458 | 26.4 | 458 | 26.4 | 442 | 27.4 | 443 | 27.3 | 443 | 27.3 |
| 462.libquantum | 155 | 134 | 155 | 134 | 155 | 134 | 87.0 | 238 | 87.7 | 236 | 87.0 | 238 |
| 464.h264ref | 578 | 38.3 | 577 | 38.4 | 577 | 38.3 | 553 | 40.0 | 553 | 40.0 | 554 | 40.0 |
| 471.omnetpp | 286 | 21.8 | 285 | 21.9 | 286 | 21.9 | 233 | 26.9 | 232 | 26.9 | 231 | 27.0 |
| 473.astar | 372 | 18.9 | 373 | 18.8 | 371 | 18.9 | 361 | 19.4 | 362 | 19.4 | 362 | 19.4 |
| 483.xalancbmk | 187 | 37.0 | 187 | 36.8 | 197 | 35.0 | 183 | 37.8 | 183 | 37.8 | 189 | 36.5 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro CSE-111T-560CB chassis. The system includes a PWS-562-1H power supply, SNK-P0046P heatsink, and 3 FAN-0106L4 cooling fans.
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
